Canon GP405 - Sequence of Operations (Original Exposure System)

CHAPTER 3 EXPOSURE SYSTEM
3-2
COPYRIGHT © 1999 CANON INC. CANON 405/335 REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
B. Sequence of Operations (original exposure system)

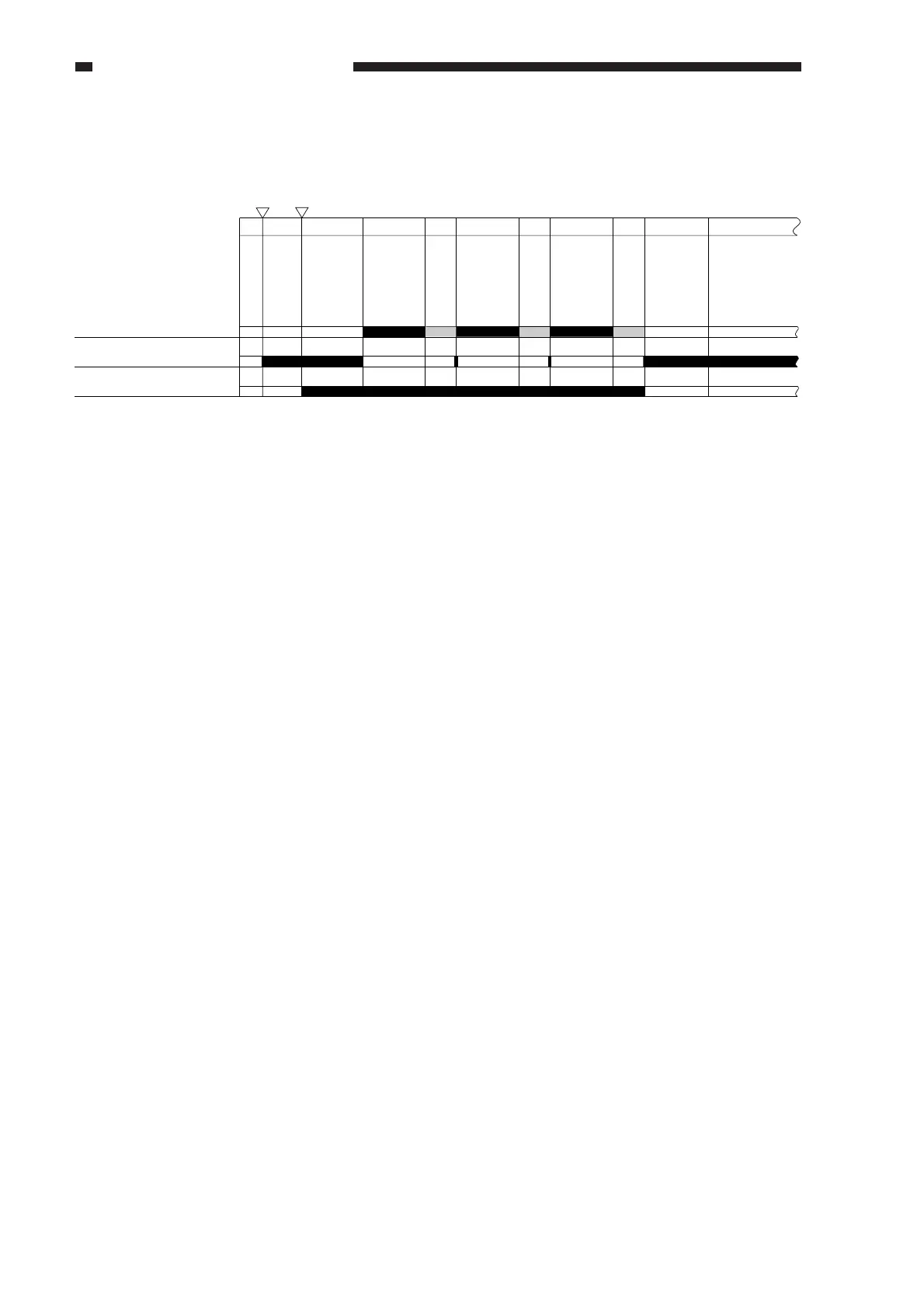

Figure 3-101
Scanner motor (M3)
Scanner HP sensor (PS1)
Scanning lamp (FL1)
INTR
SCAN
SCAN
SCAN
LSTR STBY
STBY
SLEEP
Forward
Reverse
Copy Start key ON
Control panel power switch ON
