7-43
CHAPTER 7 PICK-UP/FEEDING SYSTEM
K. Detecting Jams
1. Outline
As man as nine paper sensors are used (Figure 7-142) to make sure that paper is moving
through the machine normally.
The presence/absence of paper is checked at such times as programmed in the microprocessor
(DC controller) on the image processor PCB; upon detection of a jam, the main motor is stopped
and a Jam message will be indicated on the control panel.

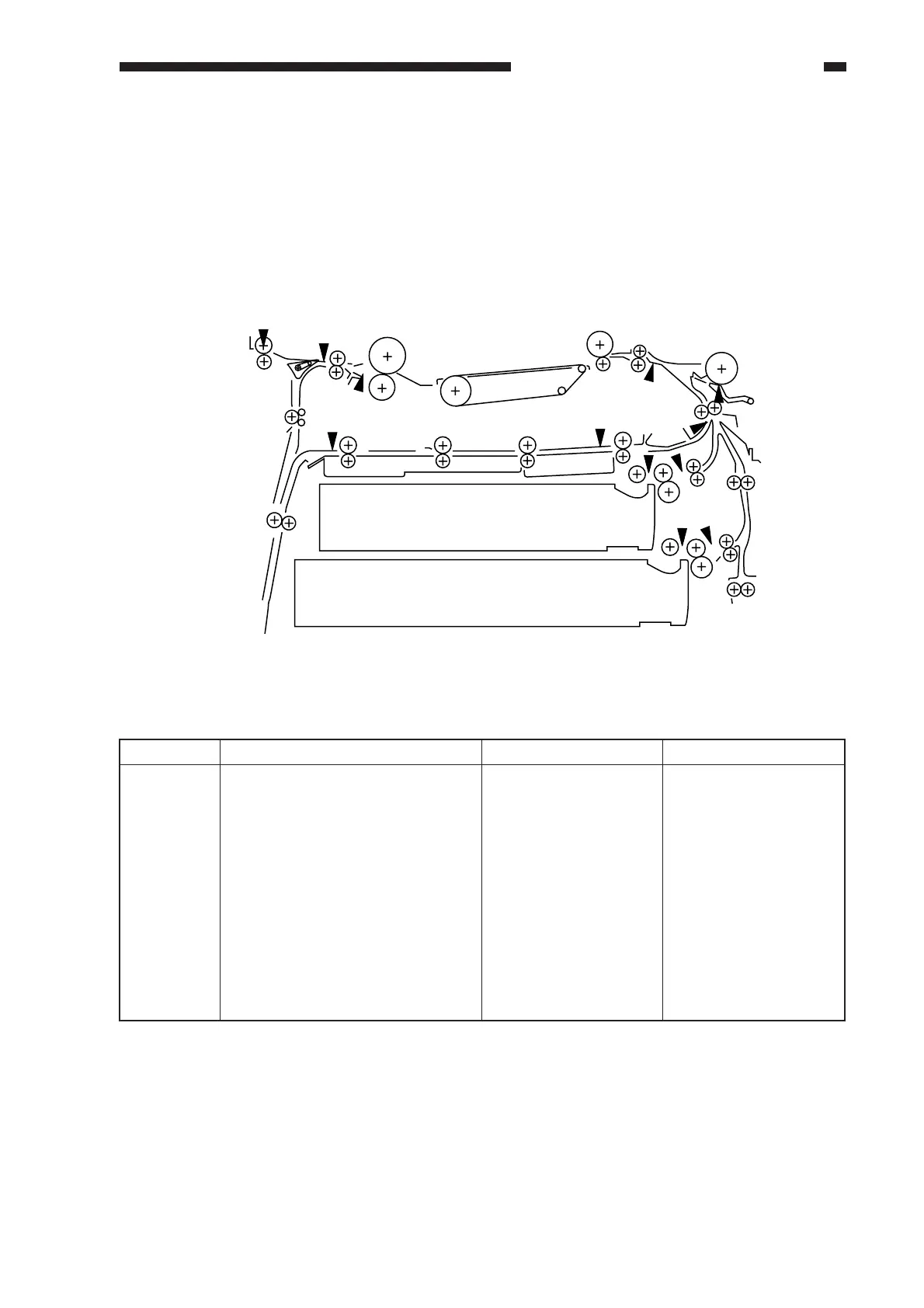

Figure 7-142
* Pin No. of the signal line on the DC controller PCB.
Table 7-110
PS3
PS4
PS6
PS7
PS8
PS9
PS11
PS18
PS19
PS40
Name
Multifeeder paper sensor
Pre-registration paper sensor
Reversing assembly inlet sensor
Delivery sensor
Duplexing assembly inlet sensor
Vertical path paper sensor
Re-pick up paper sensor
Cassette 1 pick-up sensor
Cassette 2 pick-up sensor
Fixing assembly outlet sensor
Signal
PS3S
PS4S
PS6S
PS7S
PS8S
PS9S
PS11S
PS18S
PS19S
PS40S
Pin No.*
J108-B2
J108-B11
J106-2
J107-2
J114-B2
J114-B5
J108-B8
J108-A17
J108-A18
J114-A2
PS3
PS11
PS4
PS9
PS8
PS6
PS40
PS7
Q1604
Q1605
PS18
PS19
