CHAPTER 8 PAPER DECK
8. Position of the Deck Pick-Up Roller
Releasing Solenoid
Before removing the deck pick-up roller
releasing solenoid [1] from the support plate,
take note of the positions of the two fixing
screws [2] on the solenoid; or, mark the
position of the solenoid on the support plate
with a scriber.
If you are replacing the solenoid on its
own, be sure to secure it in its initial position.

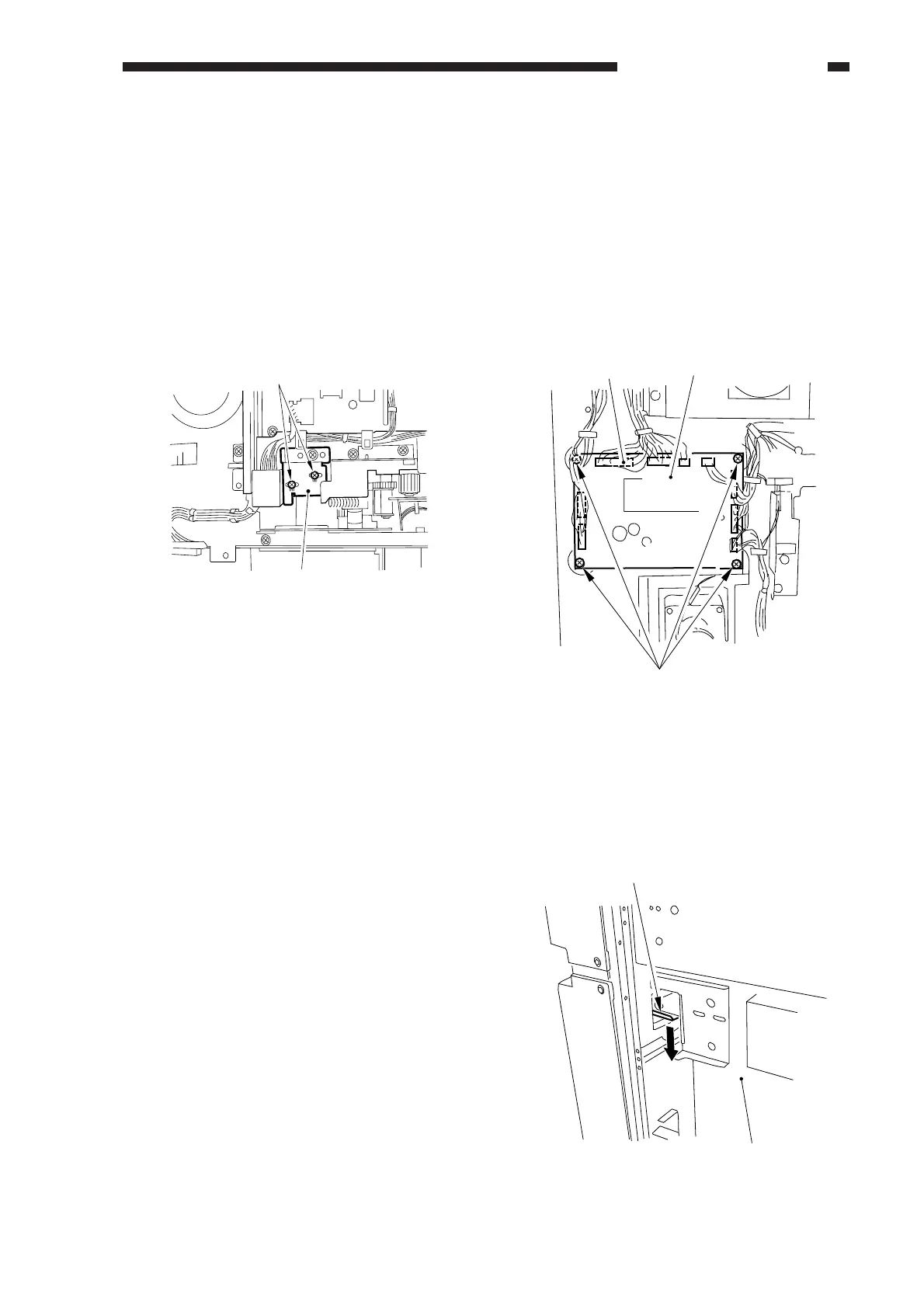

Figure 8-346
E. Electrical System
1. Removing the Side Deck Driver
PCB
1) Disconnect the deck from the copier, and
remove the six screws; then, detach the
rear cover.
2) Disconnect the nine connectors [1], and
remove the two screws; then, remove the
deck driver PCB [3].
Figure 8-347
2. Removing the Open Switch PCB
1)
Disconnect the deck from the copier, and
push down the latch plate [2] of the
compartment [1] to open the compartment.
Figure 8-348
