CHAPTER 7 PICK-UP/FEEDING SYSTEM
2. Sequence of Operations

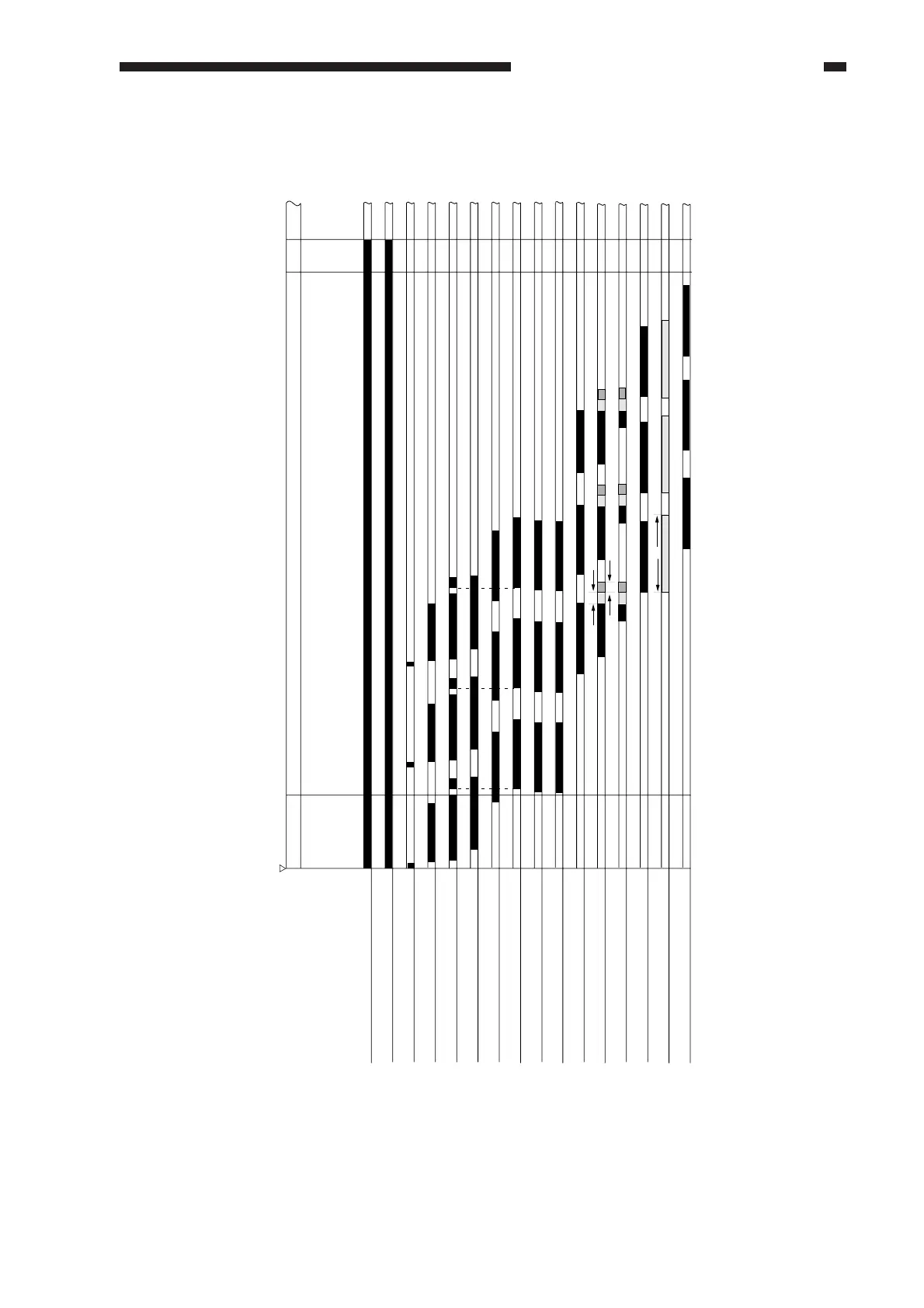

Figure 7-130 Printer Operation
INTR2
PRINT
LSTR
*
**
* : Double-speed rotation ** : Reversal double-speed rotation
*
Main motor (M1)
Fixing motor (M2)
Cassette pick-up solenoid (SL1)
Pick-up motor (M5)
Vertical path roll clutch (CL3)
Vertical path roller paper sensor (PS11)
Pre-registration paper sensor (PS4)
Registration clutch (CL1)
Developing clutch (CL4)
Laser exposure
Internal delivery sensor (PS6)
Delivery reversal motor (M7)
Duplexing reversal motor (M10)
Duplexing assembly inlet sensor (PS8)
Lower feeder motor (M6)
Re-pick up sensor (PS9)
Copy Start key ON
To Next Page
