COPYRIGHT © 1999 CANON INC. CANON 405/335 REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
7-69
CHAPTER 7 PICK-UP/FEEDING SYSTEM
5) Remove the two screws, and detach the
two multifeeder unit mounts [5].
6) Disconnect the connector [7], and detach
the vertical path assembly.

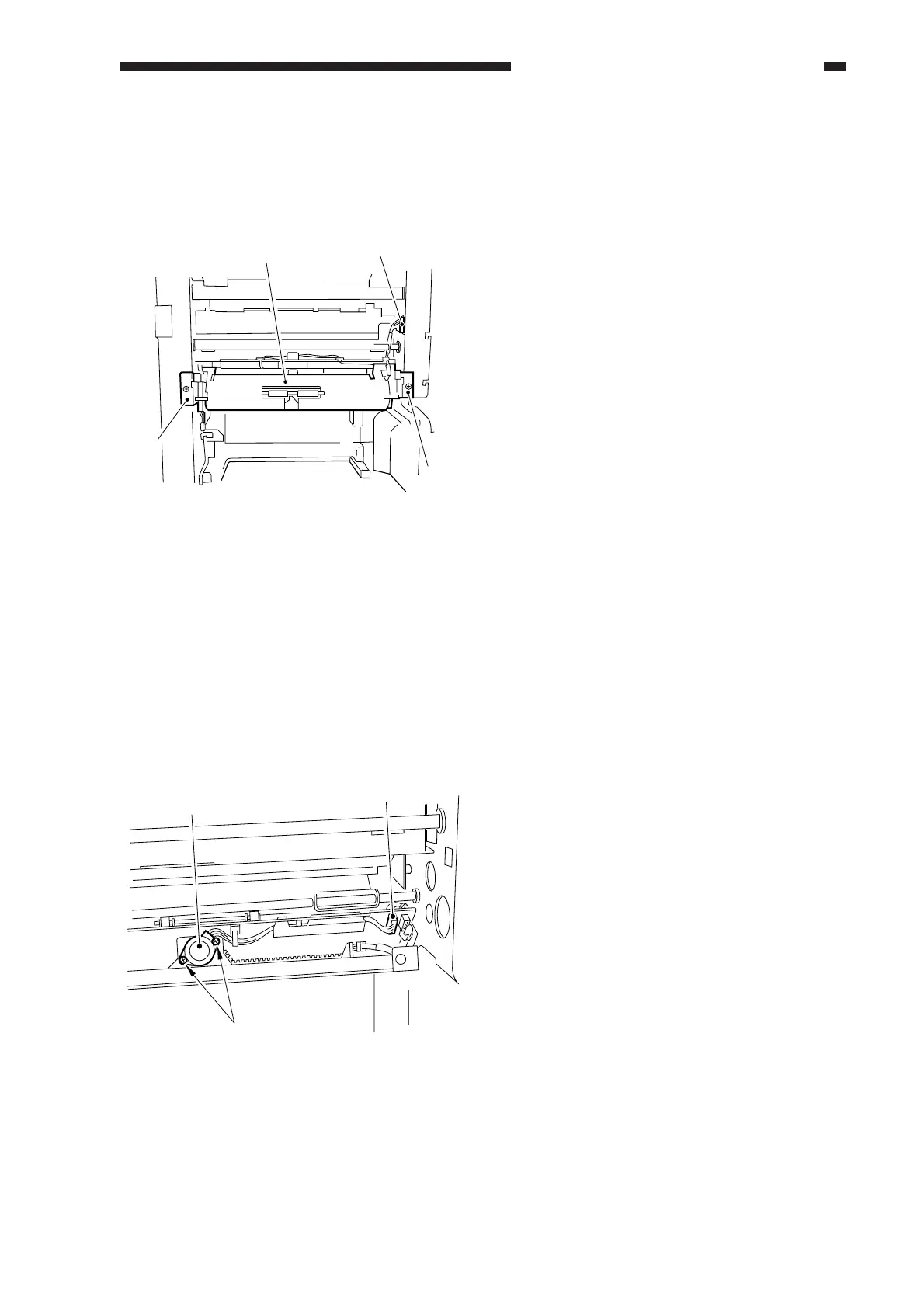

Figure 7-258
2. Removing the Horizontal Registration
Motor
1) Remove the following:
• Pick-up unit (p. 4-19.)
• Pick-up drive unit (p. 4-16)
• Vertical path unit (p. 4-17)
2) Remove the two screws [2], and
disconnect the connector [3]; then, detach
the horizontal registration motor [1].
Figure 7-259
[5]
[7]
[6]
[6]
[1]
[3]
[2]
