CHAPTER 8 PAPER DECK
8-10
COPYRIGHT © 1999 CANON INC. CANON 405/335 REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)

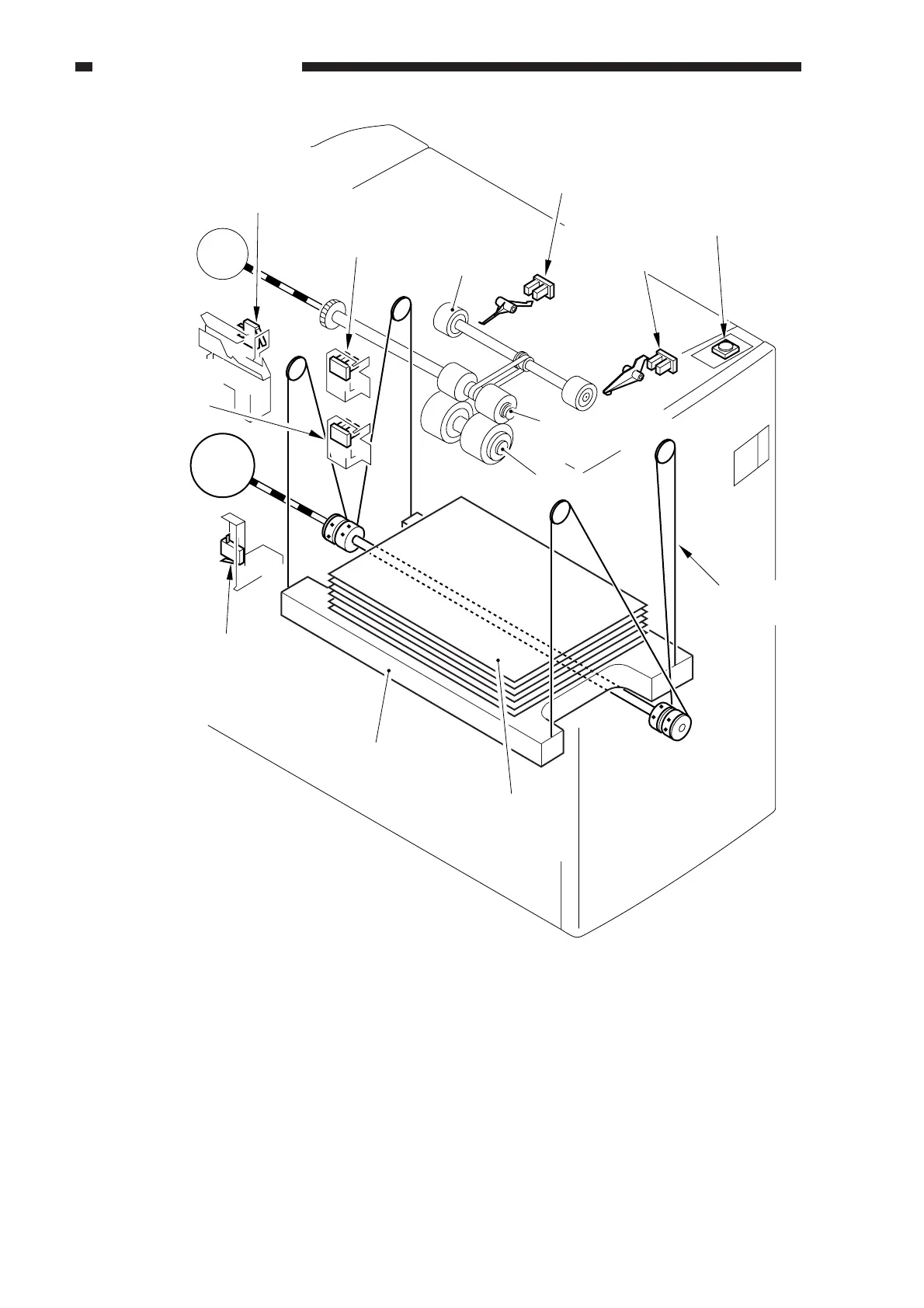

Figure 8-106
M102
Copy paper
M101
Deck pick-up roller
Deck pick-up/feeding roller
Deck separation roller
Lifter
Deck lifter motor
Deck main motor
Deck open detecting
switch (SW101)
Deck lifter position
sensor (PS104)
Deck lifter upper
limit sensor (PS103)
Deck open switch
(SW100)
Deck lifter lower limit
detecting switch (SW102)
Deck lifter cable
Deck paper supply
position sensor
(PS107)
Deck paper
level sensor
(PS108)
