8-19
CHAPTER 8 PAPER DECK
The copiers' DC-CPU identifies a jam under the following conditions:
1. Paper is blocking the deck feed sensor (PS106) when the copier is turned on, at the end of
the wait-up state, or during the standby state.

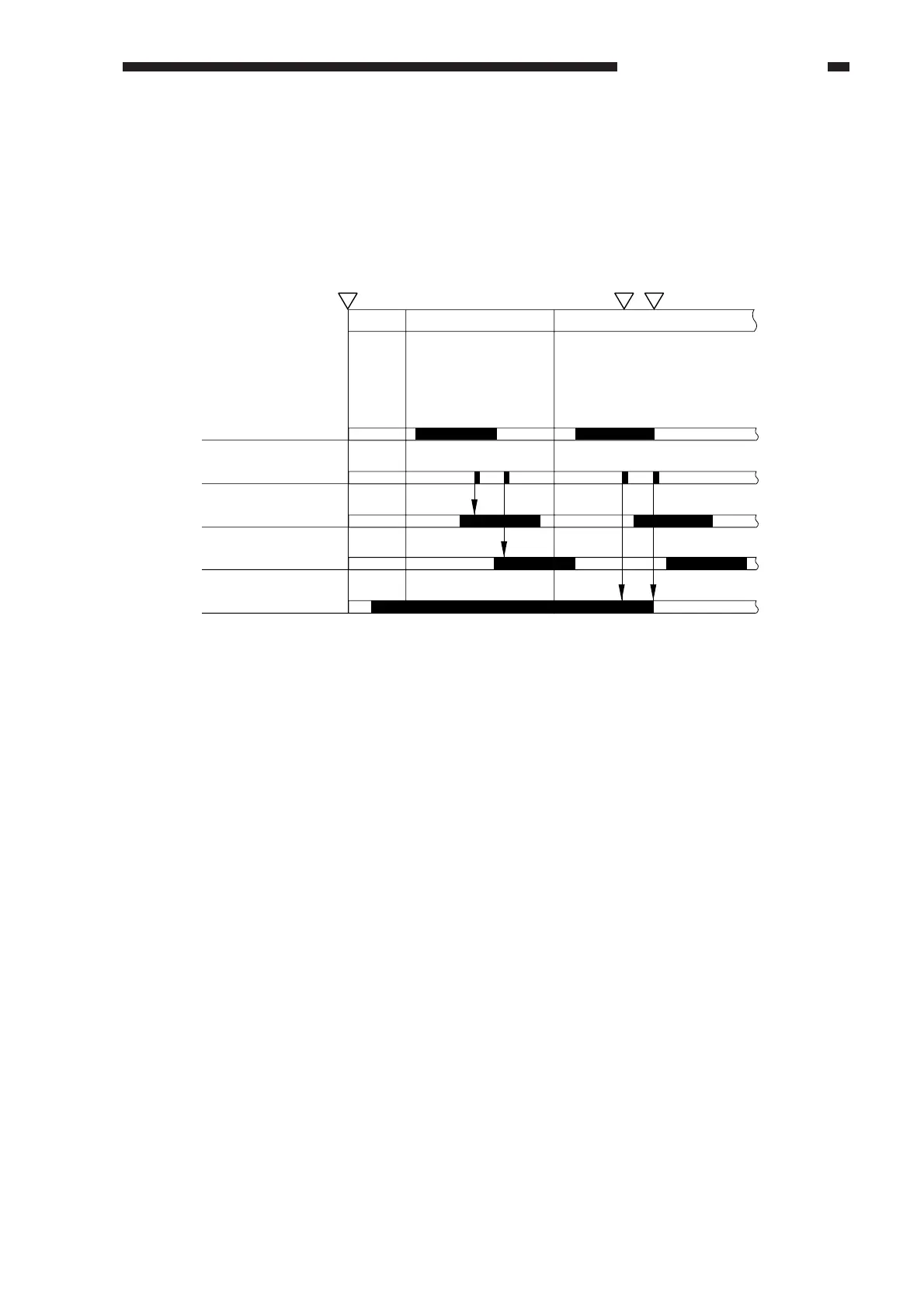

2. Deck Pick-Up/Vertical Path Delay Jam
Figure 8-202
Copy Start key
ON
Jam indicator
INTR
SCAN
PRINT
Deck pick-up clutch
(CL102)
Jam check
Deck pick-up sensor
(PS101)
Deck feed sensor
(PS106)
Deck main motor
(M101)
Normal Error
To Next Page
