CHAPTER 8 PAPER DECK
4) Remove the four screws [5], and detach
the deck [6] from the deck mount [7].

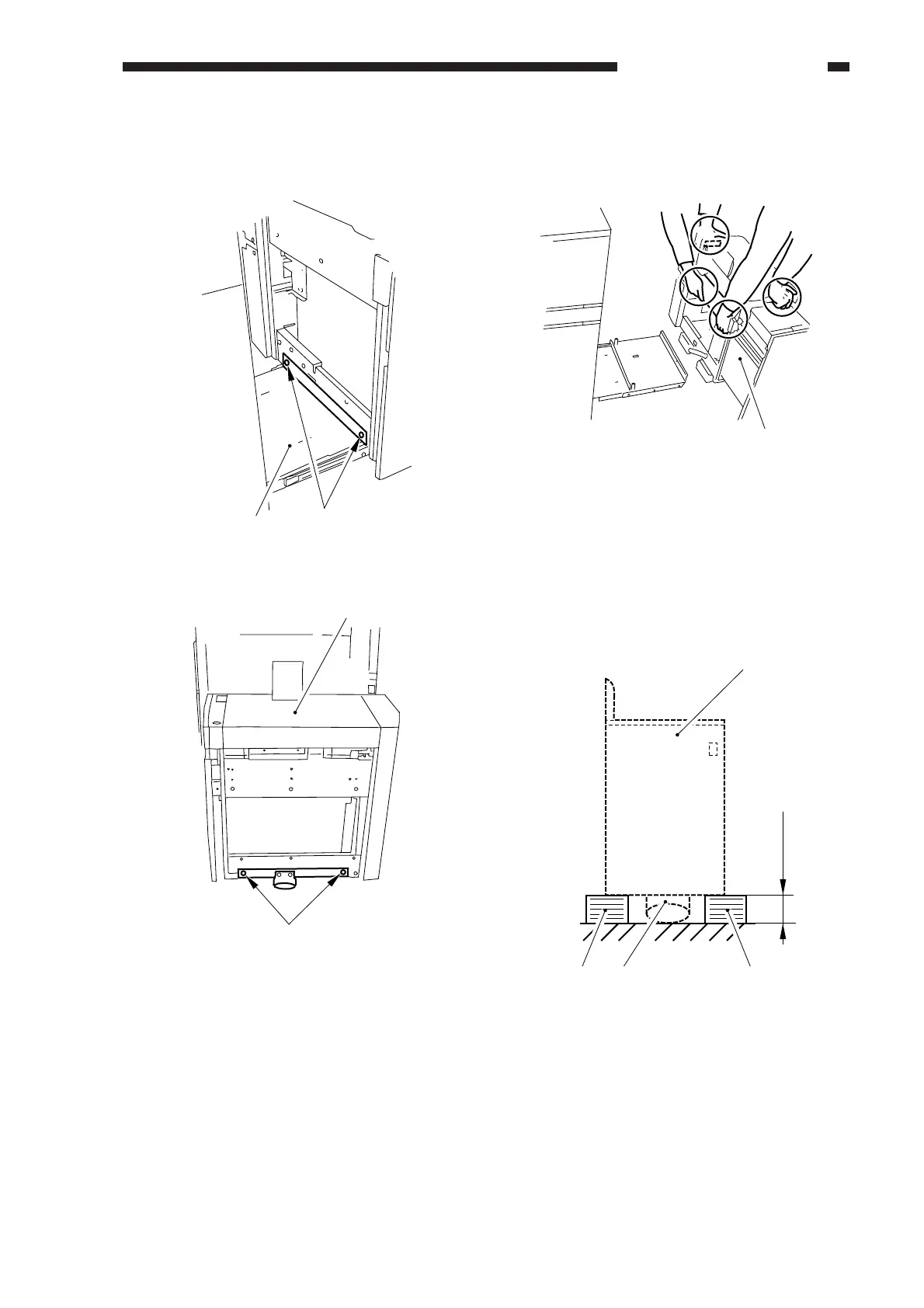

Figure 8-313
5) Holding the deck [8] as shown, place it on
the stack of paper prepared in step 1).
Figure 8-315
Figure 8-314
2. Removing the Compartment
1) Place a stack of copy paper [3] (about [8]
cm high) on the floor for the deck [2] (to
prevent deformation of the roll support
plate [1]).
(left)
[5]
[7]
(right)
[6]
[5]
[8]
8 cm (approx.)
[2]
[3][1][3]
