CHAPTER 1 GENERAL DESCRIPITON
1-10
COPYRIGHT
©
1999 CANON INC. CANON 405/335 REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
[1] Delivery assembly cover
[2] Control panel
[3] Copyboard glass
[4] Developing assembly releasing lever
[5] Developing assembly
[6] Feeding assembly releasing lever
[7] Drum unit
[8] Service documentation case
[9] Door switch assembly
[10] Static eliminator cleaning tool
[11] Total copy counter
[12] Downloading connector (bi-Centronics)
[13] Downloading switch
Left: for downloading
Right: for copying
[14] LCD contrast adjustment
[15] Not used

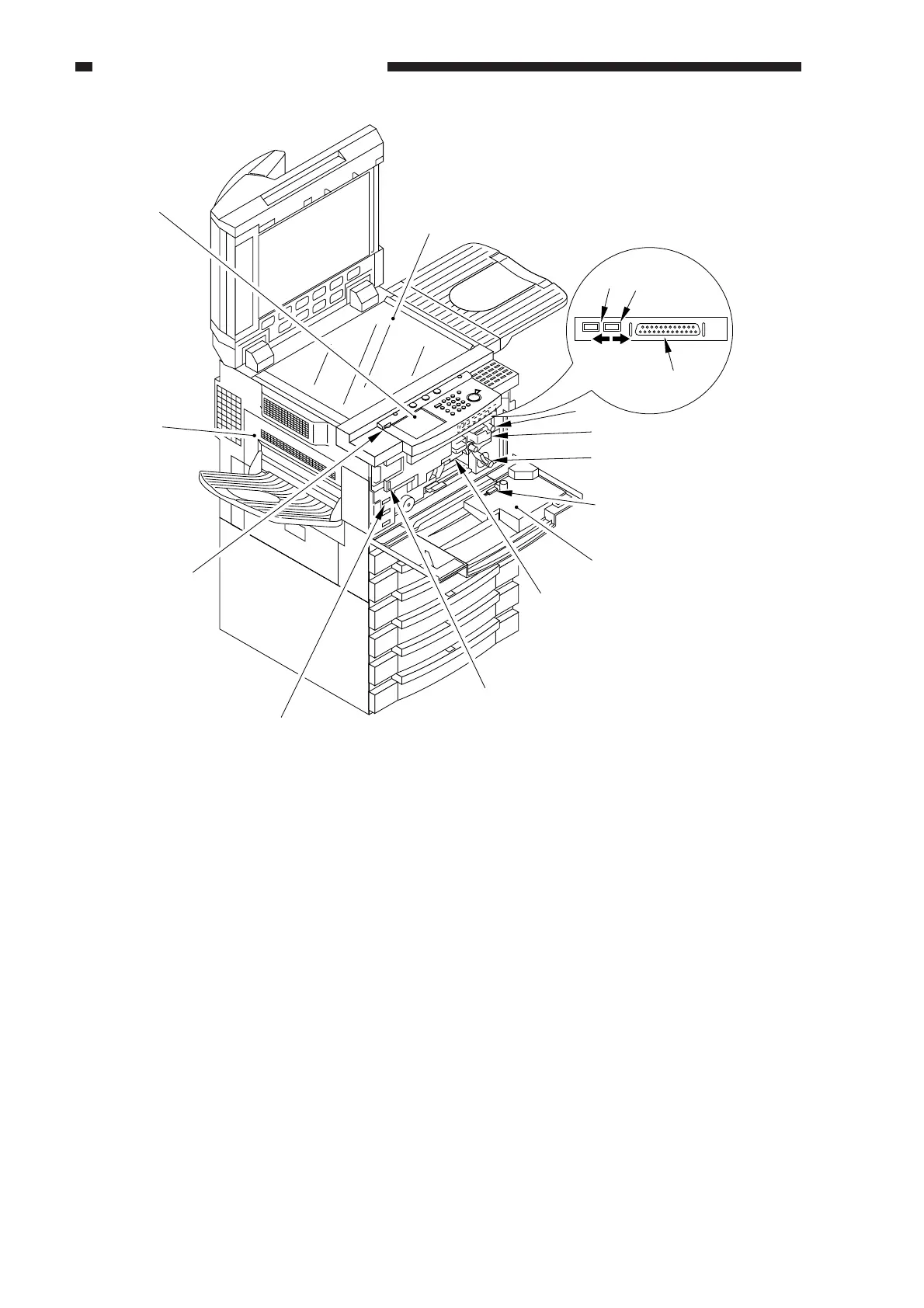

Figure 1-302
COPY LOAD
[2]
[1]
[6]
[5]
[4]
[3]
[14]
[11]
[9]
[7]
[8]
[10]
[15]
[13]
[12]
To Next Page
