Connectors for the Pick-Up/Delivery Accessories
When connecting accessories, be sure to use the connectors indicates in the diagram. If, for
example, you connect the paper deck to the cassette pedestal connector and turn on the paper, the
fuse on the paper deck PCB will blow, at times requiring replacement with a new PCB.
For the Feeder
For the Paper deck
For the Cassette Feeding Unit
For the Finisher

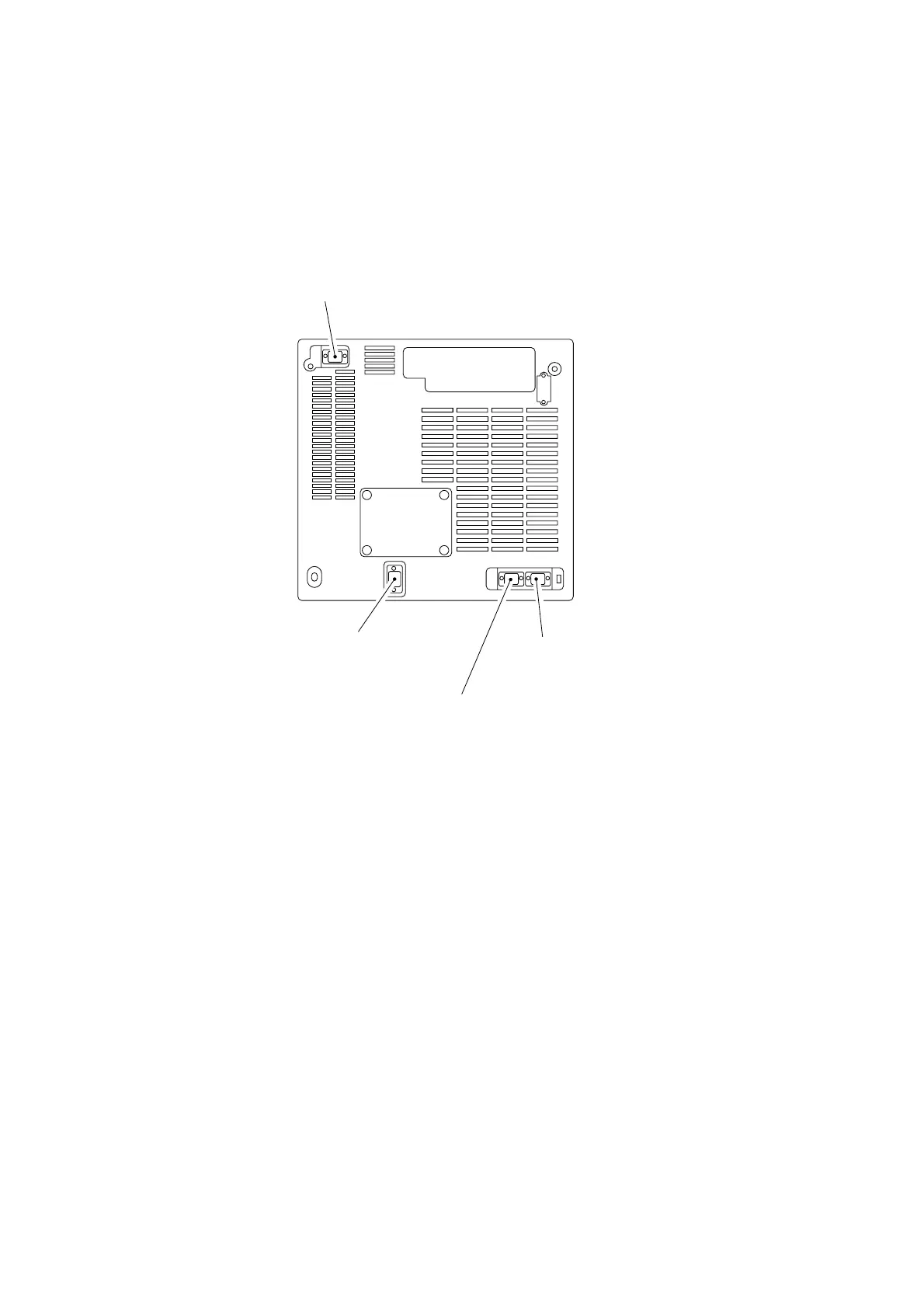

Figure. Rear View of the Body
