2. Image Composition
In image composition, n originals are placed on a single sheet. The mode may be either of the
following:
1. 2-on-1 mode, in which two originals are copied by reduction on one sheet of copy paper.
2. 4-on-1 mode, in which four originals are copied by reduction on one sheet of copy appear.
3. 8-on-1 mode, in which eight originals are copied by reduction on one sheet of copy paper.
The images will be laid out as follows according to the selected mode, original size, and copy
size:

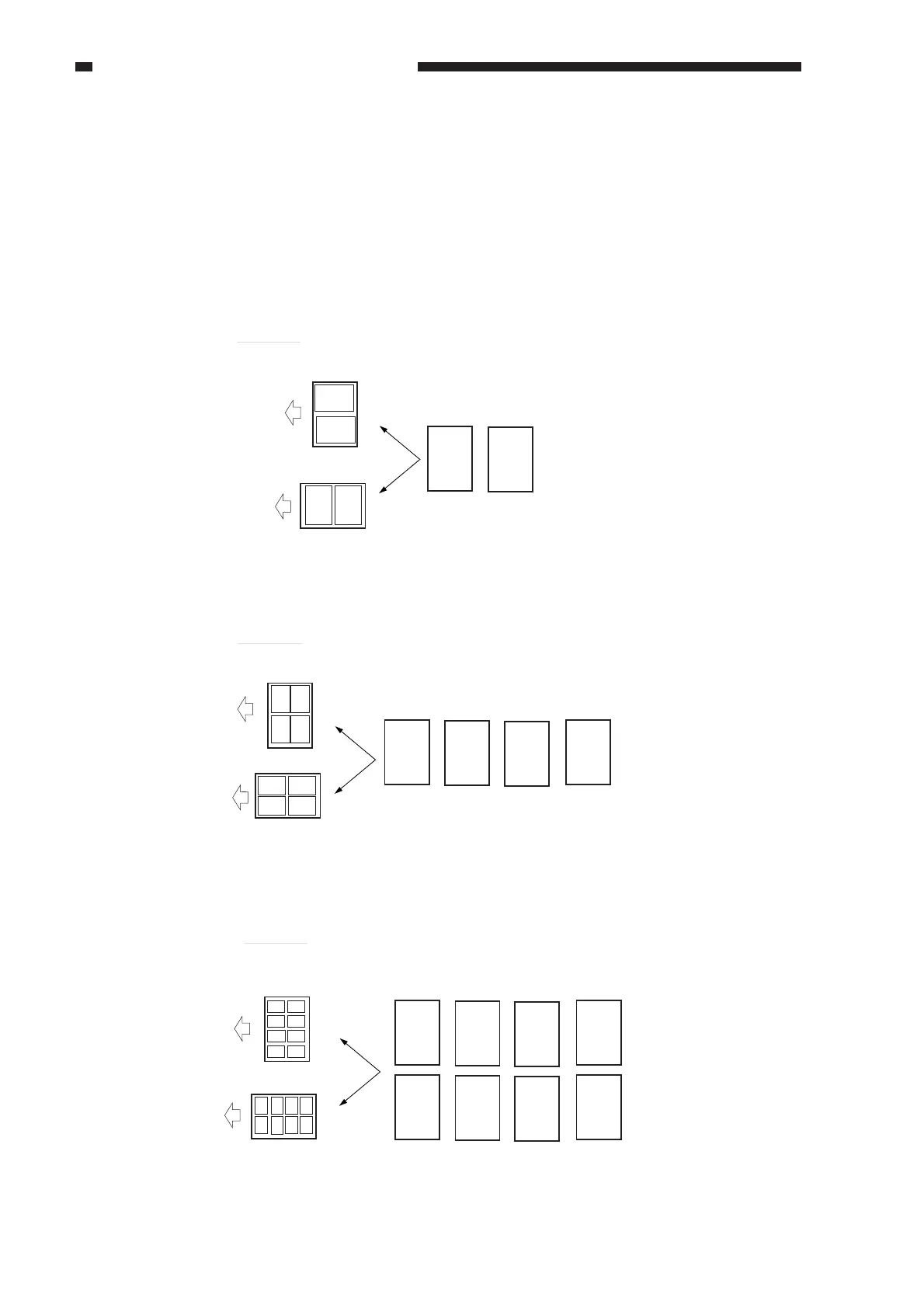

Figure 4-303
2-on-1
Originals
1
2
Originals
1
2
1
1
2
1
4
3
2
1
4
3
2
2
3
4
4-on-1
Originals
1
2
1
3 4
2
5
7 8
6
1
3 4
2
5
7 8
6
3
4
5
6
7
8
8-on-1
A4
A4
A4
A4
A4
A4
A4
A4R
A4R
A4R
Feeding
direction
Feeding
direction
Feeding
direction
