Canon imagePROGRAF iPF510 User Manual

Handling sheets

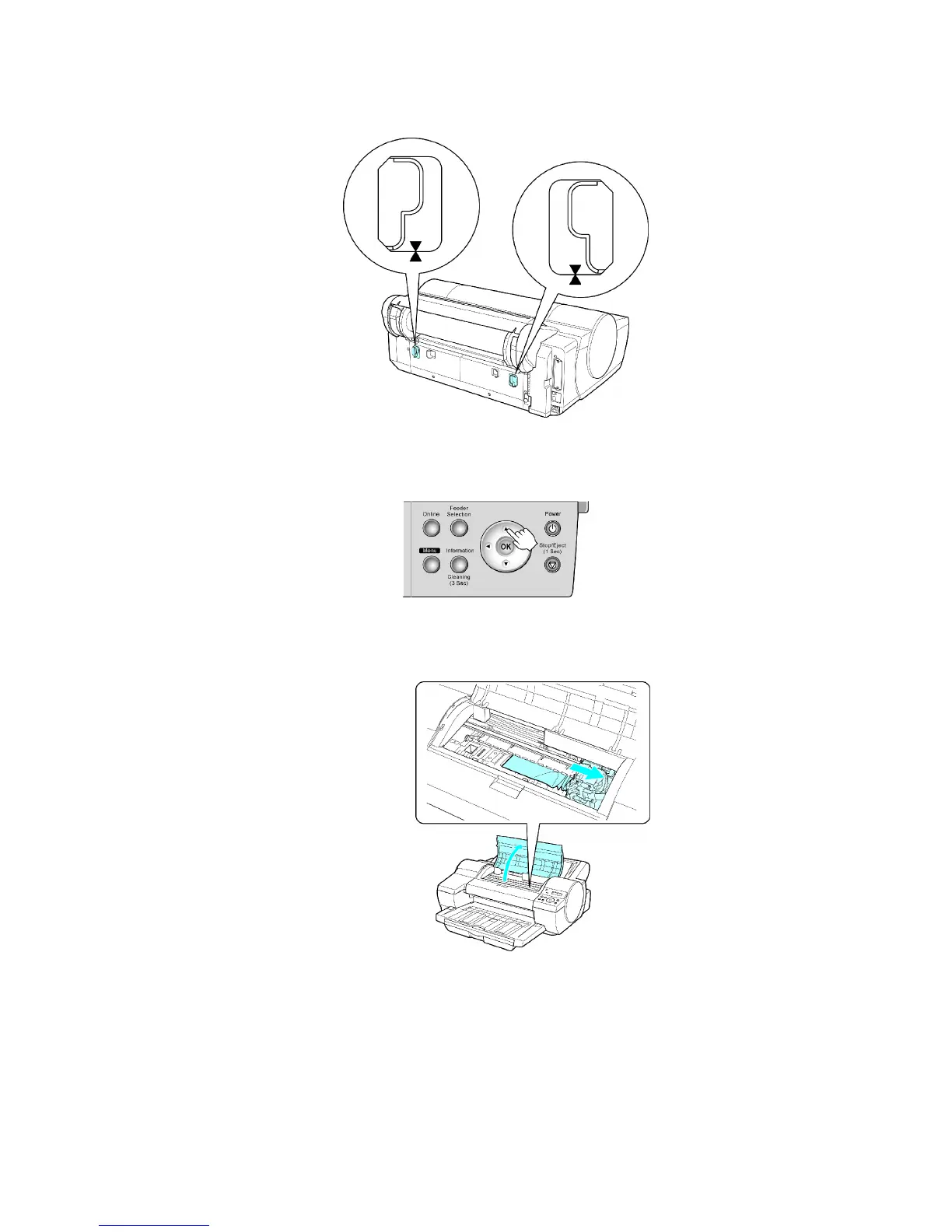

3. After attaching the Back Cover , push the lower part of the levers at two positions so that the
levers are aligned with the marks on the Back Cover .
If Paper Jam / Press ↑ Key is displayed
1. Press ▲ .
2. Remove the jammed paper .
• If paper is jammed inside the T op Cover
1. Open the T op Cover and move the Carriage to the side.
2. Clear any jammed paper from inside the T op Cover .
After removing the paper , make sure there are no other scraps of paper in the printer .
Handling Paper 171

Canon imagePROGRAF iPF510 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	A2 (420 x 594 mm)
Architectural sizes	8”, 10”, 14”, 16”, 17”
Maximum roll length	18 m
Paper tray media types	Banner, Cut sheet, Matte paper, Plain paper, Roll
ISO A-series sizes (A0...A9)	A2, A3, A4
ISO B-series sizes (B0...B9)	B3, B4
JIS B-series sizes (B0...B9)	B4
Photo paper sizes (imperial)	8x10, 10x12, 10x15, 12x16, 14x17, 16x20 \
Borderless printing media sizes	Legal, Letter
Compliance industry standards	IEEE 802.3, 802.3u
Power requirements	AC 100-240V (50/60 Hz)
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Display	LCD
Certification	RoHS, IT ECO, WEEE, CE, TUV, GS, Gost-R, CB
Internal memory	192 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
Wi-Fi	-
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10Base-T, 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX, SNMP HTTP, TCP/IP, AppleTalk
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Package weight	57000 g

Weight and Dimensions

Size (imperial)	17 \
Dimensions (WxDxH)	819 x 733 x 317 mm
