Printing procedure
Loading and Printing on Rolls
These are the basic steps for loading and printing on rolls.
Follow the steps below to switch to a new roll or a roll of a dif ferent type or width before printing.
Note
An optional Roll Feed Unit is required.
( P .70)
( P .143)
If you have installed an optional Roll Feed Unit , select Roll Feed Unit on the Device Settings sheet of
the printer properties, and then click Acquire Status . This will enable roll printing.
( P .480)
If a sheet is loaded in the T ray , remove it before this procedure. ( P .141)
Before printing banners or other large-format documents, spread a clean cloth or paper over the oor .
Long sheets that touch the oor after printing may become dirty .
If you will wait for the ink to dry after printing and simply eject the document, you can deactivate
automatic cutting and print a cut line instead. ( P .131)

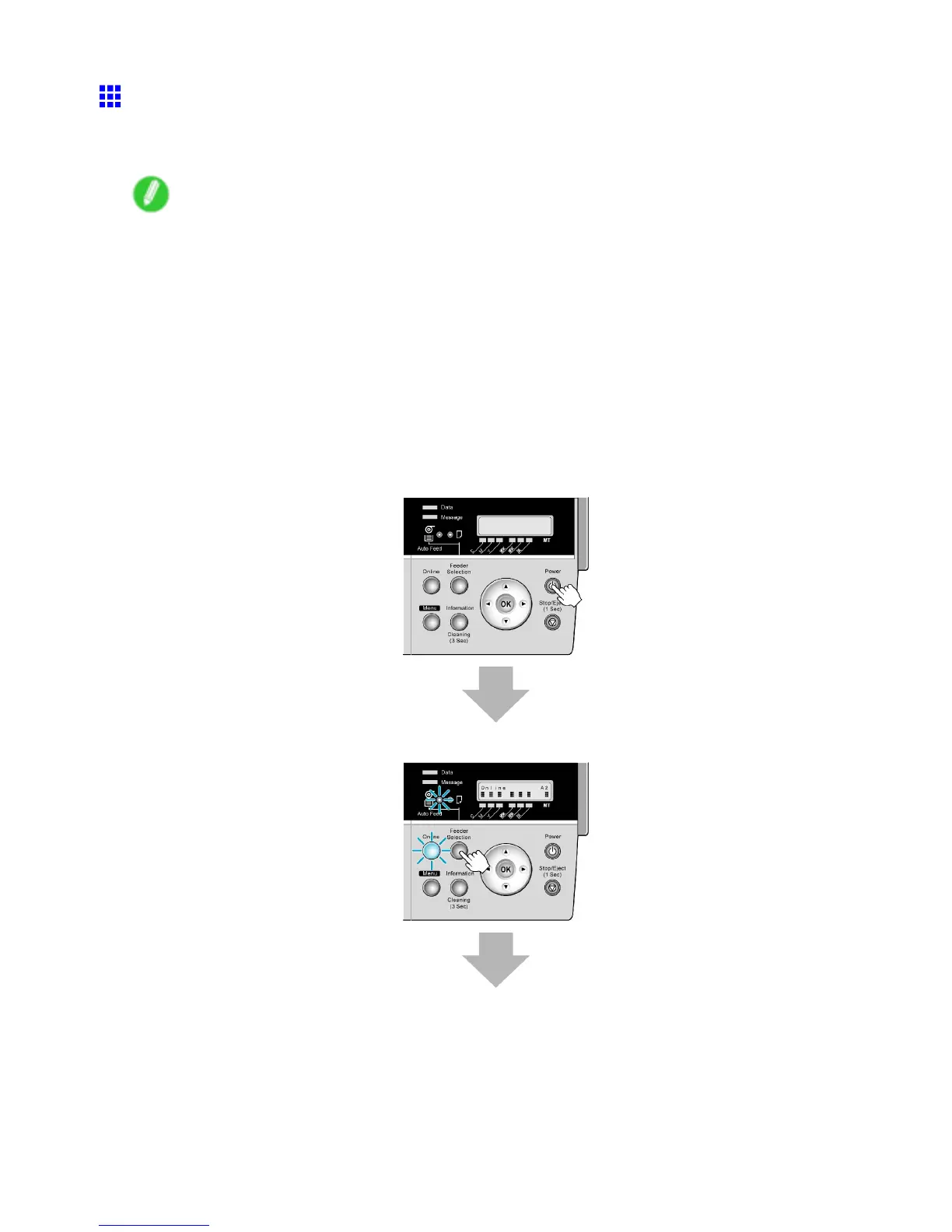

1. T urn the printer on. ( P .25)
2. Select roll paper as the paper source. ( P .1 1 1)
82 Basic Printing W orkow
