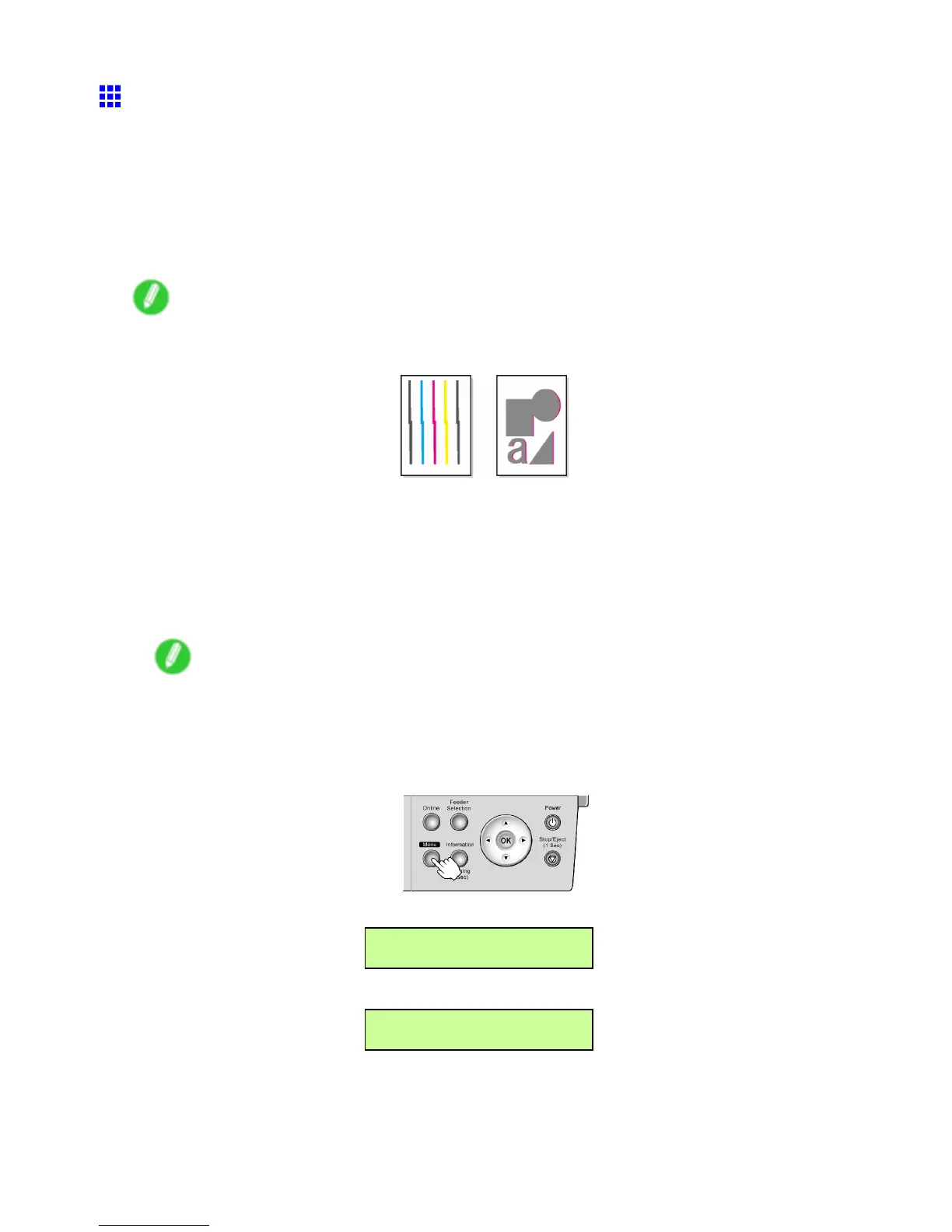

Adjusting the Printhead
Adjusting the Printhead Alignment Manually
If printed vertical lines are warped or colors are out of alignment, adjust the Printhead alignment. Adjust the
Printhead alignment automatically or manually by using a printed test pattern.
Y ou can adjust the Printhead alignment automatically or manually . Normally , choose automatic adjustment. If
using special media or printing does not improve even after performing automatic adjustment using advanced
adjustment, try manual adjustment. For instructions on automatic adjustment, see “Adjusting the Printhead
Alignment Automatically”. (→P .581)
Follow these steps for standard manual adjustment of the Printhead .
Note
If Manual Head Adj is not displayed in the menu, choose Advanced Adj. in Auto Head Adj. . Manual
Head Adj is displayed after you try Auto Head Adj. once.
1. When using sheets, have an unused sheet A4/Letter-sized or larger ready .
When using a roll, load a roll 10 inches (254 mm) or wider .
Loading Sheets Manually (→P .155)
Loading Rolls on the Roll Holder (→P .1 14)
Loading Rolls in the Roll Feed Unit (→P .1 16)
Loading the Roll in the Printer (→P .1 17)
Note
Always make sure the loaded paper matches the media type setting. Adjustment cannot be
completed correctly unless the setting value matches the loaded paper .
W e recommend using the type of paper you use most often for feed amount adjustment.
2. Press the Menu button to display MAIN MENU .
3. Press or to select Adjust Printer , and then press .
MAIN MENU
Adjust Printer
4. Press or to select Manual Head Adj , and then press .
Adjust Printer
Manual Head Adj
Adjustments for Better Print Quality 583
