Canon imagePROGRAF iPF510 User Manual

Adjusting the Printhead
Adjusting the Printhead Height
If paper rubs against the printer or the edge is wrinkled from rubbing, adjusting the Printhead height may
improve results.

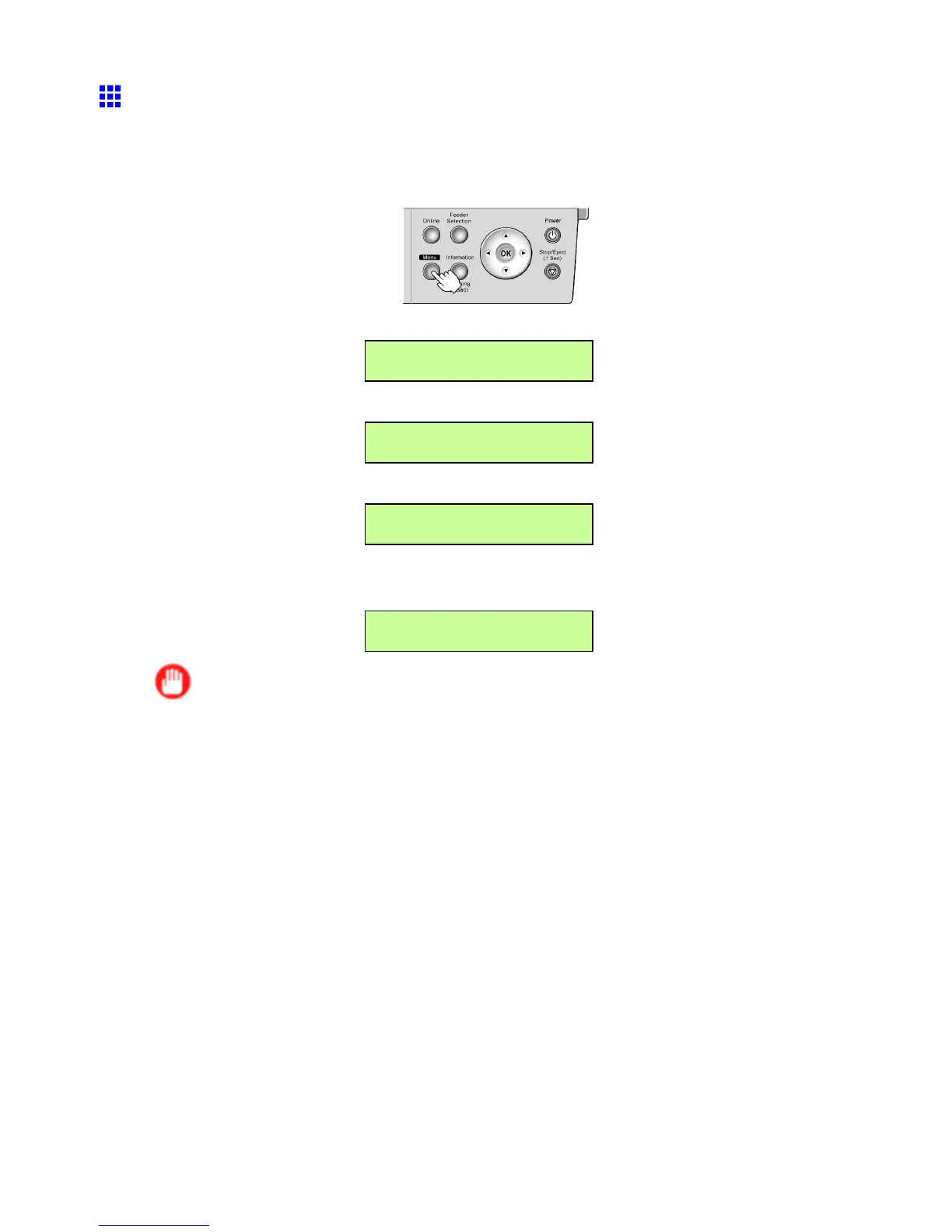

1. Press the Menu button to display MAIN MENU .
2. Press ◄ or ► to select Med.Detail Set. , and then press ▼ .
MAIN MENU
Med.Detail Set. ↓
3. Press ◄ or ► to select the type of paper , and then press ▼ .
Med.Detail Set.
Plain Paper ↓
4. Press ◄ or ► to select Head Height , and then press ▼ .
Plain Paper
Head Height ↓
5. Press ◄ or ► to select Printhead , and then press the OK button.
The setting is updated, and an equals sign “=” is displayed at left.
Head Height
= Automatic
Important
• If you switch to another type of paper after printing, reset the Printhead height to Automatic .
586 Adjustments for Better Print Quality

Canon imagePROGRAF iPF510 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	A2 (420 x 594 mm)
Architectural sizes	8”, 10”, 14”, 16”, 17”
Maximum roll length	18 m
Paper tray media types	Banner, Cut sheet, Matte paper, Plain paper, Roll
ISO A-series sizes (A0...A9)	A2, A3, A4
ISO B-series sizes (B0...B9)	B3, B4
JIS B-series sizes (B0...B9)	B4
Photo paper sizes (imperial)	8x10, 10x12, 10x15, 12x16, 14x17, 16x20 \
Borderless printing media sizes	Legal, Letter
Compliance industry standards	IEEE 802.3, 802.3u
Power requirements	AC 100-240V (50/60 Hz)
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Display	LCD
Certification	RoHS, IT ECO, WEEE, CE, TUV, GS, Gost-R, CB
Internal memory	192 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
Wi-Fi	-
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10Base-T, 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX, SNMP HTTP, TCP/IP, AppleTalk
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Package weight	57000 g

Weight and Dimensions

Size (imperial)	17 \
Dimensions (WxDxH)	819 x 733 x 317 mm
