Printer parts
Printer Parts
Printer parts

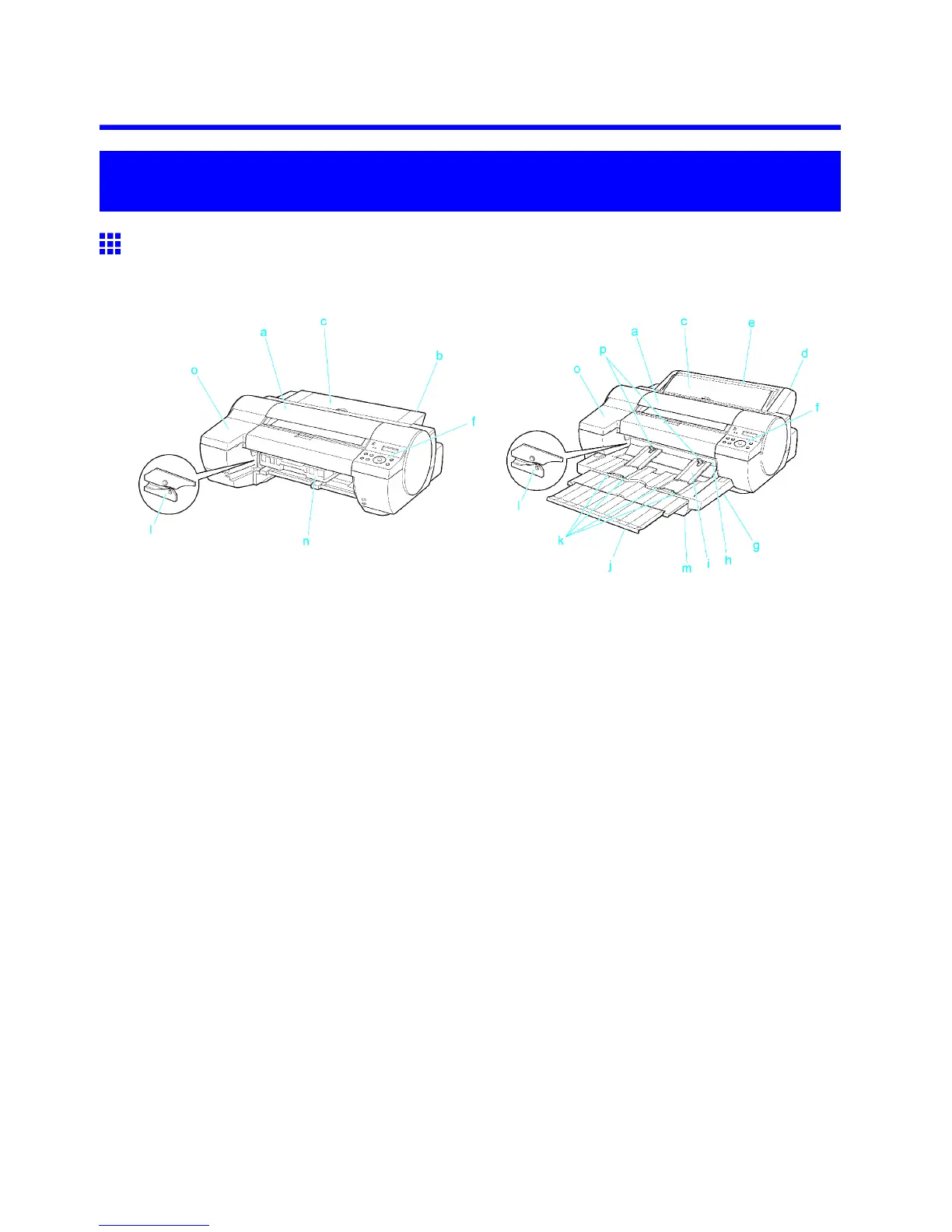

Front
Front of the printer with the standard Paper
T ray Unit installed (*1)
Front of the printer with the optional Roll
Feed Unit installed
*1: When the Cassette and Output T ray are removed
a. T op Cover
Open this cover to install the Printhead and remove any jammed paper from inside the printer , as
needed. ( P .16)
b. Paper T ray Unit (Standard)
A standard unit used when loading sheets manually . T o print on rolls, replace this unit with the optional
Roll Feed Unit .
c. Paper T ray Cover
Open this cover to load paper in the T ray . ( P .17)
d. Roll Feed Unit (Optional)
T o print on rolls, replace the Paper T ray Unit with this unit. Y ou can also load sheets in this unit manually .
e. Roll Feed Unit Cover
Open this cover to load rolls. ( P .18)
f. Control Panel
Use this panel to operate the printer and check the printer status. ( P .21)
g. Output T ray
Printed documents are ejected into the output tray .
h. Output T ray ( Front Paper Feed Slot )
All printed documents are ejected from this slot. When loading heavyweight paper , insert it here. ( P .17)
Printer Parts 13
