Printer parts

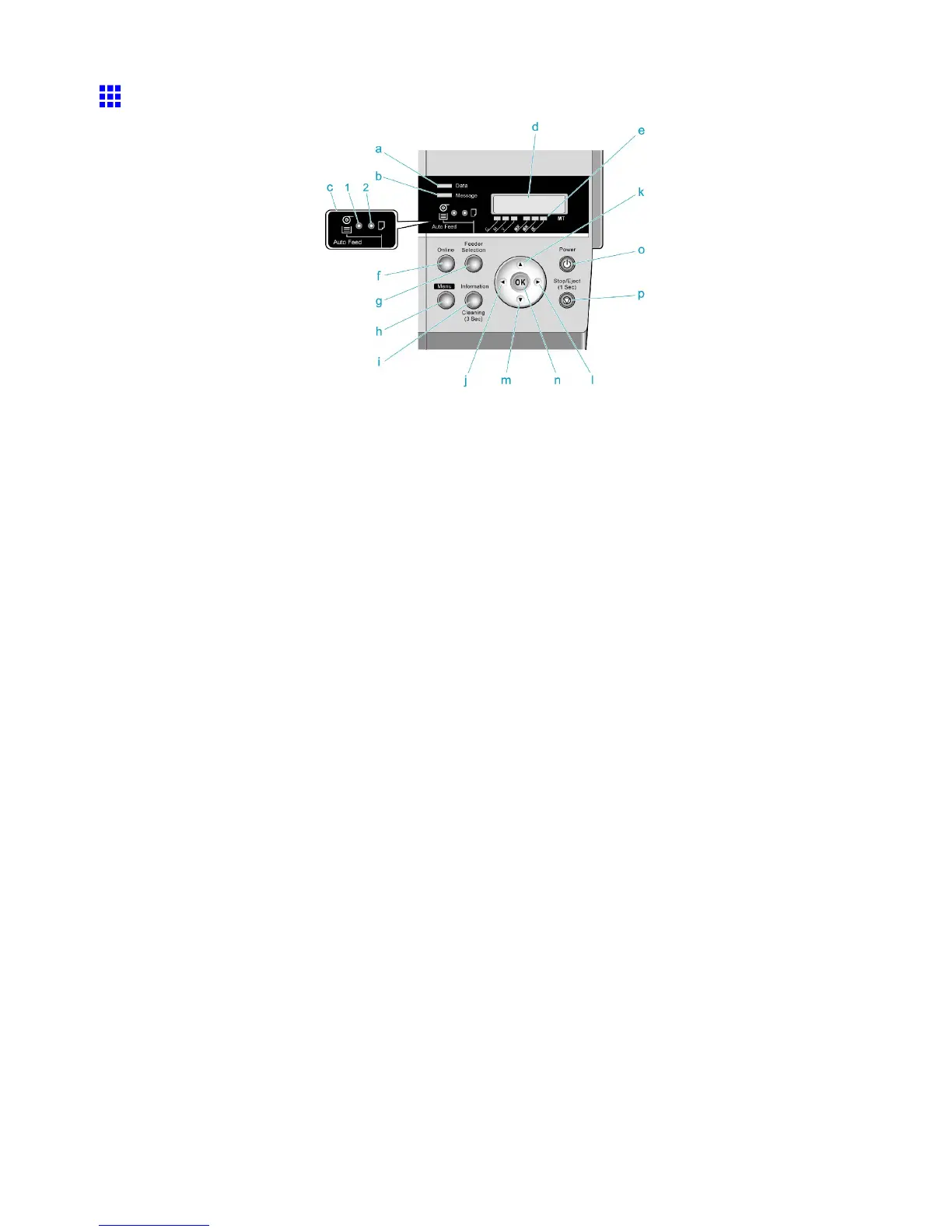

Control Panel
a. Data lamp (Green)
• Flashing
During printing, the Data lamp ashes when the printer is receiving or processing print jobs.
Otherwise, this lamp ashes when the printer is paused or updating the rmware.
• Of f
There are no active print jobs when the Data lamp is of f.
b. Message lamp (Orange)
• On
A warning message is displayed.
• Flashing
An error message is displayed.
• Of f
The printer is of f or is operating normally .
c. Paper Source Section
After you press the Feeder Selection button, the lamp for your chosen paper source is lit.
1. Auto Feed lamp (Green) ( Cassette or Rolls)
• On
Shows whether a Cassette or roll is selected as the paper source.
• Of f
Shows whether the T ray or Front Paper Feed Slot is selected as the paper source.
2. Paper T ray lamp (Green)
• On
Shows whether the T ray or Front Paper Feed Slot is selected as the paper source.
• Of f
Shows whether a Cassette or roll is selected as the paper source.
d. Display Screen
Shows the printer menu, as well as the printer status and messages.
e. Color Label
These labels indicate the Ink T ank colors and names. The labels correspond to the ink levels on
the Display Screen .
Printer Parts 21

Canon imagePROGRAF iPF510 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	A2 (420 x 594 mm)
Architectural sizes	8”, 10”, 14”, 16”, 17”
Maximum roll length	18 m
Paper tray media types	Banner, Cut sheet, Matte paper, Plain paper, Roll
ISO A-series sizes (A0...A9)	A2, A3, A4
ISO B-series sizes (B0...B9)	B3, B4
JIS B-series sizes (B0...B9)	B4
Photo paper sizes (imperial)	8x10, 10x12, 10x15, 12x16, 14x17, 16x20 \
Borderless printing media sizes	Legal, Letter
Compliance industry standards	IEEE 802.3, 802.3u
Power requirements	AC 100-240V (50/60 Hz)
Power consumption (off)	1 W
Power consumption (standby)	6 W
Power consumption (typical)	100 W
Display	LCD
Certification	RoHS, IT ECO, WEEE, CE, TUV, GS, Gost-R, CB
Internal memory	192 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
Wi-Fi	-
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10Base-T, 100base-TX Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	IPX/SPX, SNMP HTTP, TCP/IP, AppleTalk
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Package weight	57000 g

Weight and Dimensions

Size (imperial)	17 \
Dimensions (WxDxH)	819 x 733 x 317 mm
