Adjusting the Printhead
5. Press ◄ or ► to select Y es , and then press the OK button.
The setting is updated, and an equals sign “=” is displayed at left.
Manual Head Adj
= Y es
A test pattern is printed for printhead adjustment.
Note
• The following screen is displayed if automatic feeding is selected when an optional Roll Feed Unit
is installed but no roll is loaded. In this case, select the paper source and press the OK button. If
Cassette is selected on the following screen, or if automatic feeding is selected when an optional
Roll Feed Unit is not installed, select the type and size of paper loaded in the Cassette .
Media Source
= Roll
6. After Adj.Setting is displayed, press ▼ .
Adj.Setting
D ↓
7. Press ▼ .
D
D-1

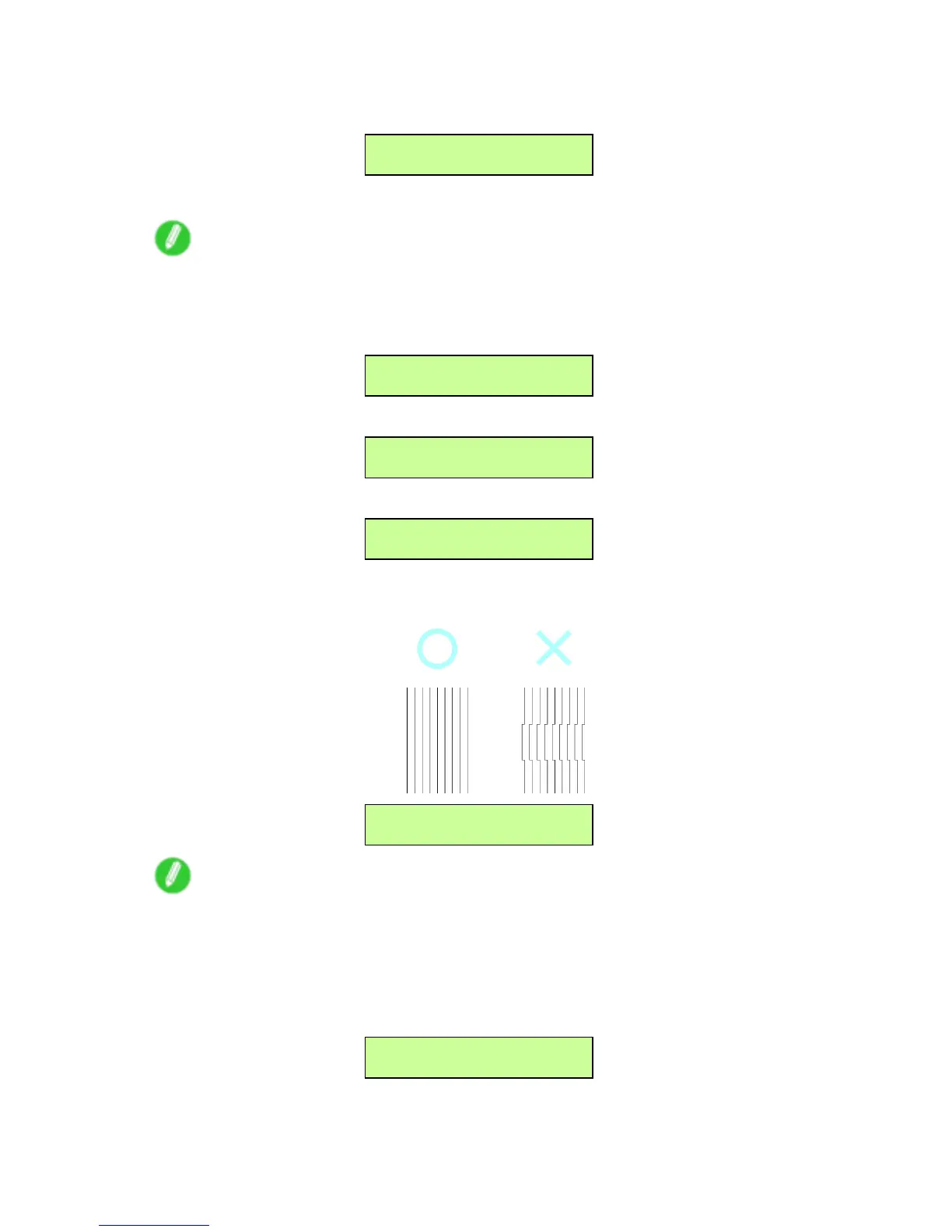

8. Examine test pattern D-1 for printhead adjustment. After you determine the pattern with straight
lines, press ◄ or ► to choose the pattern number , and then press the OK button.
D-1
=10 ↓
Note
• If you cannot determine the pattern with straight lines, choose an intermediate value. For example,
choose 1 1 if you cannot decide whether pattern 10 or 12 is better .
9. Repeat steps 7 and 8 to specify the adjustment value for D-2 to D-5 and D-7 to D-1 1 .
10. Press ▲ .
1 1. Press ◄ or ► to select Save Settings , and then press ▼ .
Adj.Setting
Save Settings ↓
584 Adjustments for Better Print Quality
