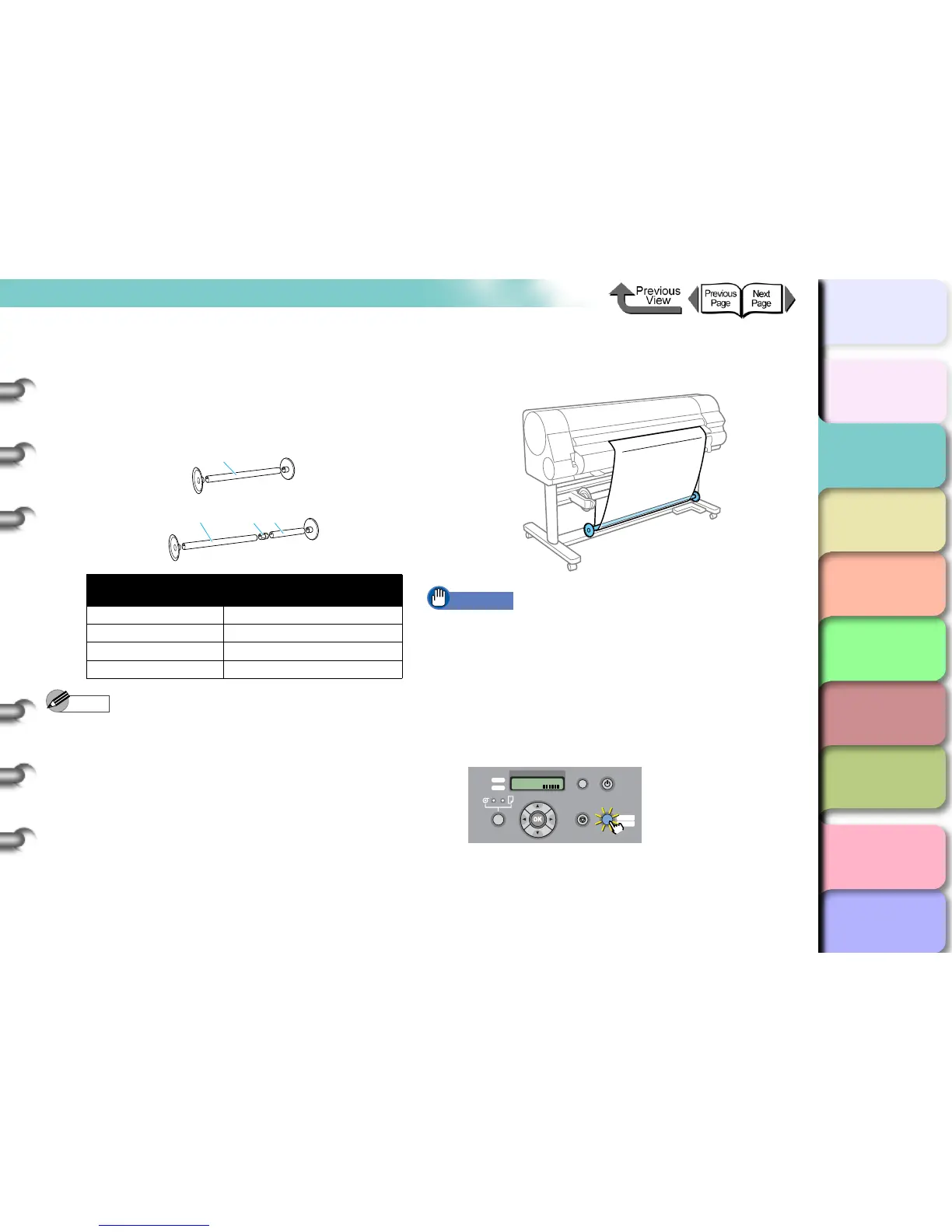

15Align to the roll media width, and then
assemble the weight roll (a, b, c, d) and the
weight joint (e).
Assemble the weight rolls as described below.
Colored labels are affixed to the weight rolls.
Note
z The weight roll top surface (b, c, d) can be used only
for assembly.
16Gently place the weight roll on the slack in
the roll media.
Important
z Make sure to place the weight roll as described.
Failure to do so may cause defective spooling.
z When mounting the weight roll, take care that you do
not touch the tube and knock the left-right position of
the roll media out of alignment.
17Press the Online button to display Online on
the printer display.
Compatible Roll
Media Sizes
Weight Rolls that
Can Be Used
(24”/610 mm) Black (a)
(36”/914 mm) Black (a) + Blue (b)
(42”/1,067 mm) Black (a) + Red (c)
(44”/1,118 mm) Black (a) + Yellow (d)
a
a
e
b,c,d
Online
Bk
Data
Information Power
Offline
Menu
Message
Online
Cleaning
(3 sec.)
Stop/Eject
(1 sec.)
