îš„ Submenu

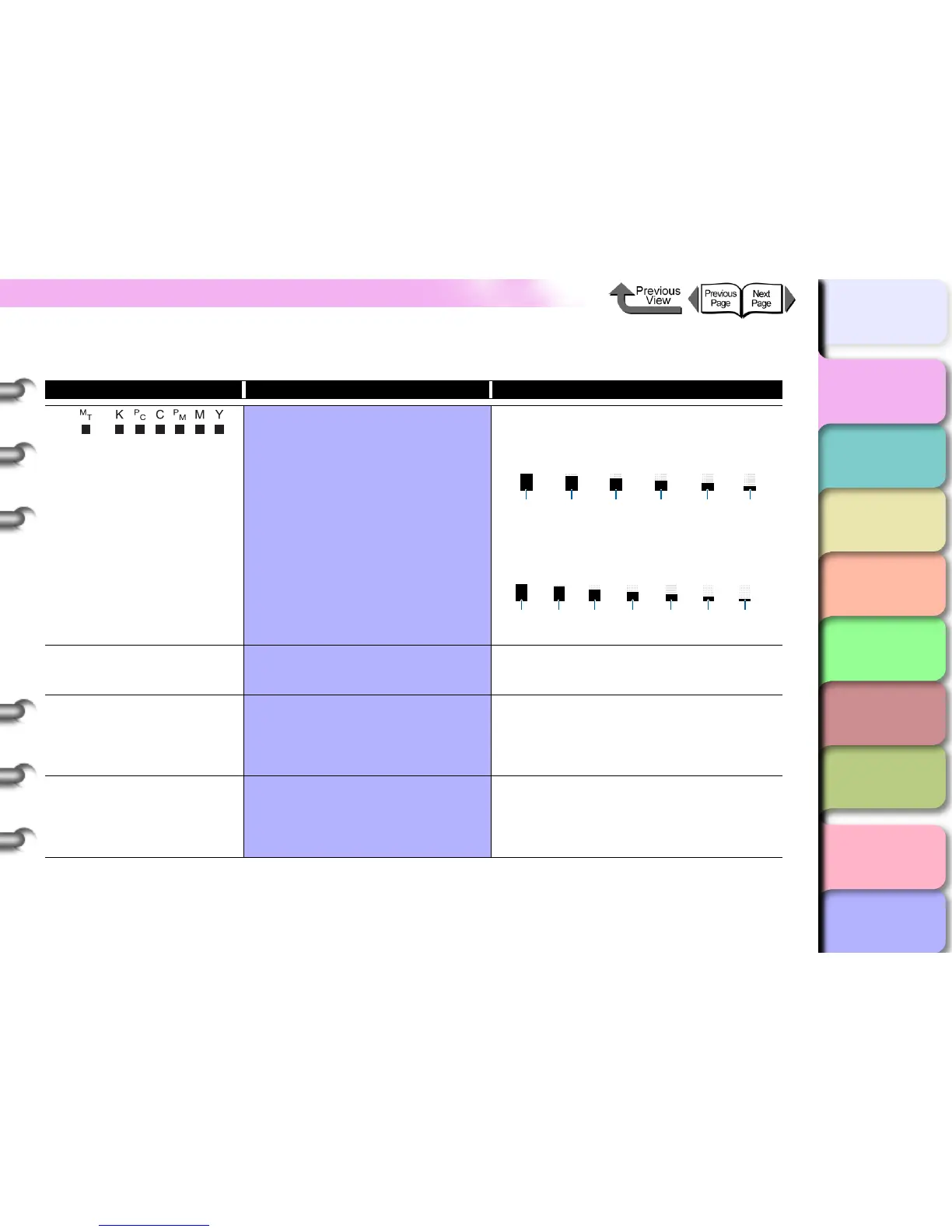

Menu Item Setting Values Function
Ink: The center of the display shows the remaining
amount of ink in each ink tank from the 7 levels
of (100%, 80%, 60%, 40%, 20%, 0%), and no
ink.
The right side of the display shows the amount
of ink that the maintenance cartridge can still
absorb as a 7-level bar.
Width: X
Y
X: Media width
Y: Media Type
The width of the media is shown on the top line,
and the type of media is shown on the bottom
line.
Remaining: X m
## Printable
X: Roll Remains
Y: Sheets printable with remaining ink.
When the roll media supply detection is On, this
displays the length of media that remains on
the roll. When the low ink alert is displayed, a
guide to the number of sheets that can be
printed is also displayed.
Head Height X
Best Head Hght Y
X: Current printhead position (L, M, H)
Y: Optimum position for media (L, M, H)
Displays the current and optimum position of
the printhead. When the Head Ht. Wrning is
Yes, an alert is issued if the current height of
the printhead is lower than the ideal height for
the media.
100%
(100~90%)
80%
(90~70%)
60%
(70~50%)
40%
(50~30%)
20%
(30~6.9%)
0%
(6.9~0%)
~700ml
(7dot)
~600ml
(6dot)
~500ml
(5dot)
~400ml
(4dot)
~300ml
(3dot)
~200ml
(2dot)
200ml~0ml
(1dot)
To Next Page
