Canon LBP3200 - Page 203

To Next Page

To Previous Page

Moving the Printer

5-20

Routine Maintenance

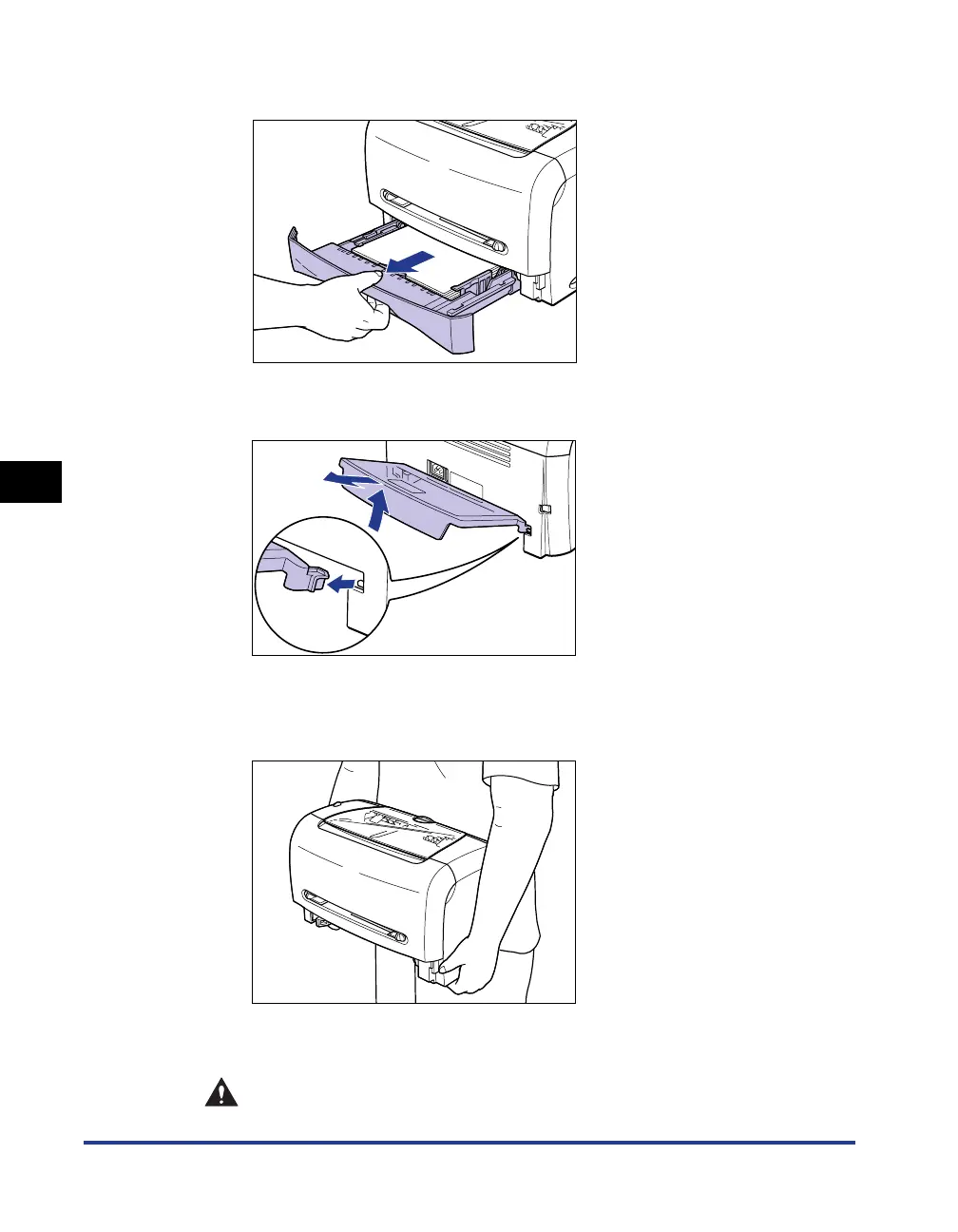

Pull out the cassette.

Remove the cassette protective cover at the back of the printer.

Hold the printer on both side as shown in the ﬁgure when

carrying it.

Set the printer down carefully at the installation site.

CAUTION

Set the printer down slowly and carefully. Be careful not to hurt your hands.
