Paper Jams

6-11

Troubleshooting

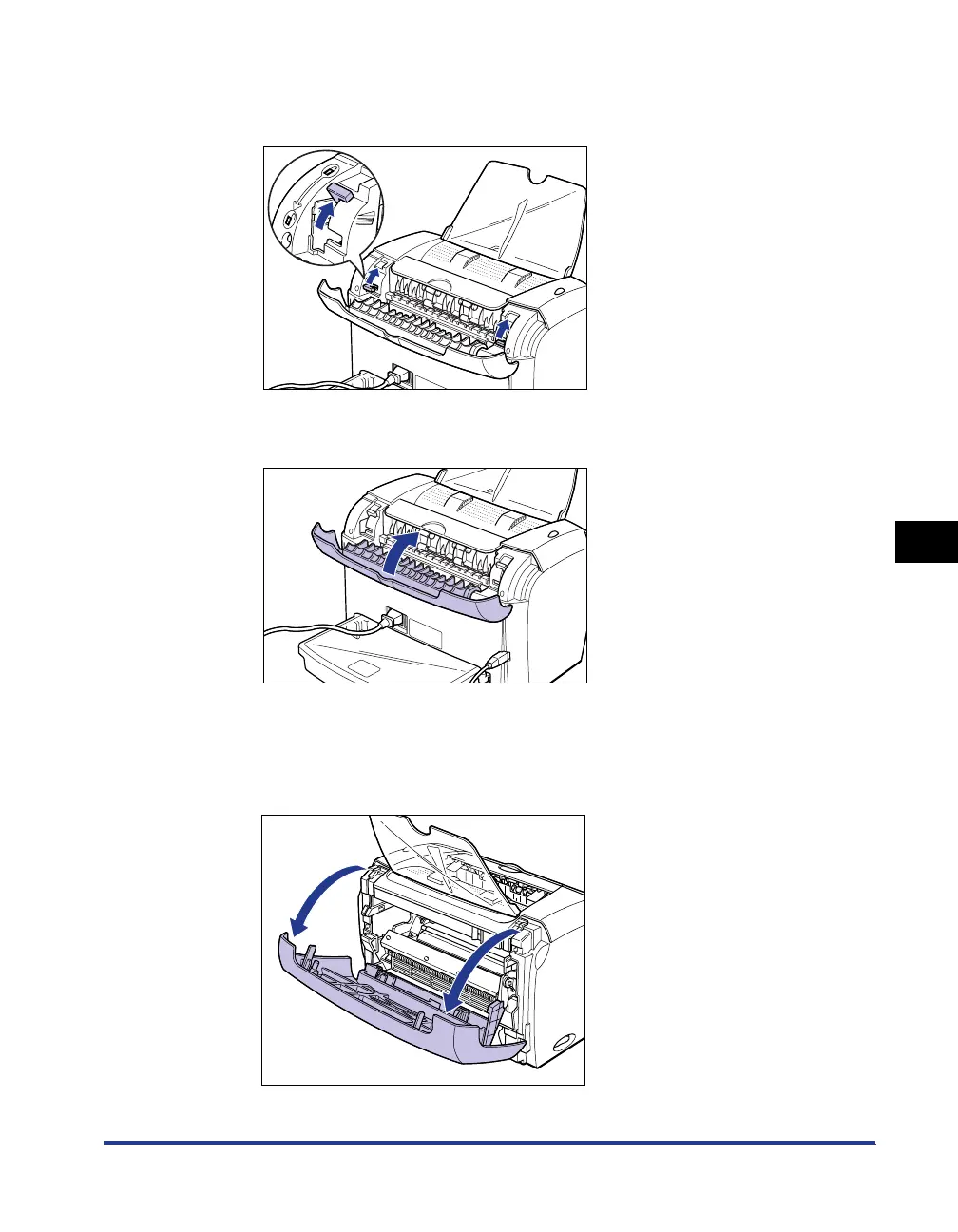

Return the pressure release levers of the ﬁxing unit to the

original positions.

Close the delivery selection cover.

Open the front cover.

When opening the front cover, put your hands into the opening on both sides of

the printer, then slowly and strongly pull it out.
