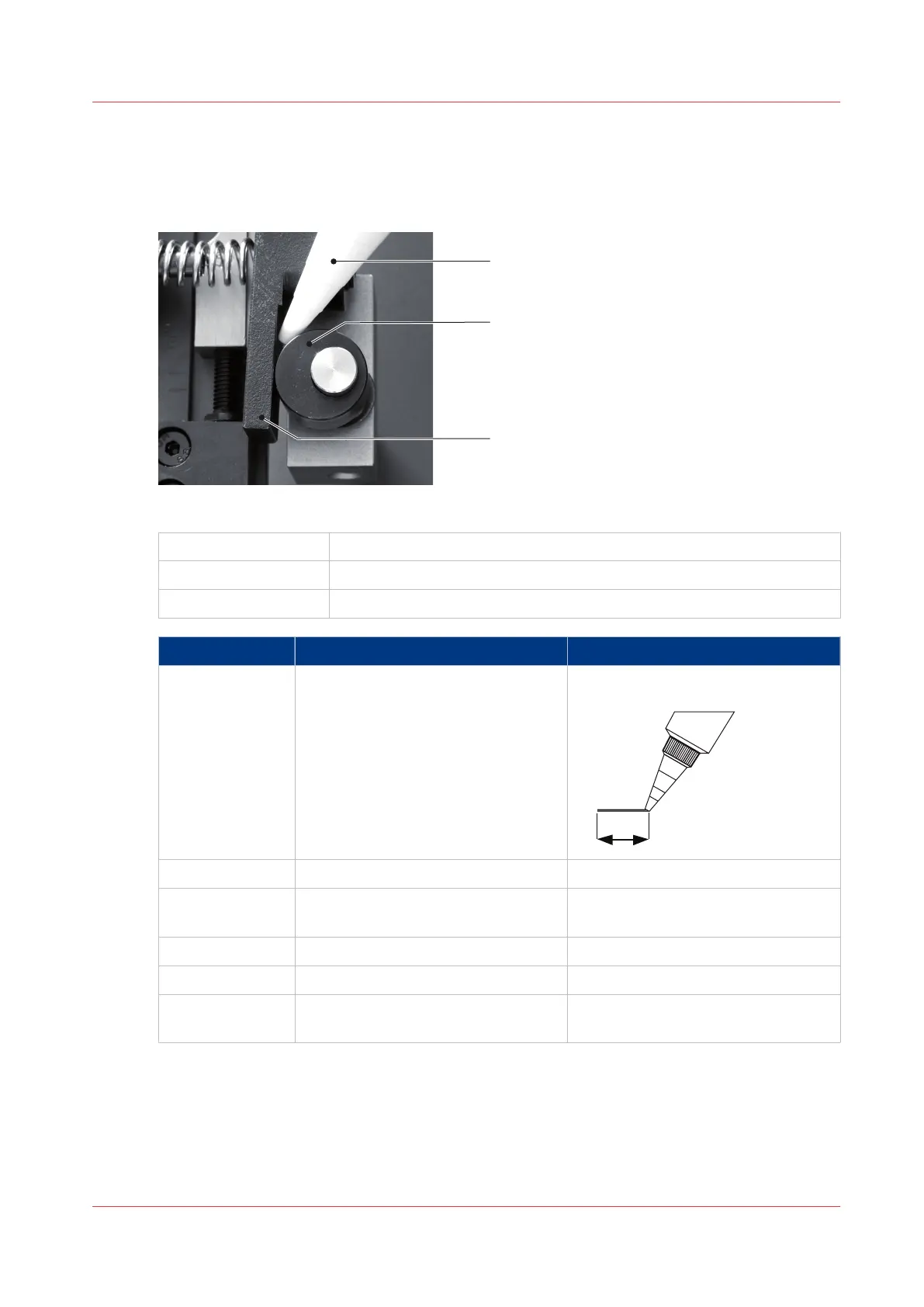

Lubricate the wire-feed cam
Illustration
A
B
C
[56] Lubricate the wire-feed cam
A
Nozzle of the tube of grease
B Wire-feed cam
C Feed lever
Step Action Information
1 Apply 10 mm of grease from the
tube between the bearing surface of
the wire-feed cam and the feed lever.
See the 'Lubricate the wire-feed cam'
illustration above.
0.4"
2 Lower the Booklet maker main deck.
3 Lower the clincher frame. See Lower the Clincher Frame on
page 47
4 Close all of the covers.
5 Make some test books.
6 Clean excess grease from the top of
the stitch head.
See Clean excess grease from the
Stitch Head on page 117
