Procedure 2
A
B
C

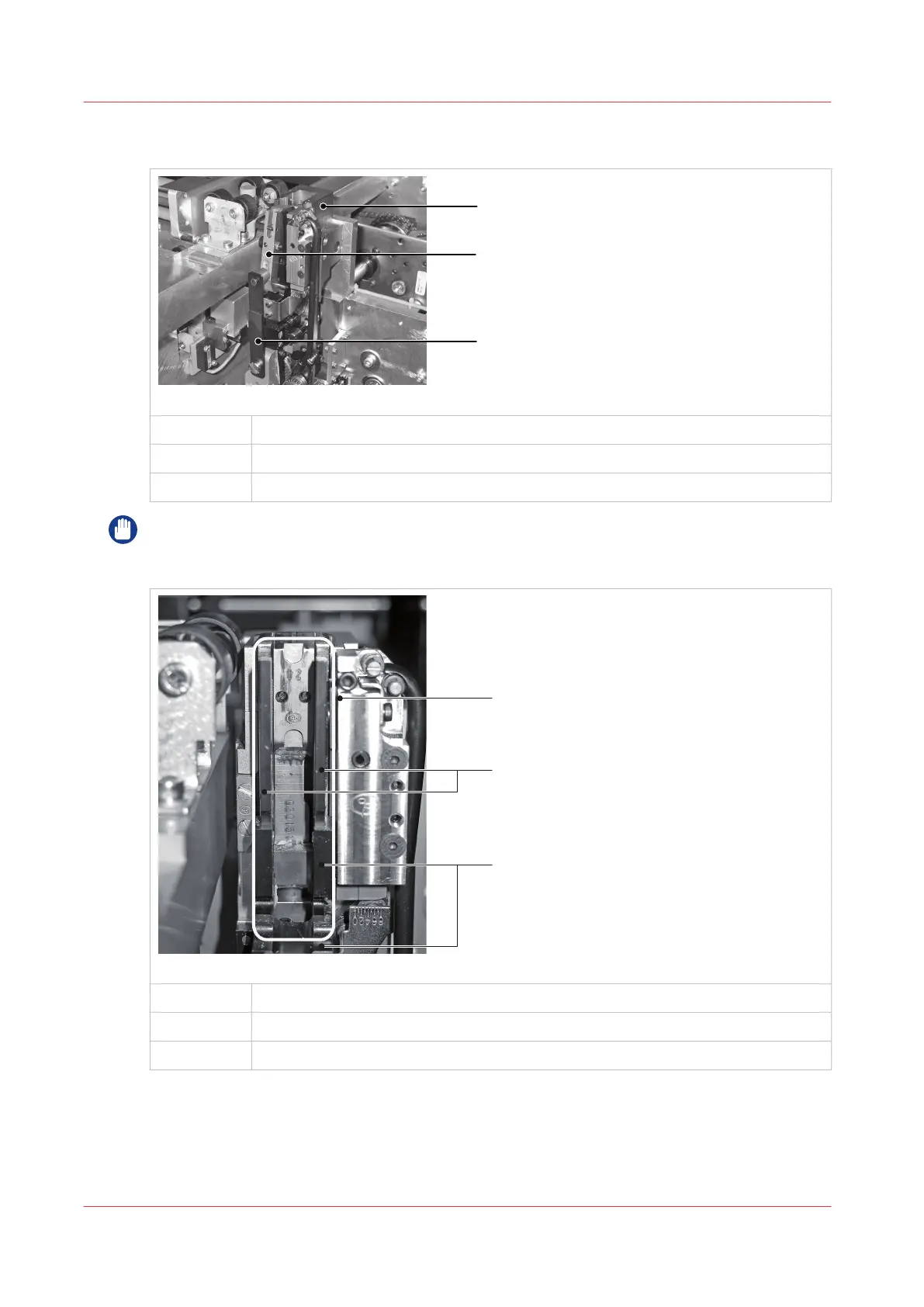

[37] Remove the stitch head wire holder
A
Stitch head
B Wire holder
C Wire holder retaining spring
IMPORTANT
Do not apply force to the wire guide bars or the pivot block when you do this procedure. Force
on these parts will damage the stitch head.
A
B
C
[38] Inspect for stitch wire
A
Inspect this area for pieces of stitch wire
B Wire guide bars
C Pivot block
Tools and Materials
• Klüber Isoflex NBU 15 Grease, 50g.
• Air duster. Supplied with the machine.
• Wire cutters. Supplied with the machine.
Procedure 2
