Adjust the Stacker
Introduction
The collection table must be in the correct position for the stacker to operate. The position of the
collection table depends on the finished size of the job.
• When you start a new job
• If the books do not stack correctly
C
B
A
2
1

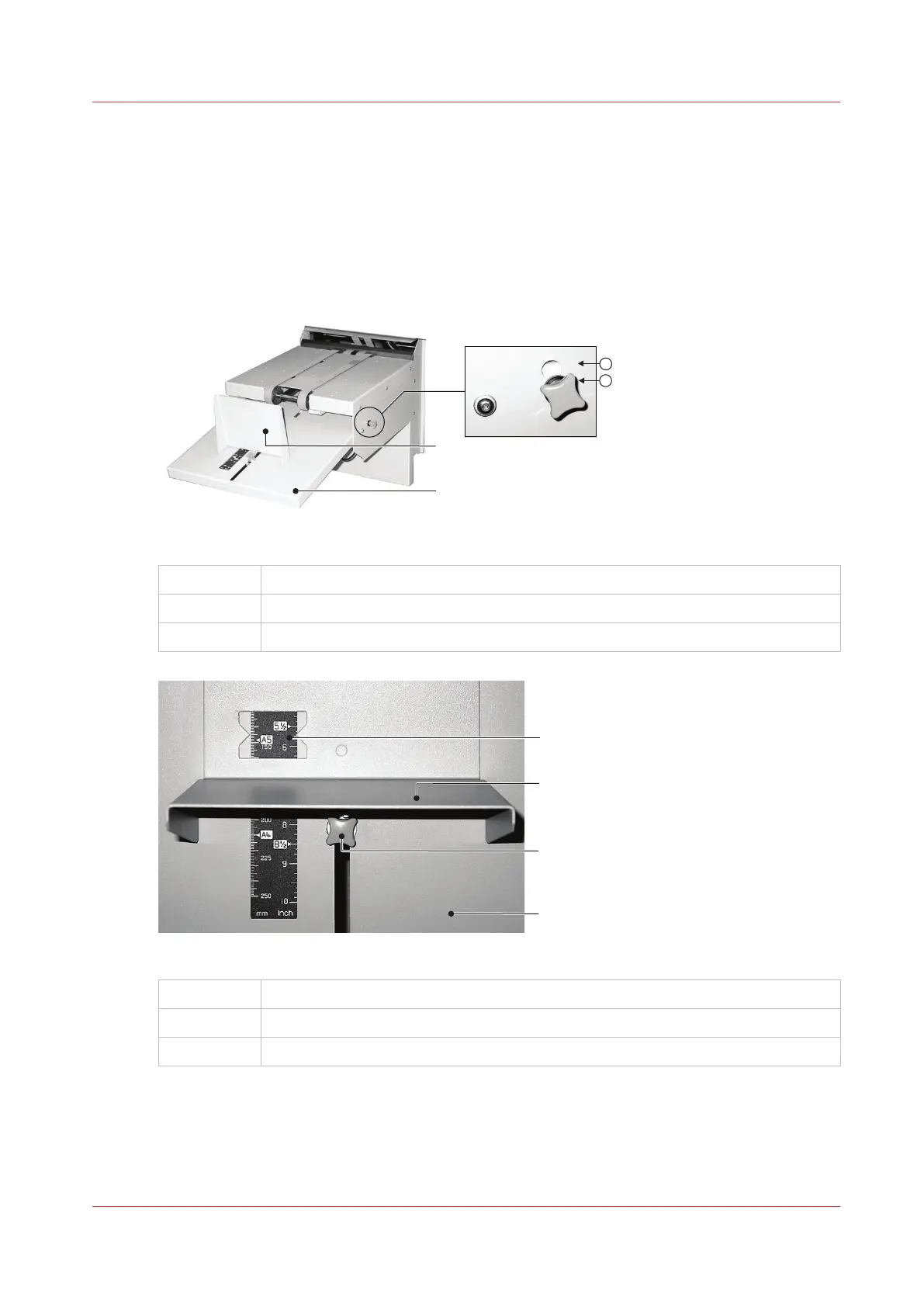

[18] The Stacker
A
Catch tray adjustment
B Collection table
C Catch tray
A
C
D
B
[19] Collection table position
A
Book size in window
B Collection table
C Orange plastic hand screw
4
Adjust the Stacker
