CG Drives & Automation, 01-5980-01r2 Functionality 107
AnIn Max [5132]
Parameter to set the maximum value of the external
reference signal. Only visible if [512] = “User mA/V.”
AnIn Function Min [5134]
With “AnIn Function Min” the physical minimum value is
scaled to selected process unit. The default scaling is
dependent of the selected function of AnIn [511].
AnIn Function Value Min [5135]
With “AnIn Function VaMin” you define a user-defined
value for the signal. Only visible when user-defined is
selected in menu [5134].
AnIn Function Max [5136]
With “AnIn Function Max” the physical maximum value is
scaled to selected process unit. The default scaling is
dependent of the selected function of AnIn [511].
AnIn Function Value Max [5137]
With “AnIn Function VaMax” you define a user-defined
value for the signal. Only visible when user-defined is
selected in menu [5136].
Example:
Process sensor is a sensor with the following specification:
Range: 0–3 bar
Output: 2–10 mA
Analogue input should be set up according to:
[512] AnIn Setup = User mA
[5131] AnIn Min = 2 mA
[5132] AnIn Max = 10 mA
[325] Process Max= 3.000 bar

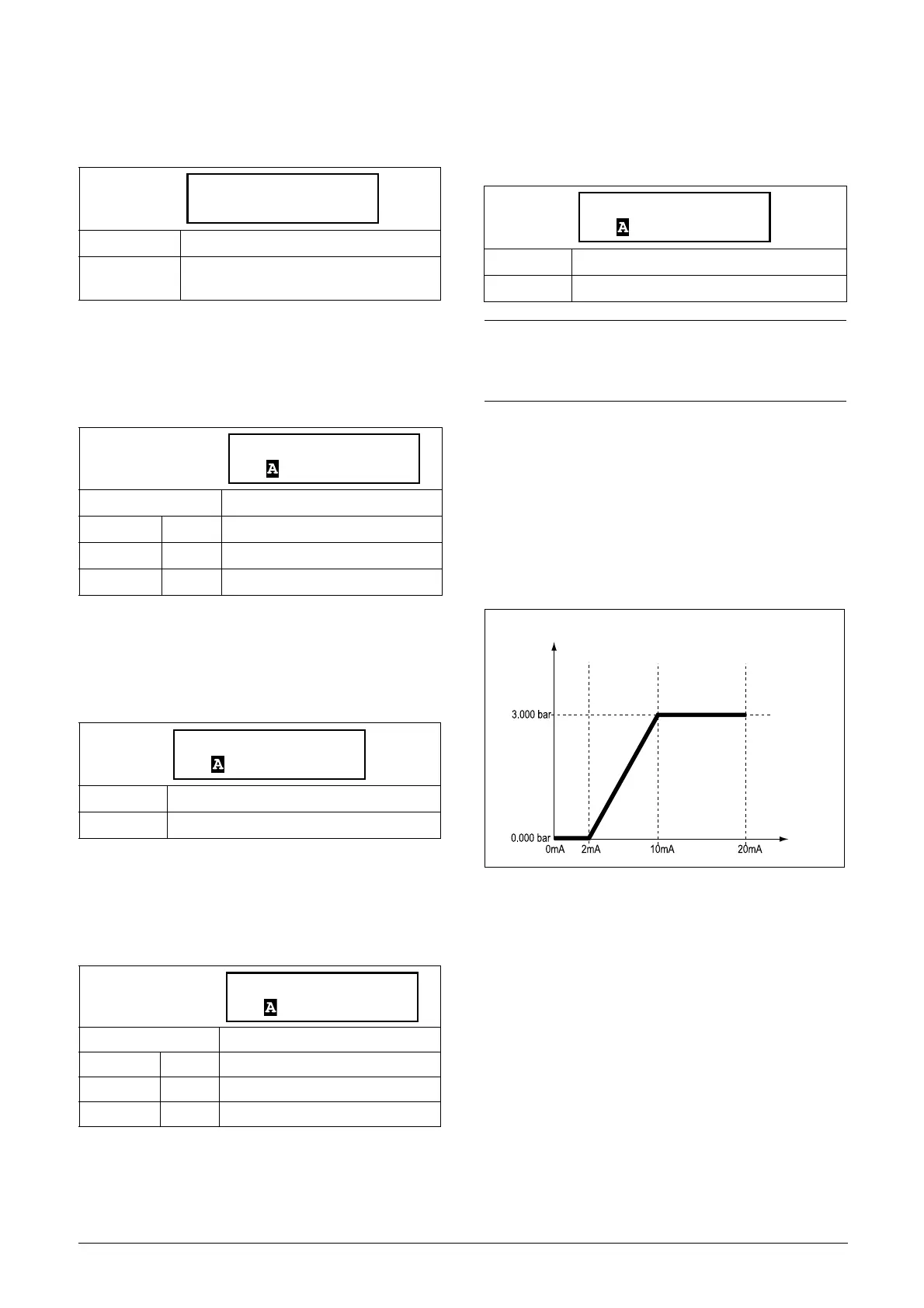

Fig. 61 Analogue input settings, example with Process sensor.
Default: Max (10.00 V/20.00 mA)
Range:
0.00–20.00 mA
0–10.00 V
Default: Min
Min 0 Min value
Max 1 Max value
User-defined 2 Define user value in menu [5135]
Default: 0.000
Range: -10,000.000 – 10,000.000
Default: Max
Min 0 Min value
Max 1 Max value
User-defined 2 Define user value in menu [5137]
5132 AnIn Max
Stp 10.0V/20.00mA
Default: 0.000
Range: -10,000.000 – 10,000.000
NOTE: With “AnIn Min”, “AnIn Max”, “AnIn Function Min”
and “AnIn Function Max” settings, loss of feedback
signals (e.g. voltage drop due to long sensor wiring) can
be compensated to ensure an accurate process signal.
