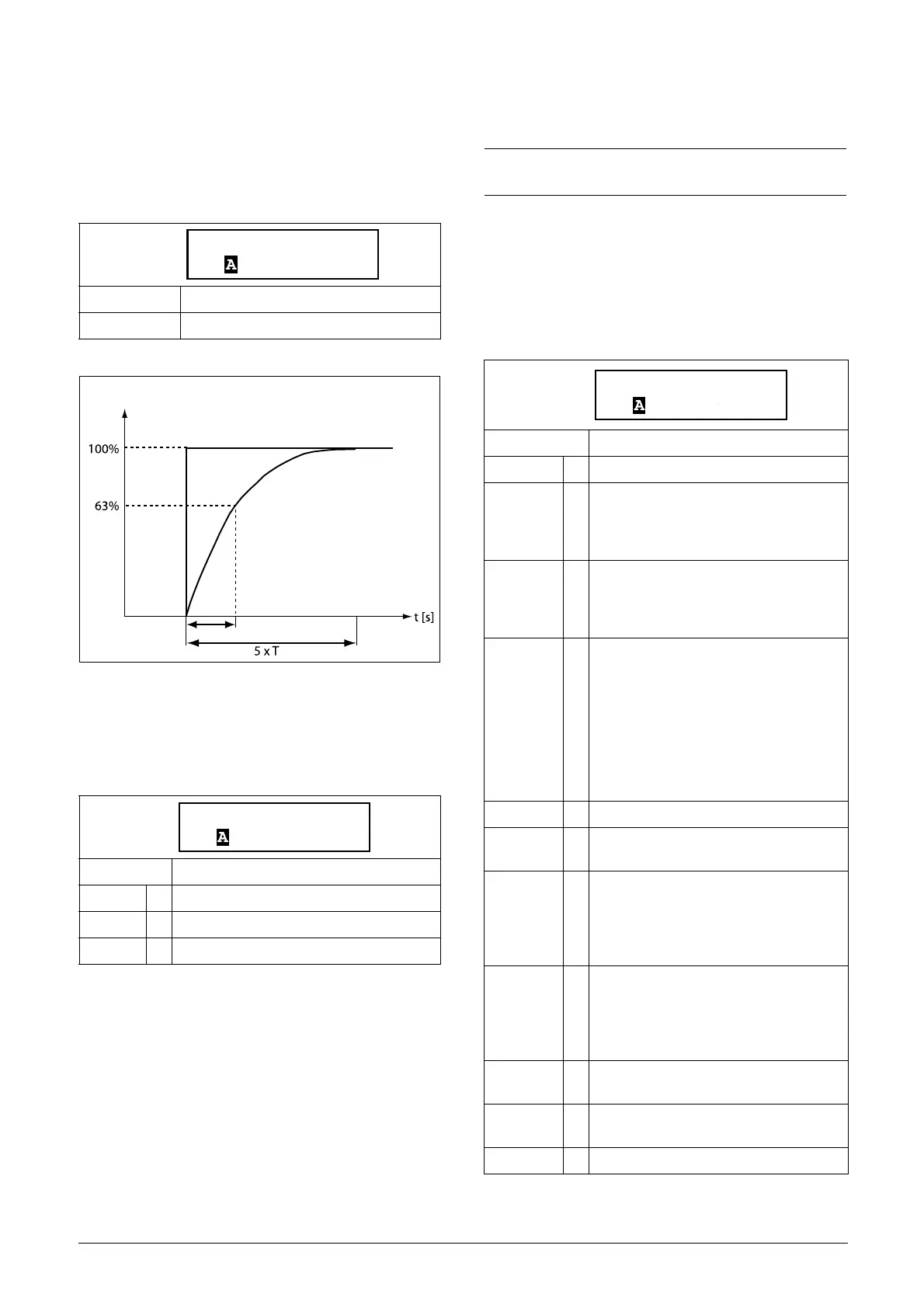

108 Functionality CG Drives & Automation, 01-5980-01r2
AnIn Filter [5139]
If the input signal is unstable, the filter can be used to
stabilise the signal. See Fig. 62. This will result in a 63%
change of the input signal within the set “AnIn Filter time”
(T). After 5 times the set time (i.e. 5xT), AnIn will have
reached 100% of the input change.
Fig. 62
AnIn Enable [513A]
Parameter for enable/disable analogue input selection via
digital inputs (DigIn set to function “AnIn Select”).
8.5.2 Digital Inputs [520]
Submenu with all the settings for the digital inputs.
Digital Input 1 [521]
To select the function of the digital input.
On the standard control board there are four digital inputs.
If the same function is programmed for more than one input,
that function will be activated according to “OR” logic if
nothing else is stated.
Default: 0.100 s
Range: 0.001 – 10.0 s
Default: On
On 0 AnIn is always active
!DigIn 1 AnIn is only active if the digital input is low.
DigIn 2 AnIn is only active if the digital input is high.
AnIn change
Original AnIn signal
Filtered AnIn signal
NOTE: Additional inputs will become available when the
I/O option boards are connected.
Default: Run FWD
Off 0 The input is not active.
Stop 1
Stop command according to the selected
Stop mode in menu [340].
NOTE: The Stop command is active low.
NOTE: Activated according to “AND” logic.
Reset 2
Reset command. To reset a Trip condition
and to enable the Autoreset function.
NOTE: Normal reset is always Edge
controlled. Auto reset is Level controlled
Enable 3
Enable command. General start condition
to run the softstarter. If made low during
running, the output of the softstarter is cut
off immediately, causing the motor to coast
to zero speed.
NOTE: If none of the digital inputs are
programmed to “Enable”, the internal
enable signal is set active.
NOTE: Activated according to “AND” logic.
Run FWD 4 Run forward command.
Run REV 5
Run reverse command.
External contactors required.
Jog FWD 6
Activates the Jog forward function. Gives a
run command with set Jog speed and
direction, menu [350].
NOTE: Always level controlled even though
edge control may be chosen in menu [21A].
Jog REV 7
Activates the Jog reverse function. Gives a
run command with set Jog speed and
direction, menu [350].
NOTE: Always level controlled even though
edge control may be chosen in menu [21A].
Set Ctrl 1 8
Activates other parameter set. See Table
29 for selection possibilities.
Set Ctrl 2 9
Activates other parameter set. See Table
29 for selection possibilities.
Loc/Rem 10 Activates local mode defined in [2173].
