CG emotron TSA Series User Manual

CG Drives & Automation 01-5980-01r2 Connections 19
3.1.1Busbar distances on Emotron
TSA softatarter

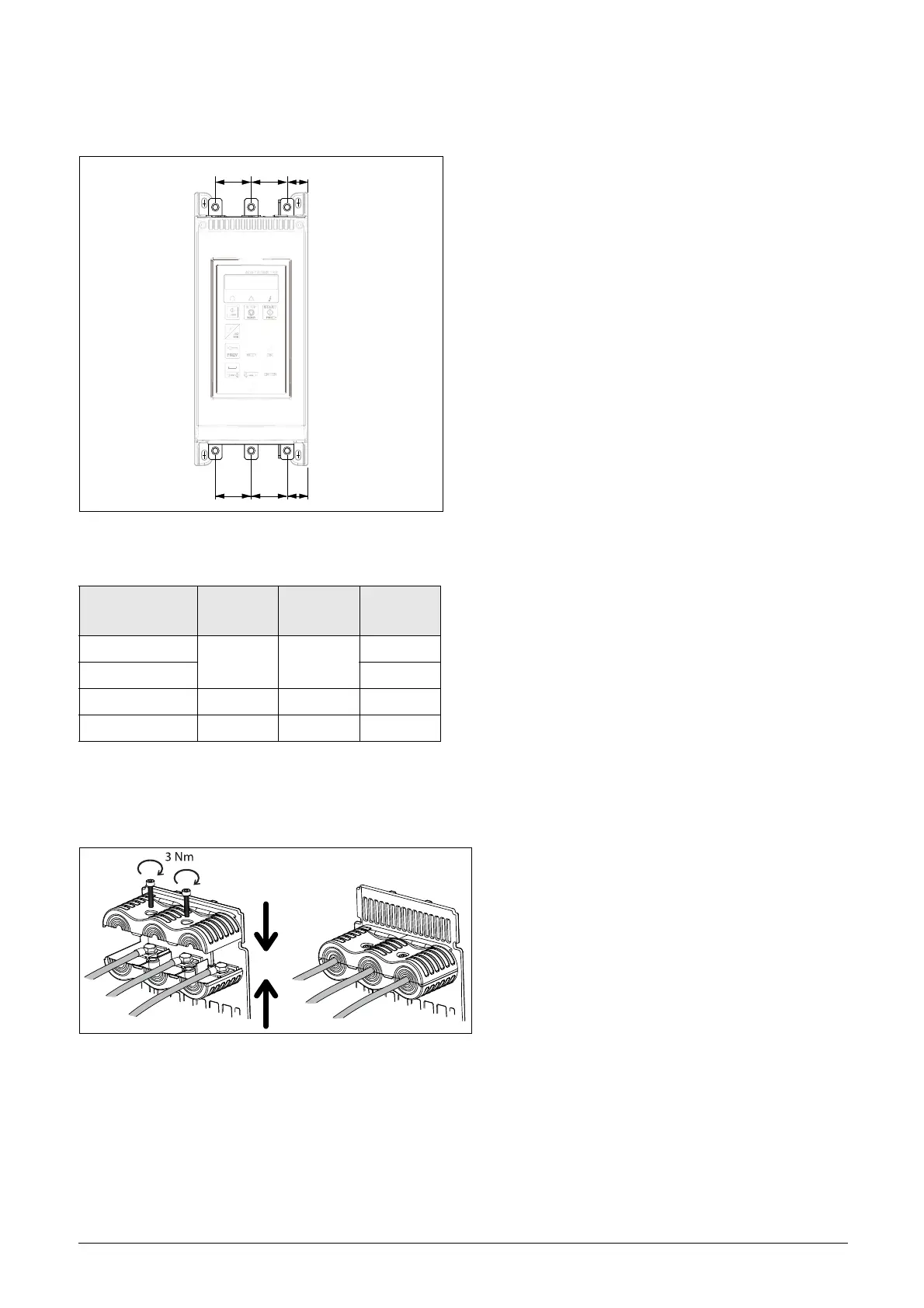

Fig. 15 Busbar distances general drawing
3.1.2Cable covers
When the Mains and motor cables are connected, mount
the cable covers according to Fig. 16.
Fig. 16 How to mount the cable covers general drawing.
Table 10 Busbar distances.
TSA
frame size
Dist. W1
[mm (in)]
Dist.W2
[mm (in)]
Dist.W3
[mm (in)]
1
23 (0.9) 40 (0.39)
40 (0.39)
2
3 35 (0.9) 63 (2.48) 63 (2.48)
4 44 (0.9) 83 (3.27) 83 (3.27)
W3
W3 W2
W1
W1
W2
