12. Options
The available standard options are briefly described here.
Some of the options have their own instruction or
installation manual. For more information please contact
your supplier.
12.1 External control panel
The option may be useful, for example for mounting control
panel in a cabinet door (Fig. 93). Maximum distance
between softstarter and external control panel is 3 metres.

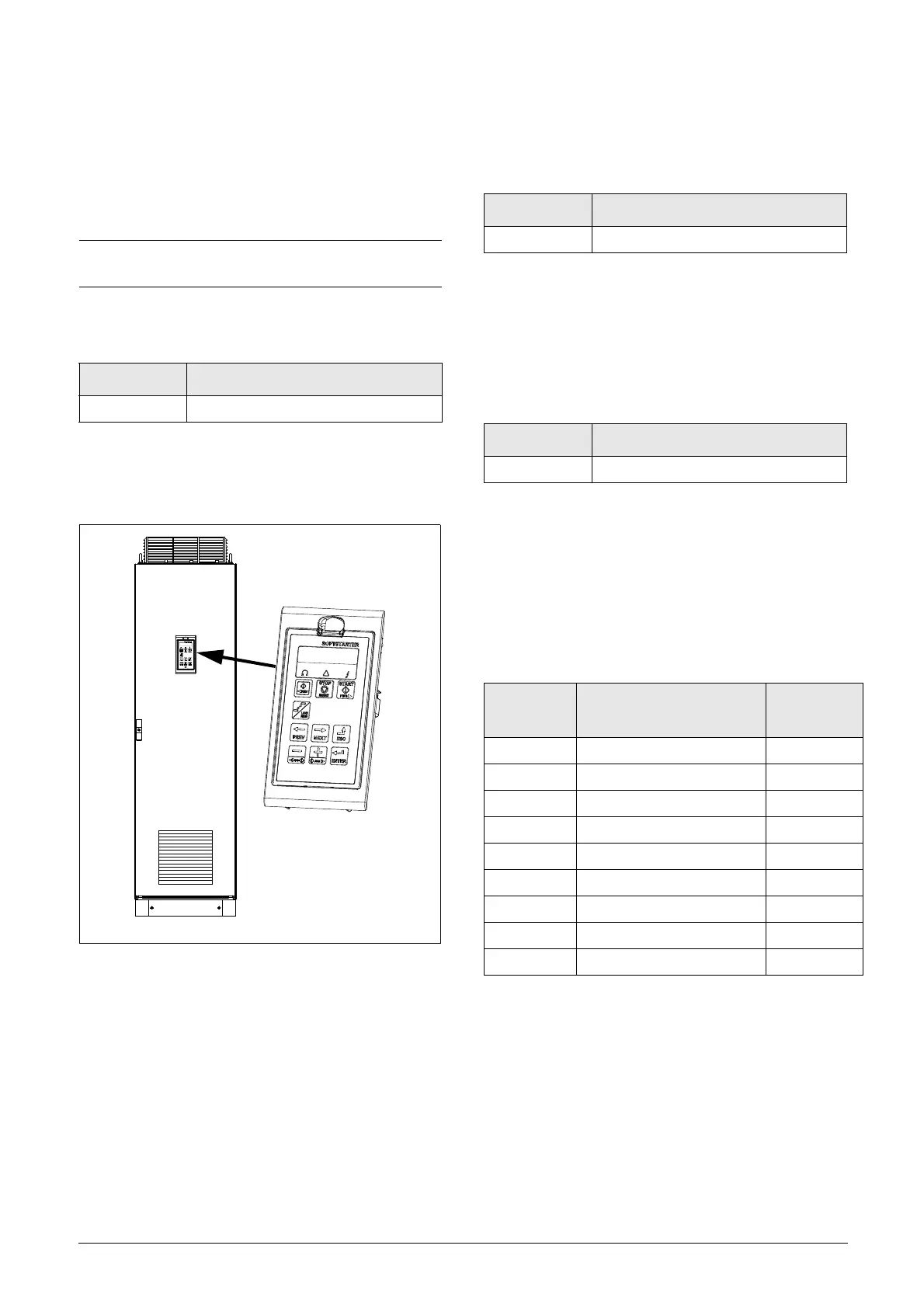

Fig. 93 External control panel in mounting cassette.
12.2 EmoSoftCom
EmoSoftCom is an optional software that runs on a personal
computer. It can also be used to load parameter settings
from the softstarter to the PC for backup and printing.
Recording can be made in oscilloscope mode. Please contact
CG Drives & Automation sales for further information.
12.3 I/O Board
Each I/O option board 2.0 provides three extra relay outputs
and three extra isolated digital inputs (24V). This option is
described in a separate manual. Maximum two option
boards can be mounted (I/O or PTC/PT100)
12.4 PTC/PT100
The PTC/PT100 2.0 option board for connecting motor
thermistors and max 6 PT100 elements to the softstarter is
described in a separate manual. Maximum two option
boards can be mounted (I/O or PTC/PT100)
12.5 Serial communication
and fieldbus
For communication with the softstarter there are several
option modules. There are different options for Fieldbus
communication and two serial communication options with
galvanic isolation, the RS485- and USB option. These
options are described in a separate manual.
NOTE: Emotron TSA softstarters have as standard
coated control boards and coated option boards.
Part number Description
01-5406-00 Panel kit complete including panel
RITTALRITTALRITTAL
Softstarter
cabinet
Part number Description
01-3876-51 I/O option board 2.0
Part number Description
01-3876-58 PTC/PT100 2.0 option board
Part number Description
From TSA
Software version
(See menu [922])
01-5385-54 TSA Isolated RS485 module 1.0X
01-5385-55 TSA Profibus module 1.0X
01-5385-56 TSA DeviceNet module 1.0X
01-5385-59 TSA Modbus/TCP module 1.0X
01-5385-60 TSA EtherCAT module 1.26
01-5385-61 TSA Profinet IO 1-port module 1.0X
01-5385-62 TSA Profinet IO 2-port module 1.0X
01-5385-63 TSA Isolated USB module 1.0X
01-5385-64 TSA EtherNet IP 2-port module 1.25
