System testing 7-53
6200 Packet-Optical Platform Installation, Commissioning, and Testing Procedures
Release 1.1 009-6200-201 Draft Issue 1
Copyright
©
2014 Ciena
®
Corporation September 2014
Procedure 7-11 (continued)
Testing Traffic Probe
Step Action
12 Similarly, any frames from other ports other than the mirror ports should also
get dropped at the Eth-2 port
13 In Eth-1, instead of selecting the direction of traffic mirroring as 'Both', select
the option 'Ingress'. In this case, traffic that is directed from the client side to
the ethernet port only will get mirrored onto the port Eth-2.
14 Frames that are transmitted from TS1 to TS3 will be mirrored to Eth-2.
Frames that are being transmitted from TS3 to TS1 should not be mirrored
onto Eth-2.
15 Similarly, if the traffic direction is selected as 'Egress', then traffic from TS3 to
TS1 will get mirrored onto Eth-2. Traffic from TS1 to Ix3 will not get mirrored
onto Eth-2
16 Ensure that if other ports in the same VLAN are configured to carry traffic,
then that traffic does not get mirrored on Eth-2, if the port mirror is not
configured for that port.
17 Check that reserved MAC addresses like multicast BPDUs, pause frames are
not mirrored.
18 All configuration done on a node should get deleted on changing mode from
dot1q to Q-in-Q or the other way around. But port mirroring configuration
persists.
—end—

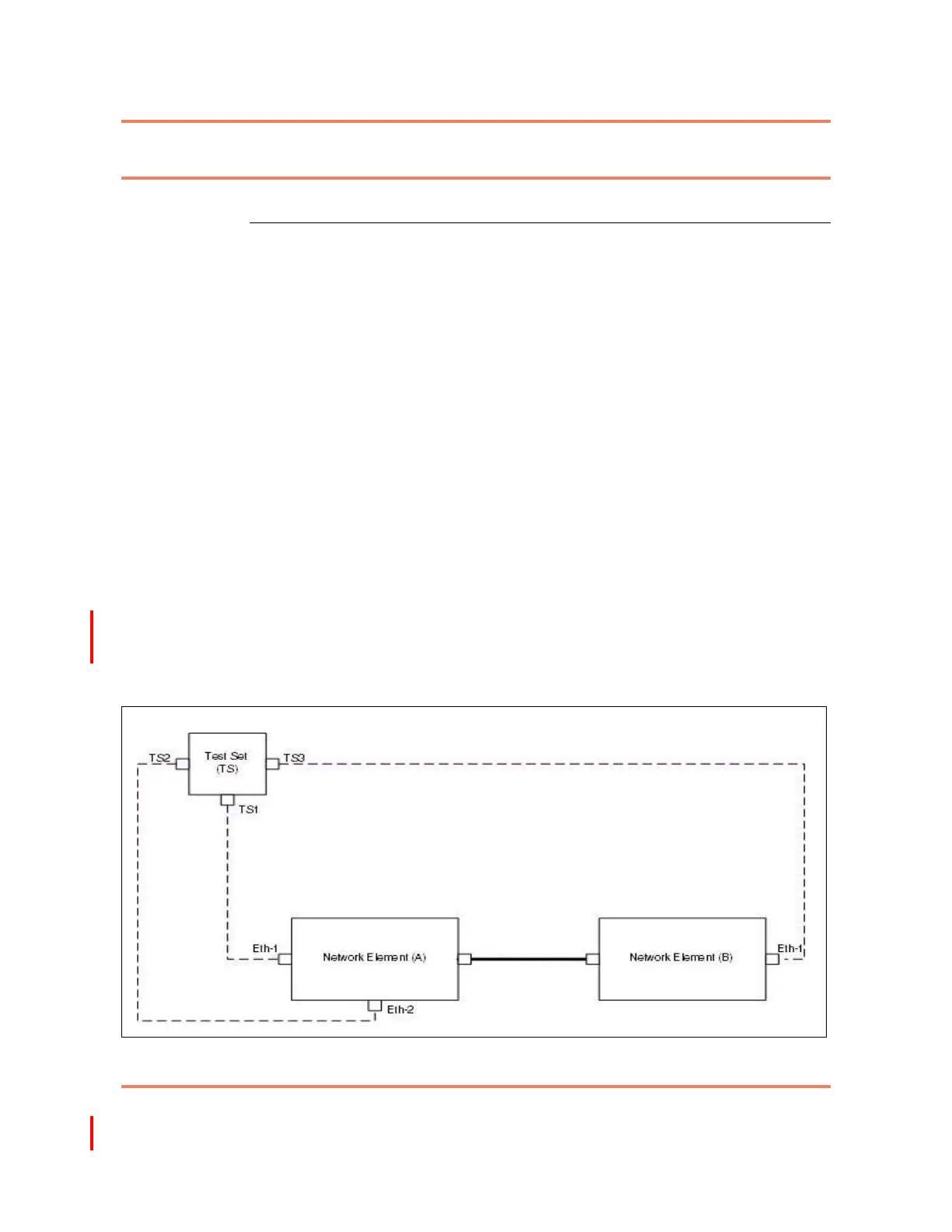

Figure 7-11
Testing Traffic Probe
