5-48 Installing the 6200 network element
6200 Packet-Optical Platform Installation, Commissioning, and Testing Procedures
Release 1.1 009-6200-201 Draft Issue 1
Copyright
©
2014 Ciena
®
Corporation September 2014
Procedure 5-16
Connecting Ethernet cables to 4xFE interfaces of 6G
PKT SW circuit pack
Use this procedure to connect the ethernet cables to the 4xFE interfaces of
the 6200 network element.
Prerequisites
Make sure that the following tools and materials are available:
• four RJ-45 Ethernet cables
• cable ties
Action
Step Action
1 Identify the Ethernet cables.
2 Connect the appropriate Ethernet cables to the RJ-45 ports on the 6G PKT
SW circuit pack. For details, refer to Figure 5-27 on page 5-48.
—end—

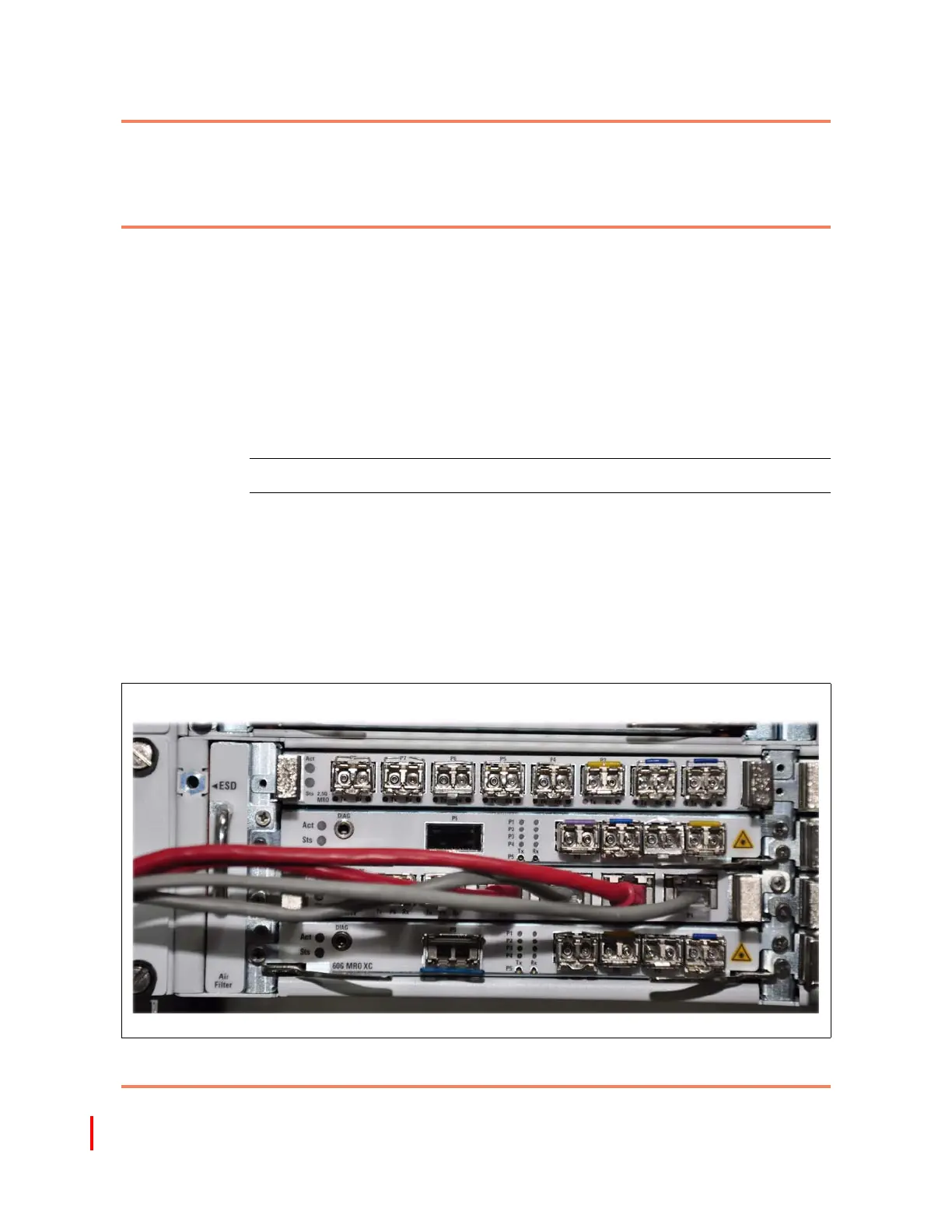

Figure 5-27
Connecting to FE ports
