Installing the 6200 network element 5-13
6200 Packet-Optical Platform Installation, Commissioning, and Testing Procedures
Release 1.1 009-6200-201 Draft Issue 1
Copyright
©
2014 Ciena
®
Corporation September 2014

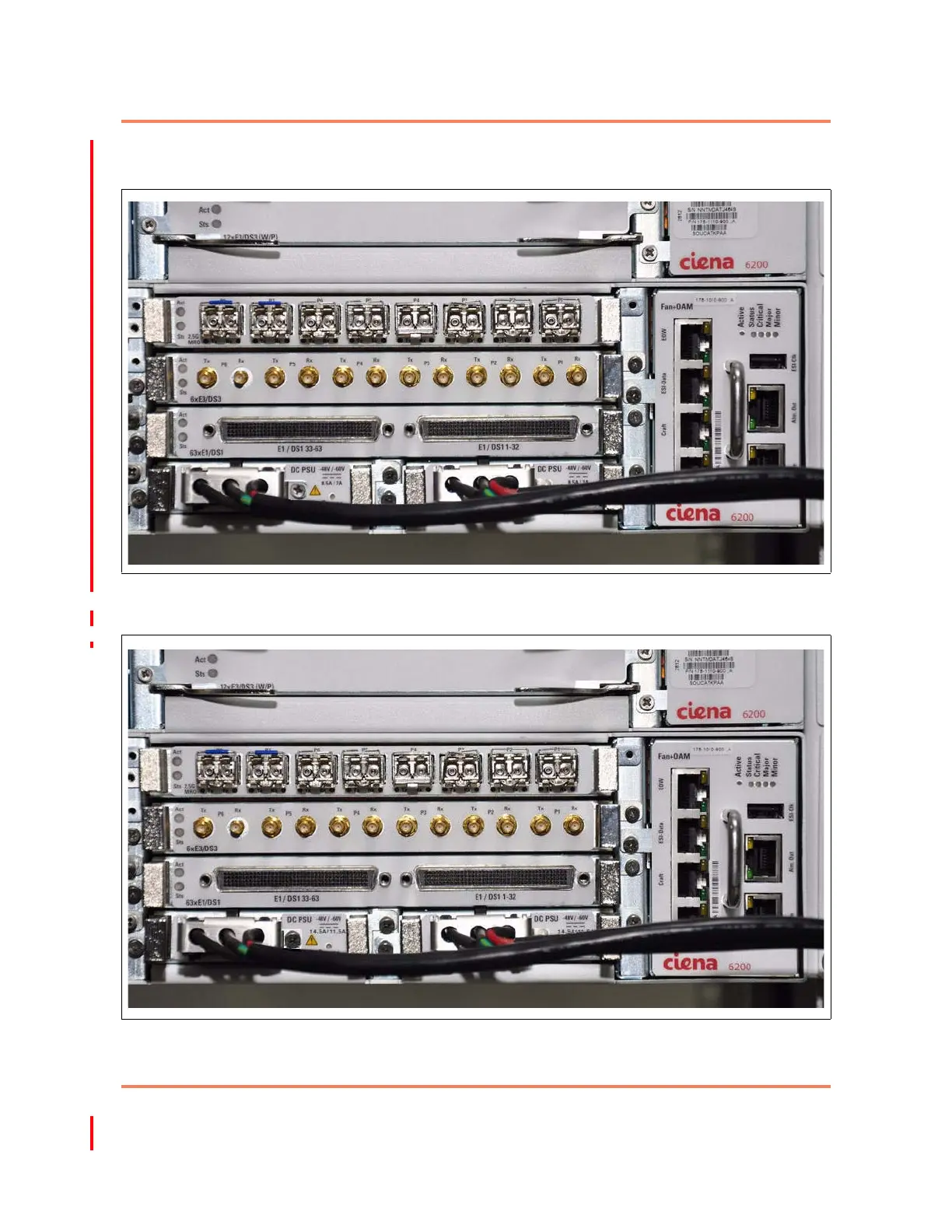

Figure 5-4
Routing of the power cable for the base chassis (325W DC PSU)
Figure 5-5
Routing of the power cable for the base chassis (500W DC PSU)
