SERVICE MANUAL –Post eVolve Smart
5 - PERIPHERALS OVERVIEW
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941 12
Web: www.circontrol.com – E-mail: circontrol@circontrol.com
5 PERIPHERALS OVERVIEW
This section describes all the devices that have communication in the Charge Point and
describes, step by step, how to setup any of its components if are replaced.
All devices are interconnected via RS-485 with the master: CCL1-MINI (3). In this
configuration, the master device CCL1-MINI is centrally located along the set of RS-485
wires, there are some slave devices located at the end of the wires that would provide
parameters and data to master device in real time.

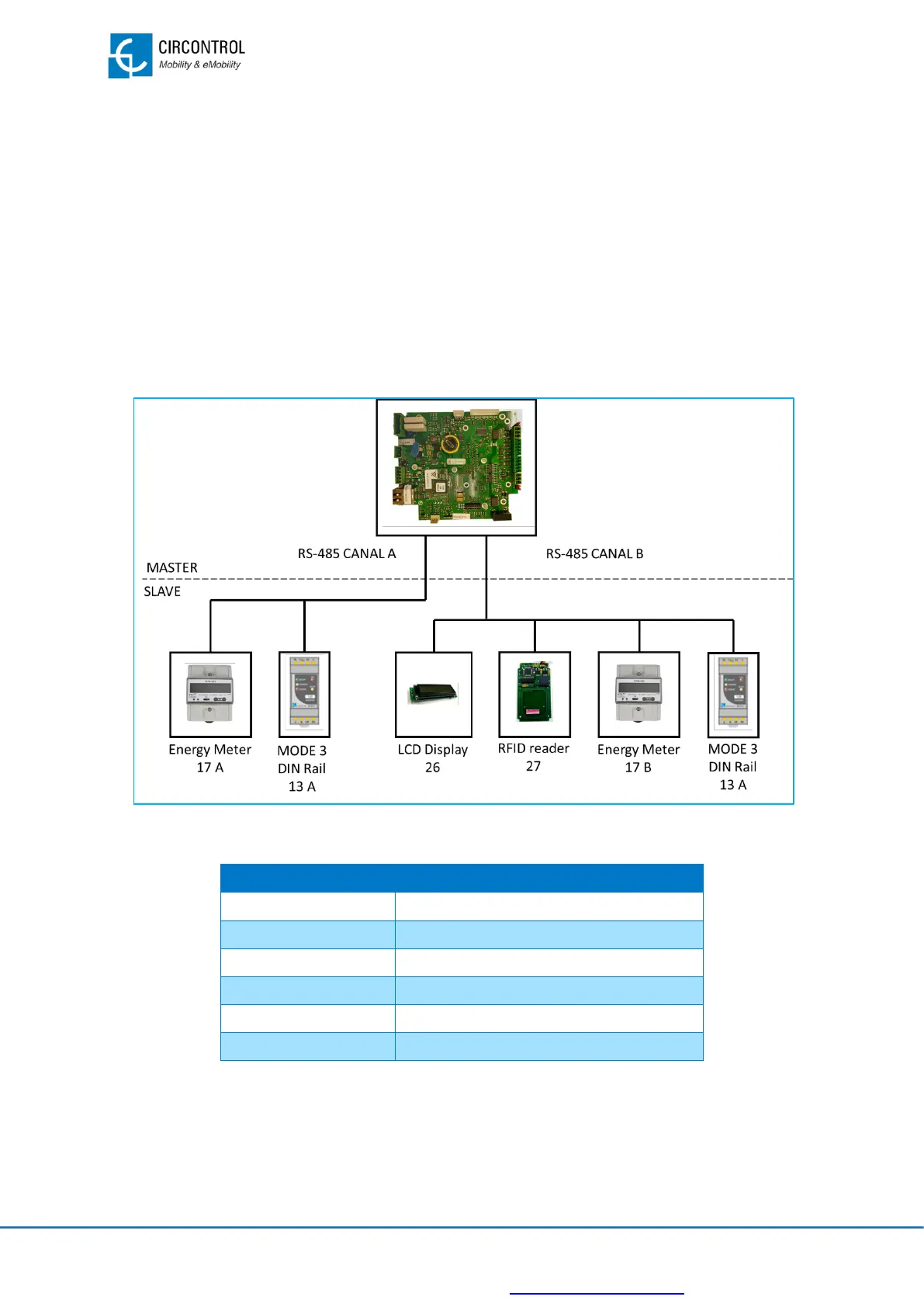

Schematic below details the physical connections RS-485 for all the devices.
