LED beacon lights
It is a connector entirely dedicated to control the LED beacon lights.
RS-485 communications

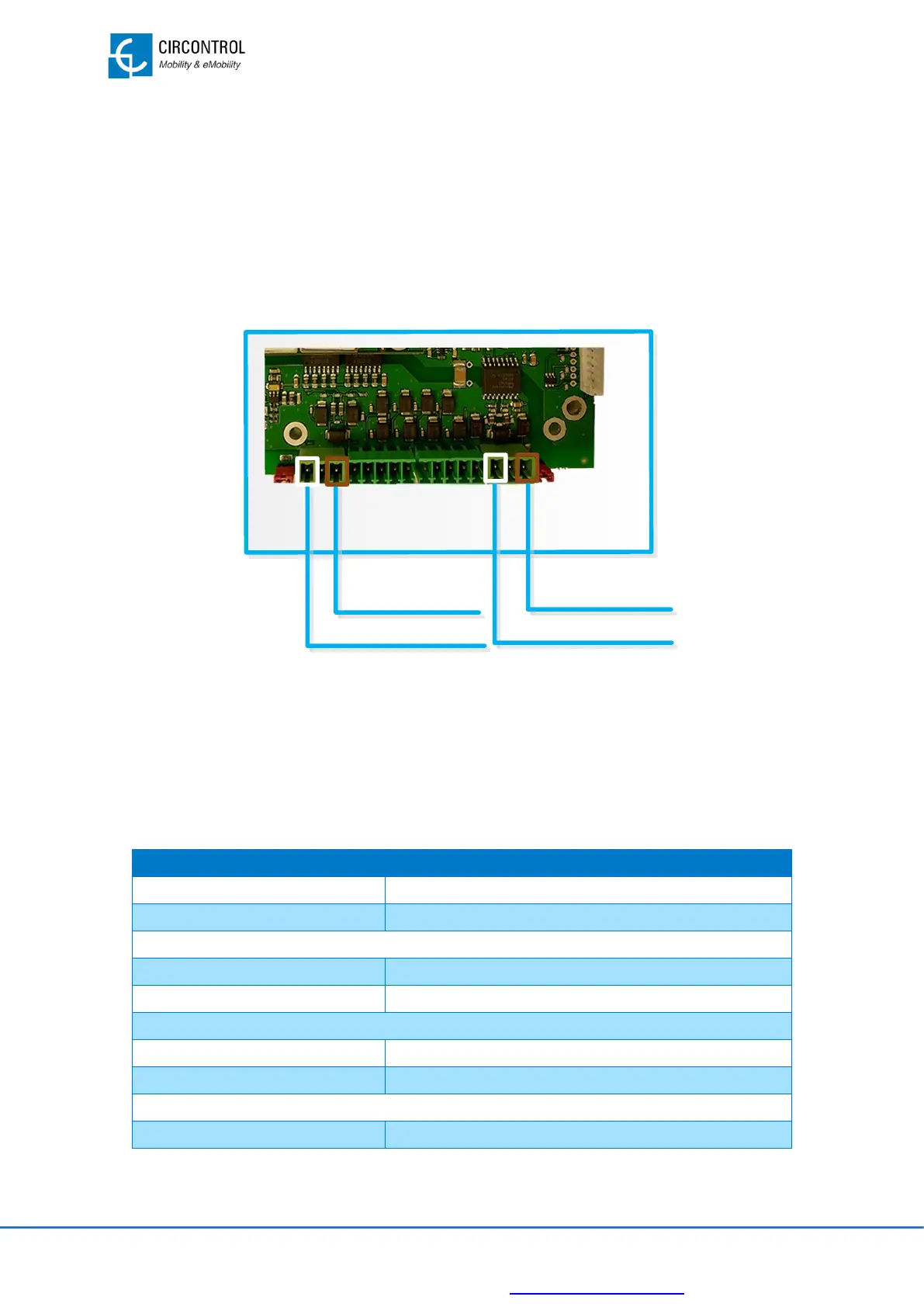

As seen in the previous sections of this service manual, CCL1-MINI device has two RS-
485 serial ports in order to communicate with slave devices. The following image allows
identifying the two serial ports available on CCL1-MINI:
RS485
port A
Pin
+ (
A
)
brown
Pin - (B) White
RS485
port B
Pin
+ (
A
)
brown
Pin - (B) White
Ethernet port and embedded modem and GPRS antenna
They are dedicated to access the setup web page of the Charge Point and used as a
method to link the Charge Point with the internet, allowing the access and the control,
either manually or by a Central System (OCPP protocol).
6.1.2 TECHNICAL CHARACTERISTICS
POWER SUPPLY
Input voltage
12V DC
Working temperature
-10…+60ºC
SERIAL COMMUNICATIONS
Type
2xRS-485, TTL
Baud rate supported
4800, 9600, 19200, 38400, 57600, 115200bps
CONNECTIVITY
Ethernet
10/100 Base-T
Mobile
2G, 3G, 4G
TIME SETUP
Clock
RTC. Synchronization with an internet time server
