SERVICE MANUAL –Post eVolve Smart
8 - OTHER DEVICES
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941 42
Web: www.circontrol.com – E-mail: circontrol@circontrol.com

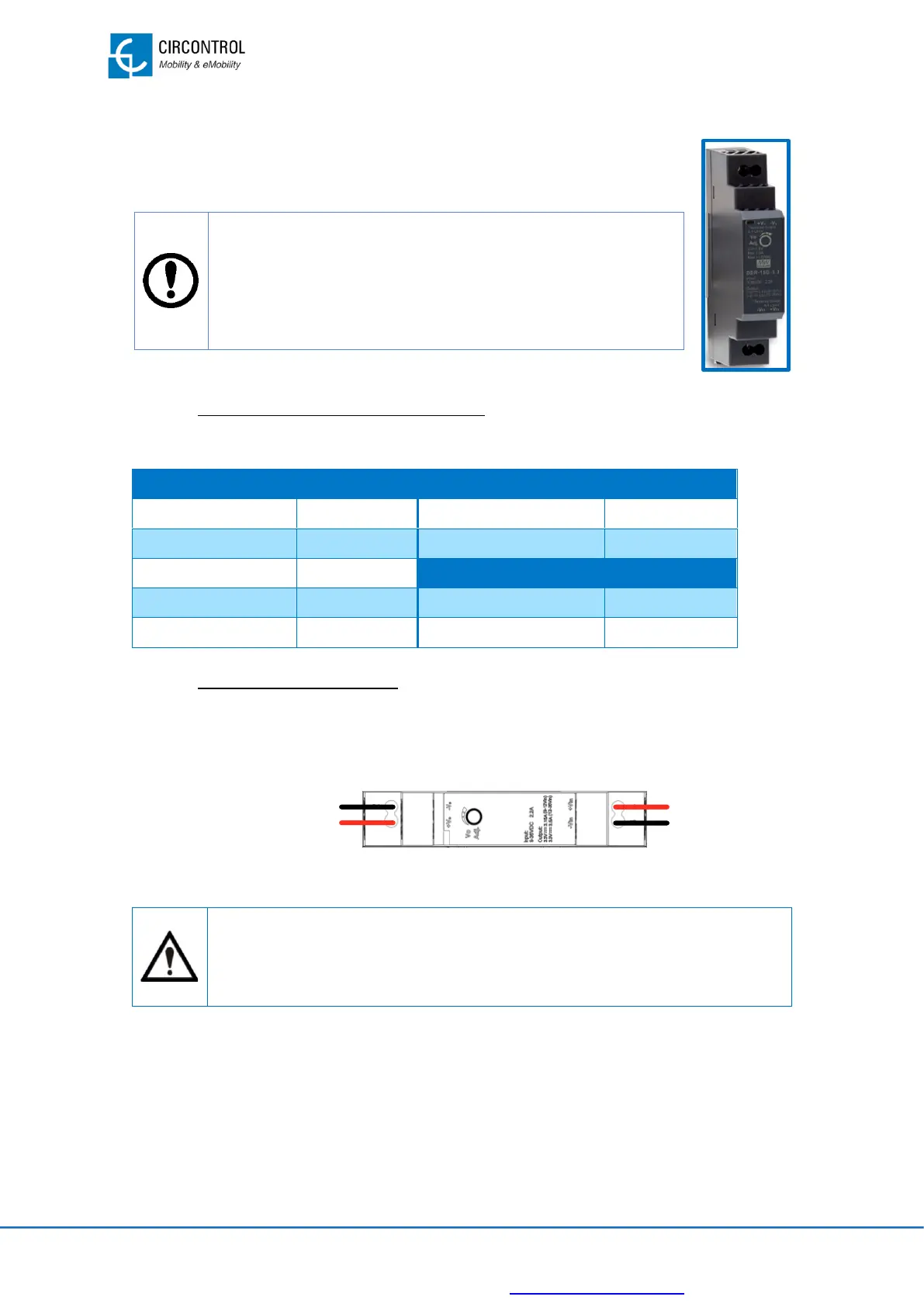

8.3.2 RFID LEGIC READER POWER SUPPLY (14) (OPTIONAL)
The RFID LEGIC reader power supply is a device that converts the 12Vdc
voltage to 5Vdc to power the RFID LEGIC reader.
- Check output voltage at every Charge Point maintenance
of, in order to ensure that all devices will work properly.
- RFID LEGIC READER device will not work properly if the
output of power supply is not at least 5V.
8.3.2.1 TECHNICAL CHARACTERISTICS
A table of technical specifications of the power supply is shown below:
8.3.2.2 WIRING CONNECTION
Following image shows a detailed scheme of the power supply connections. Please,
refer to “ TECHNICAL DATA” section for more details.
- Each wire connected to the power supply is labelled for identification.
Do not connect in reverse order; it could cause irreparable damage
on the Charge Point equipment.
+12
VDC
-12
VDC
+5
VDC
-5
VDC
VA3A0000088
VA3A0000089
G03.1
2
1
4
3
