8.5 INTERFACE RGB BEACON LED CONVERTER BOARDS (29)
Interface LED is composed by two boards, one for each Charge Point plug/inlet.
8.5.1 LED BOARD WIRING CONNECTION

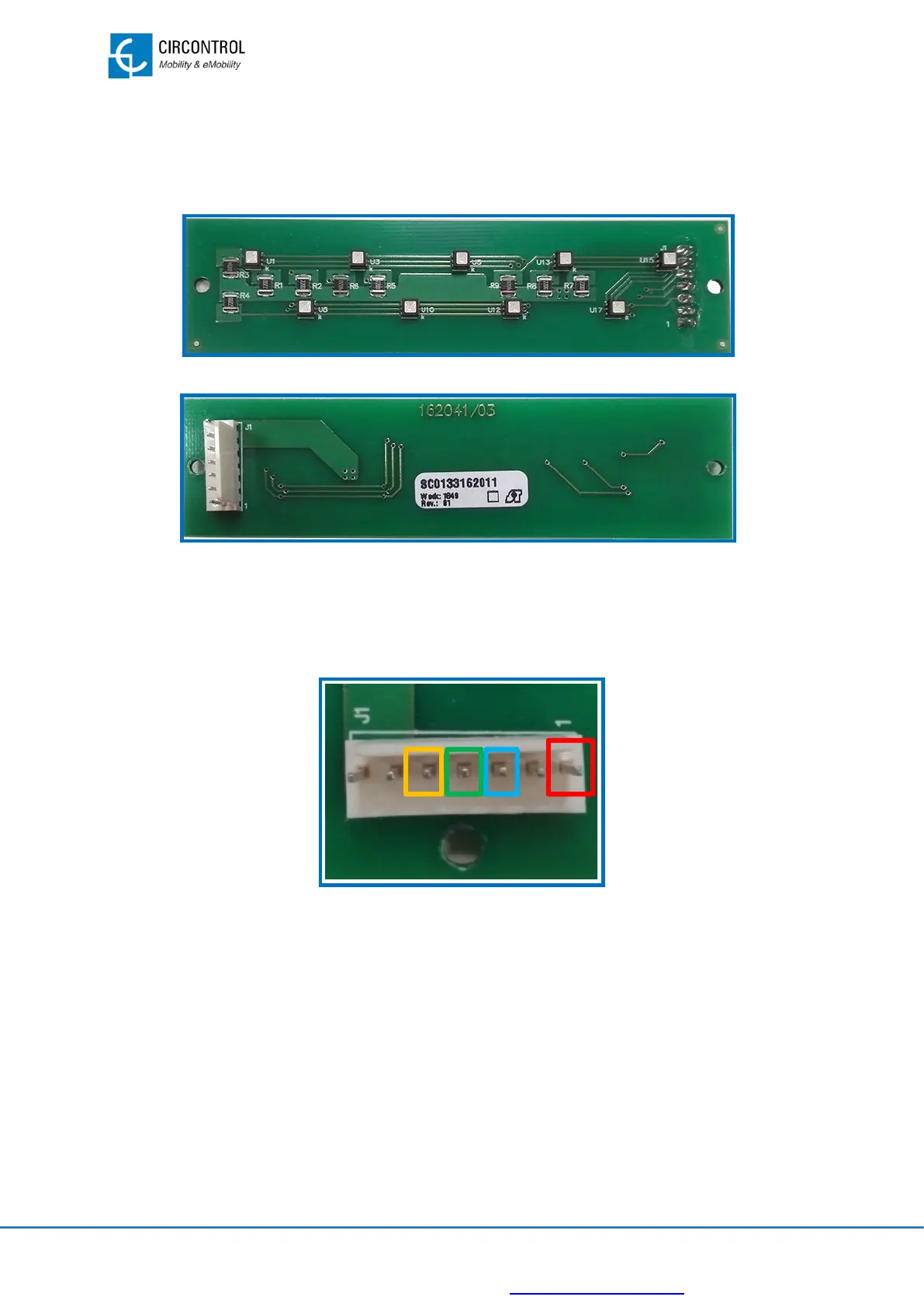

Image below shows a basic scheme of the board wiring connections. Please, refer to
“8.5.2” section for more details.
R G B
+5V
