12.1.3 ERROR TAMPER
CONCEPT
The tamper detects an error when the door is open.
SOLUTION
When the Charge Point is open, tamper switch notifies it and the Charge Point switches
to an error state.

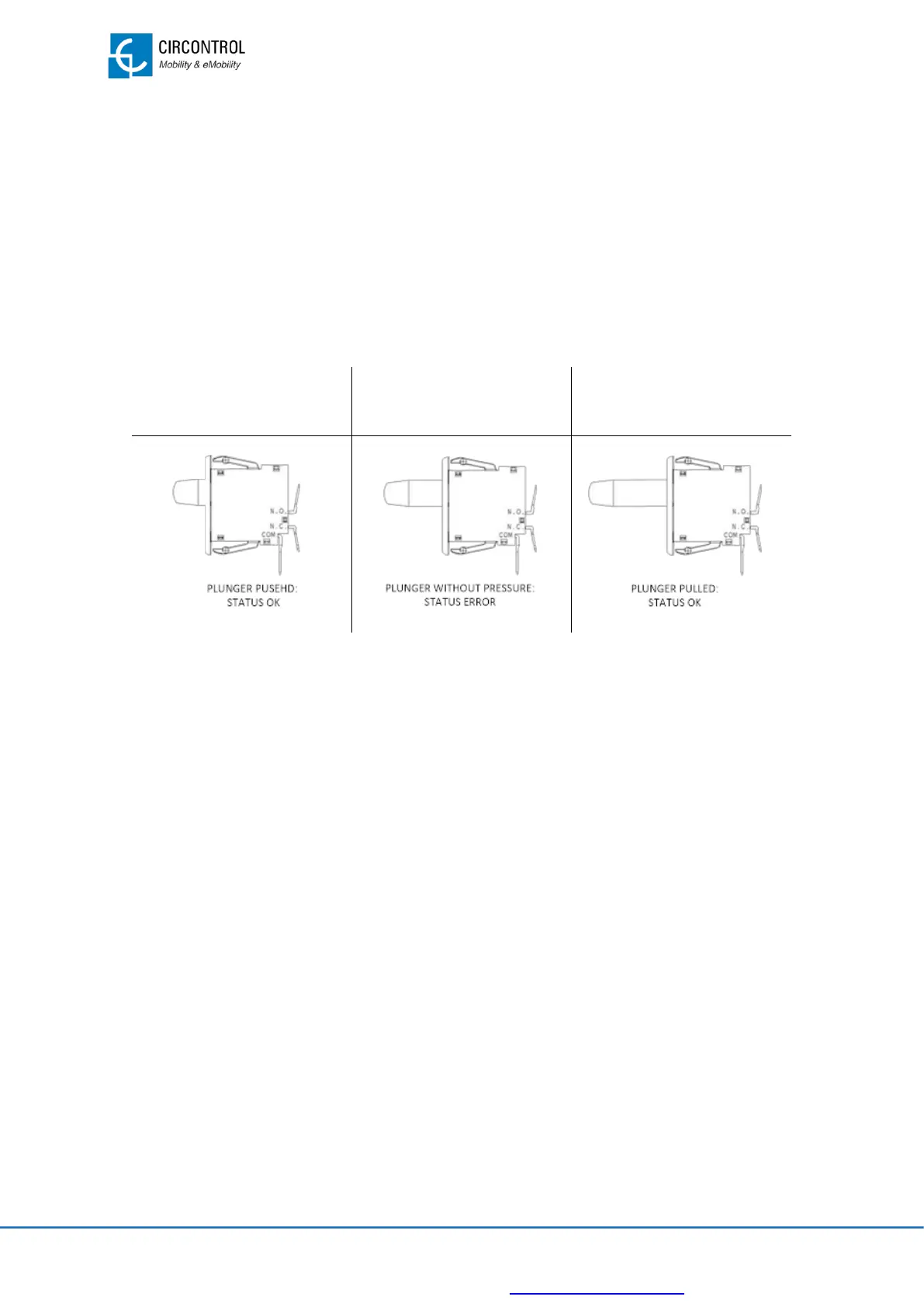

The tamper switch has three positions:
Door closed
Door opened
Technical personnel
action position
If the tamper switch is in “Plunger pulled” position and the error continue, check the
wiring.
For further information, please refer to “TAMPER SWITCH (18)“ section.
12.1.4 ERROR RCD
CONCEPT
Outlet A or B RCD protection is tripped. (Only in models with RCD trip monitoring).
SOLUTION
Check if any electrical issue is taking place in the Charge Point.
After the error is solved or if any error has been detected, rearm the RCD protection.
12.1.5 ERROR MCB
CONCEPT
Plug A or Plug B MCB protection is tripped. (Only in models with MCB trip monitoring).
SOLUTION
Check if any electrical issue is taking place in the Charge Point.
After the error is solved or if any error has been detected, rearm the MCB protection.
