SERVICE MANUAL –Post eVolve Smart
7 - CHARGE POINT SLAVE DEVICES
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941 29
Web: www.circontrol.com – E-mail: circontrol@circontrol.com
7.2.4.4 WIRING CONNECTION

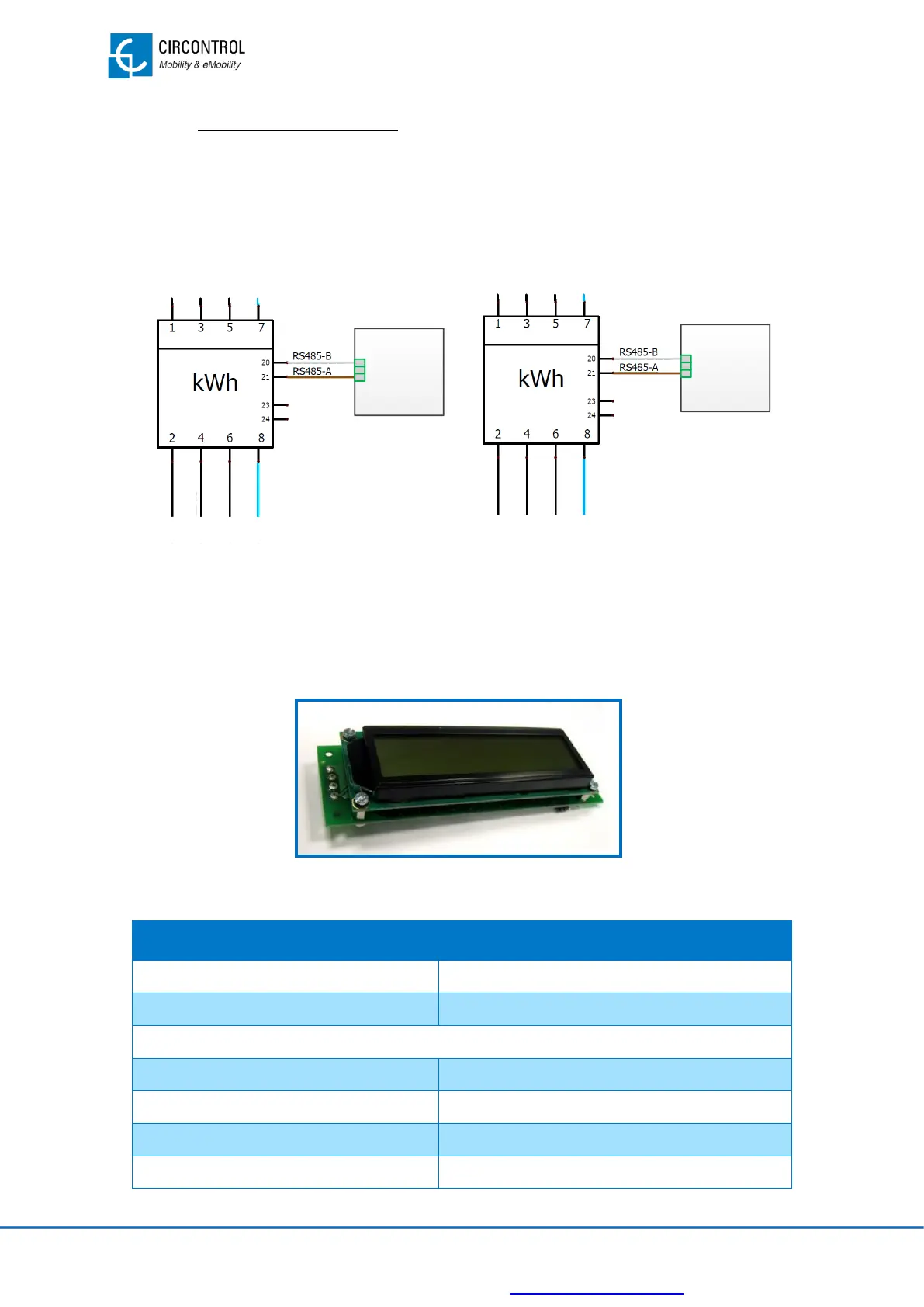

Following image shows a detailed schematic of the connections in the CCL1-MINI PCB
and in each Plug.
B
A
CCL1-MINI
Port A
L1 L2 L3 N
B
A
CCL1-MINI
Port B
L1 L2 L3 N
PLUG A
PLUG B
MCB
Q04.1
MCB
Q06.1
7.3 LCD DISPLAY (26)
The LCD Display informs the end-user about how to charge the EV and about the errors
to maintenance staff in case of fault. Information is displayed in real time and it shows
the power consumption, the charge duration and other information and instructions.
7.3.1 TECHNICAL CHARACTERISTICS
POWER SUPPLY
Voltage
12V DC
Working temperature
-10…+60ºC
SERIAL
Type
RS-485
Baud rate supported
4800, 9600, 19200 bps
Default peripheral number
63
Default baud rate
9600bps
