9.7 ANTI-VANDAL DOORS

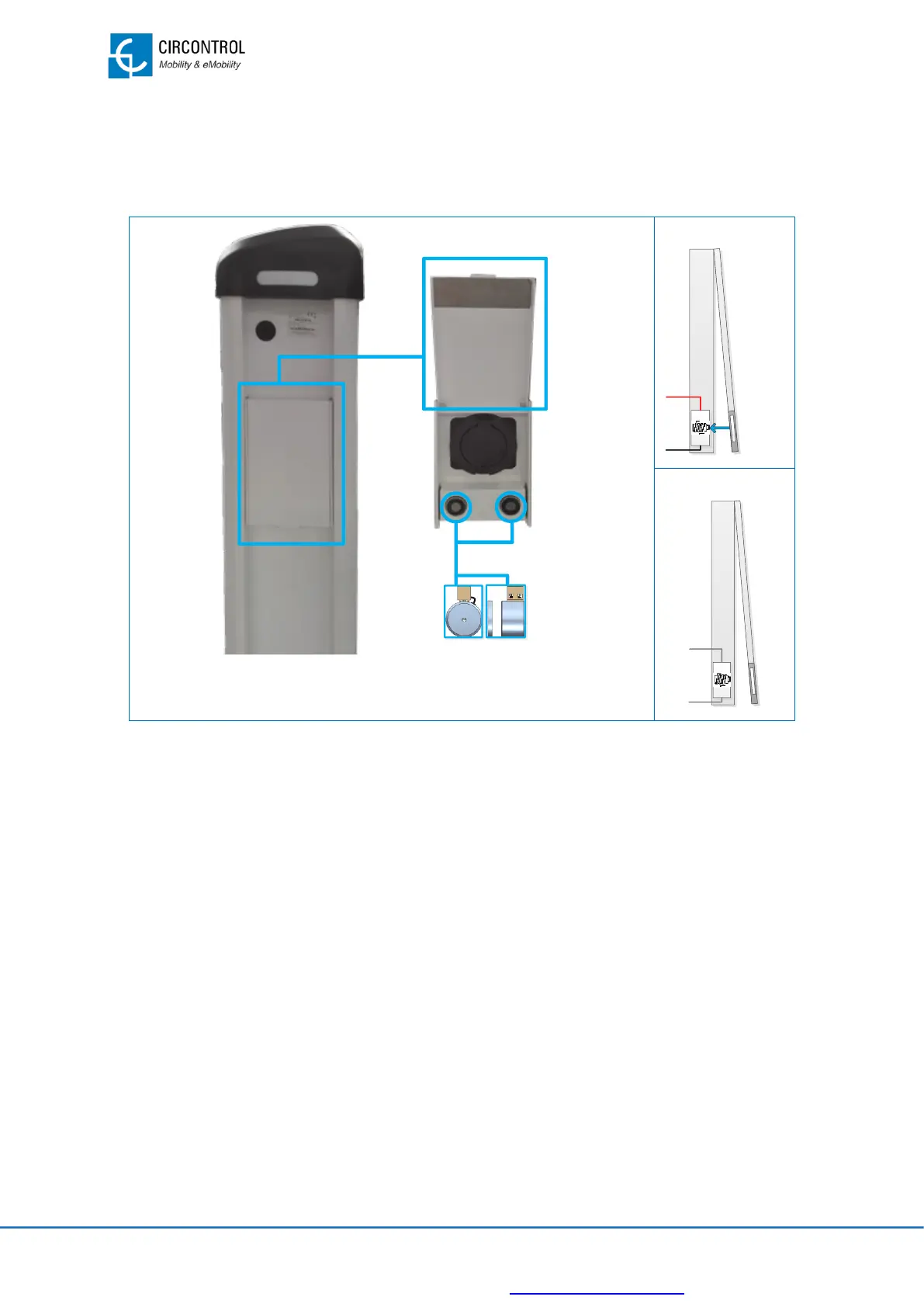

Anti-vandal doors system is composed by three components which are used to avoid
any vandal actions against the plugs or the electric parts.
Anti-vandal
Door
Electromagnet
Doors remain closed while the electromagnet circuit is activated.
Energized
PULL
Not energized
This circuit is controlled by the CCL1-MINI. Its digital outputs 1 and 2 are activated to
energize an electromagnetic circuit through relays. These digitals outputs are used to
control the LED status of these plugs also.
