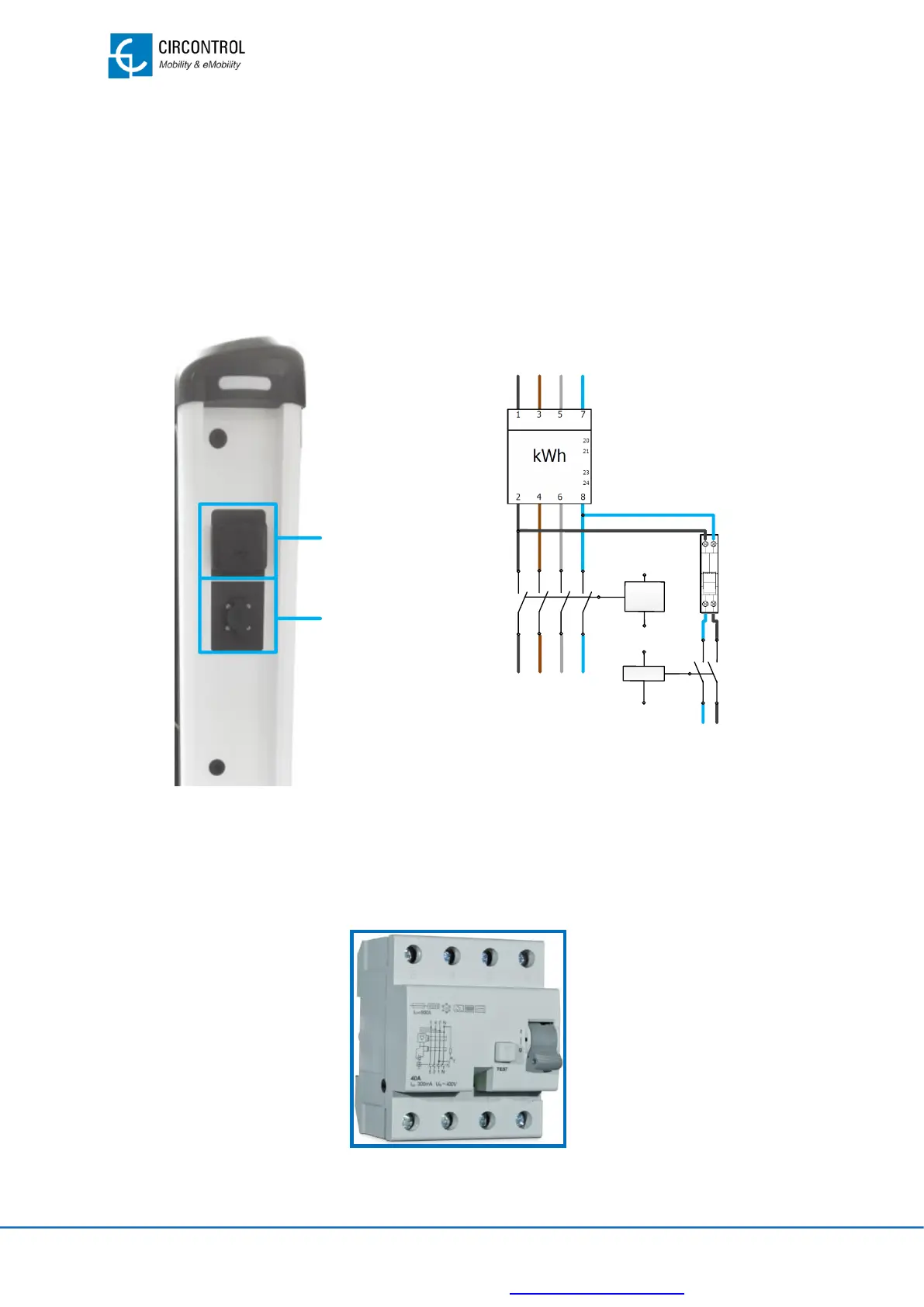

9.3 TYPE MIX 4 PLUGS TM4 (11,12)
The Charge Point eVolve Smart can have a configuration of one plug type 2 (IEC 62196-
2) and one plug CEE 7/3 for each line of power. However, it can only be used
simultaneously one of the two plugs per line of power.
Following image shows a detailed schematic of the connections. Please, refer to “
TECHNICAL DATA” section for more details.
SOCKET
TYPE 2
SOCKET
CE 7/3
SOCKET
CEE 7/3
A/B
MCB
Q04.1/06.1
N
P1 P2 P3
NP1 P2 P3
A1
K06.2
A2
N
K08.2/5
A1
A2
K04.1/
SOCKET
TYPE 2
A/B
9.4 RCD TYPE B (20)
The RCD of the eVolve Smart Charge Point can be Type B.
