SERVICE MANUAL Post eVolve Smart
9 - OPTIONAL DEVICES
CIRCONTROL, S.A. Innovació, 3 08232 Viladecavalls (Barcelona)
Tel.: +34 937 362 940 Fax: +34 937 362 941 49
Web: www.circontrol.com E-mail: circontrol@circontrol.com
9.1.2 LOCKING SYSTEM WITH MONOSTABLE CONTROL
The locking system without shutter works with monostable control.
9.1.2.1 WIRING CONNECTION

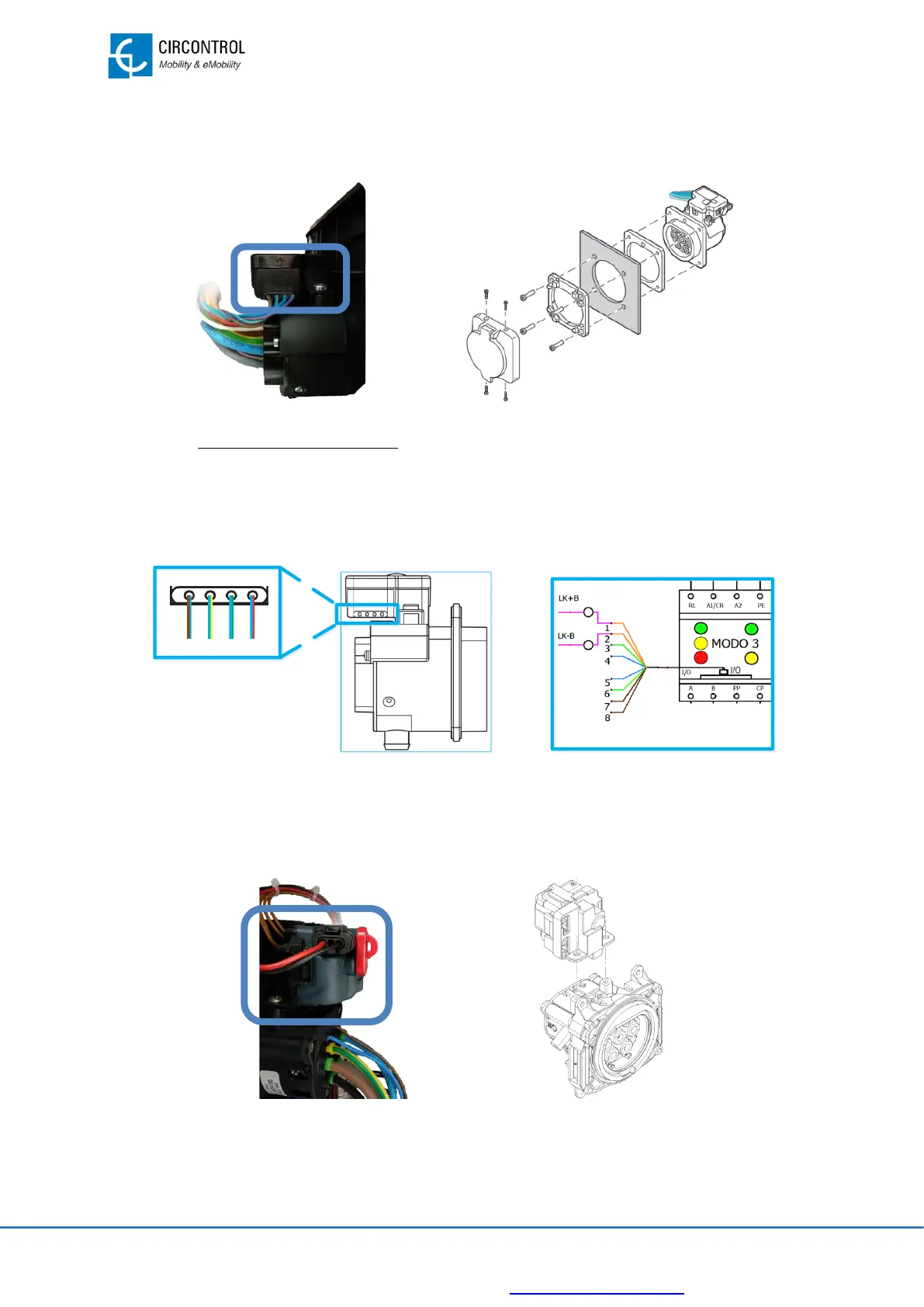

Following image shows a detailed schematic of the connections. Please, refer to
TECHNICAL DATA section for more details.
LK+B
LK-B
LK1LK2
M
V
PLUG + BLOKINGWIRING MODE 3 WIRING
Ethernet cable
9.1.3 LOOCKING SYSTEM WITH BISTABLE CONTROL
The locking system with shutter works with by-stable control.
