SERVICE MANUAL –Post eVolve Smart
7 - CHARGE POINT SLAVE DEVICES
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941 18
Web: www.circontrol.com – E-mail: circontrol@circontrol.com
7.1.2 DEVICE CONFIGURATION PROCEDURE
No additional configuration is required to operate with Mode 3 DIN rail device.
7.1.3 TECHNICAL CHARACTERISTICS
POWER SUPPLY
Voltage
85-290VAC / 120-410VDC
Frequency
47…63Hz
Working temperature
-10…+60ºC
MECHANICAL CHARACTERISTICS
Material
UL94-V0. Self-extinguishing
Protection
IP20
Dimensions
35 x 73 x 84.68mm
SERIAL
Type
RS-485
Baud rate supported
4800, 9600, 19200, 34800, 57600bps
Default peripheral number
96
Default baud rate
9600bps
7.1.4 ADDITIONAL INFORMATION
Communication with the device is only possible via RS-485 communications through
inputs 1 and 2.
The device integrates an Ethernet port, which does not allow connectivity to TCP/IP
networks. It is used for internal use as digital inputs and outputs.
Default factory Modbus address is set at 96 and baud rate is set to 19200bps at phase I
and 9600 at phase II.

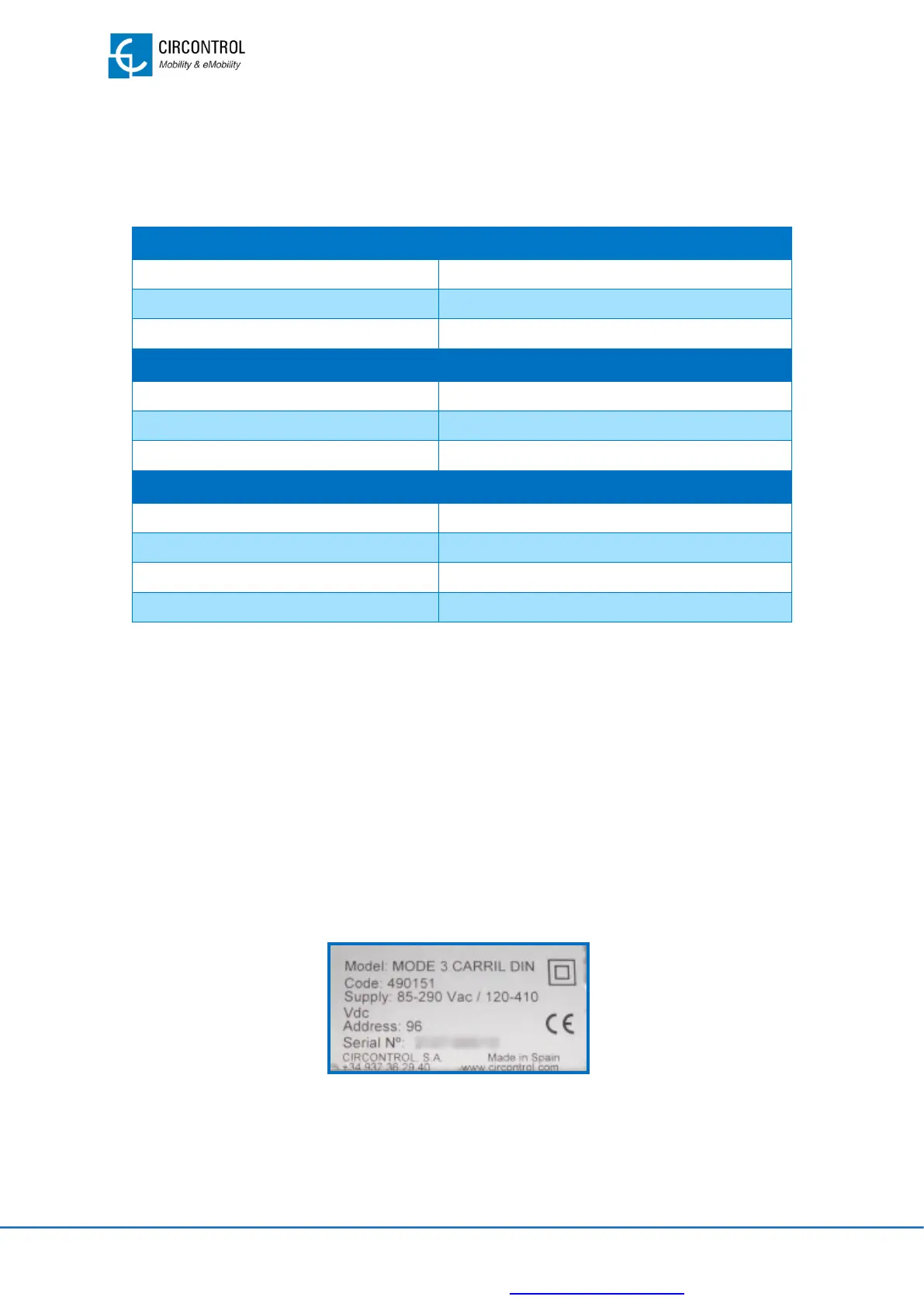

There is a label on the right side of the device with the specifications as shown below.
Please consider this information when it is replaced.
