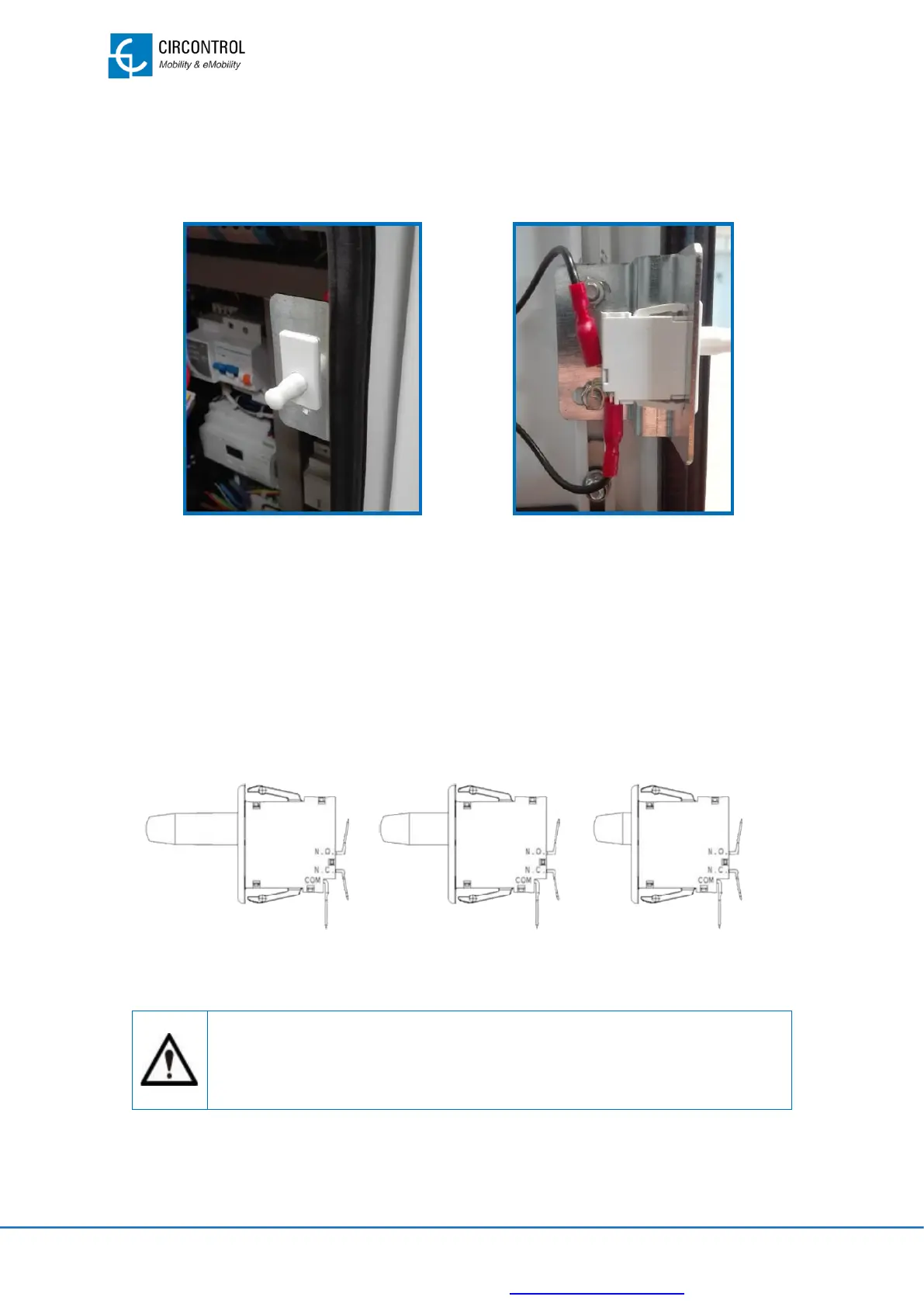

8.4 TAMPER SWITCH (18)
A tamper switch is a mechanical and electrical device connected to the frontal door that
sends a warning if the door is partially or fully open.
The switch tamper has 3 positions:
- Plunger pulled: The frontal door is open, and a trained technician has
pulled the plunger. The Charge Point will work as usual.
- Plunger not pushed: The frontal door is open. The Charge Point will detect
an error and it will stop any charge transaction process.
- Plunger pushed: The frontal door is closed. The Charge Point will have a
regular workflow.
PLUNGER PULLED:
STATUS OK
PLUNGER WITHOUT PRESSURE:
STATUS ERROR
PLUNGER PUSEHD:
STATUS OK
Electrical risk: The Charge Point continues energized and all their
components have electrical active parts that are accessible and
energized.
