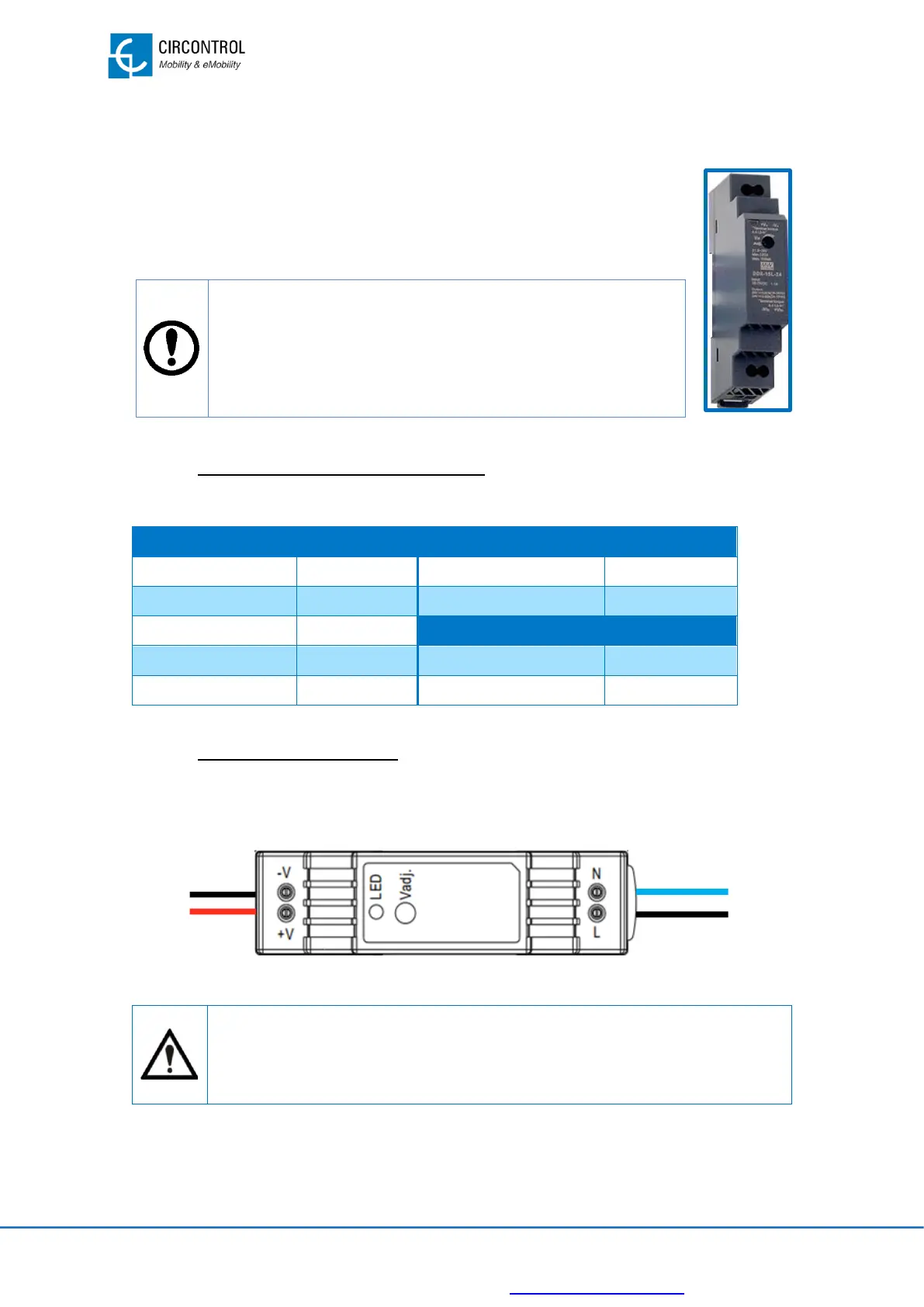

8.3 POWER SUPPLY (9)
8.3.1 MAIN POWER SUPPLY
The main power supply is a device that converts the 230Vac voltage to
12Vdc to supply power to different devices inside Charge Point (RFID
reader, CCL1-MINI device, etc.).
- Check output voltage at every Charge Point maintenance
of, in order to ensure that all devices will work properly.
- CCL1-MINI device will not work properly if the output of
power supply is not at least 12V.
8.3.1.1 TECHNICAL CHARACTERISTICS
A table of technical specifications of the power supply is shown below:
8.3.1.2 WIRING CONNECTION
Following image shows a detailed scheme of the power supply connections. Please,
refer to “ TECHNICAL DATA” section for more details.
-VDC
+VDC
Neutral
230 VAC
Phase
230 VAC
- Each wire connected to the power supply is labelled for identification.
Do not connect in reverse order; it could cause irreparable damage
on the Charge Point equipment.
