SERVICE MANUAL –Post eVolve Smart
6 - CHARGE POINT MASTER DEVICES
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941 15
Web: www.circontrol.com – E-mail: circontrol@circontrol.com

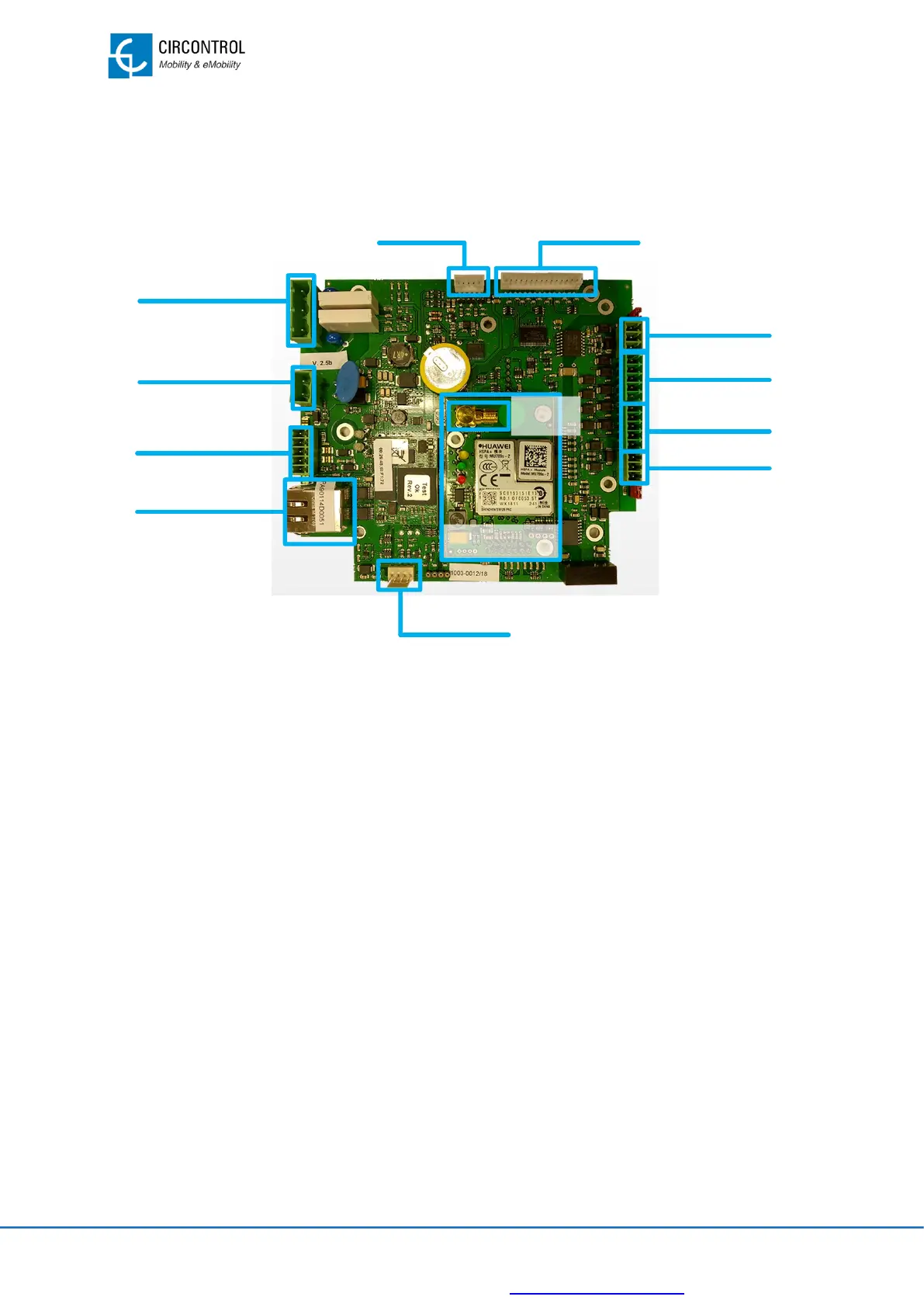

6.1.1 CCL1-MINI - IN & OUTS
CCL1-MINI device has several ports of communication, digital outputs, relays, ethernet
port, LTHTTL port, debug port and GPRS antenna communication.
Digital outputs and inputs
The digital outputs are intended for different functions: control the LED beacon lights and
the antivandal doors.
The digital inputs are intended for different functions:
• Digital inputs 1: Digital inputs to detect the status of the CEE 3/7 sockets.
• Digital inputs 2: Digital inputs to detect the status of the surge protection (tamper).
Relays
They are used to control the contactors that energize the CEE 7/3 sockets.
LHTTL port
CCL1-MINI has a LHTTL port to communicate with different devices such as the Legic
RFID reader.
I2C port
Communication port intended to perform the debugging work.
