6 CHARGE POINT MASTER DEVICES
6.1 CCL1-MINI INTEGRATED EMBEDDED DEVICE
CCL1-MINI device is the master controller device of the Charge Point and the most
important element because it is specially designed to manage the Charge Point and all
the scenarios of charge transaction.

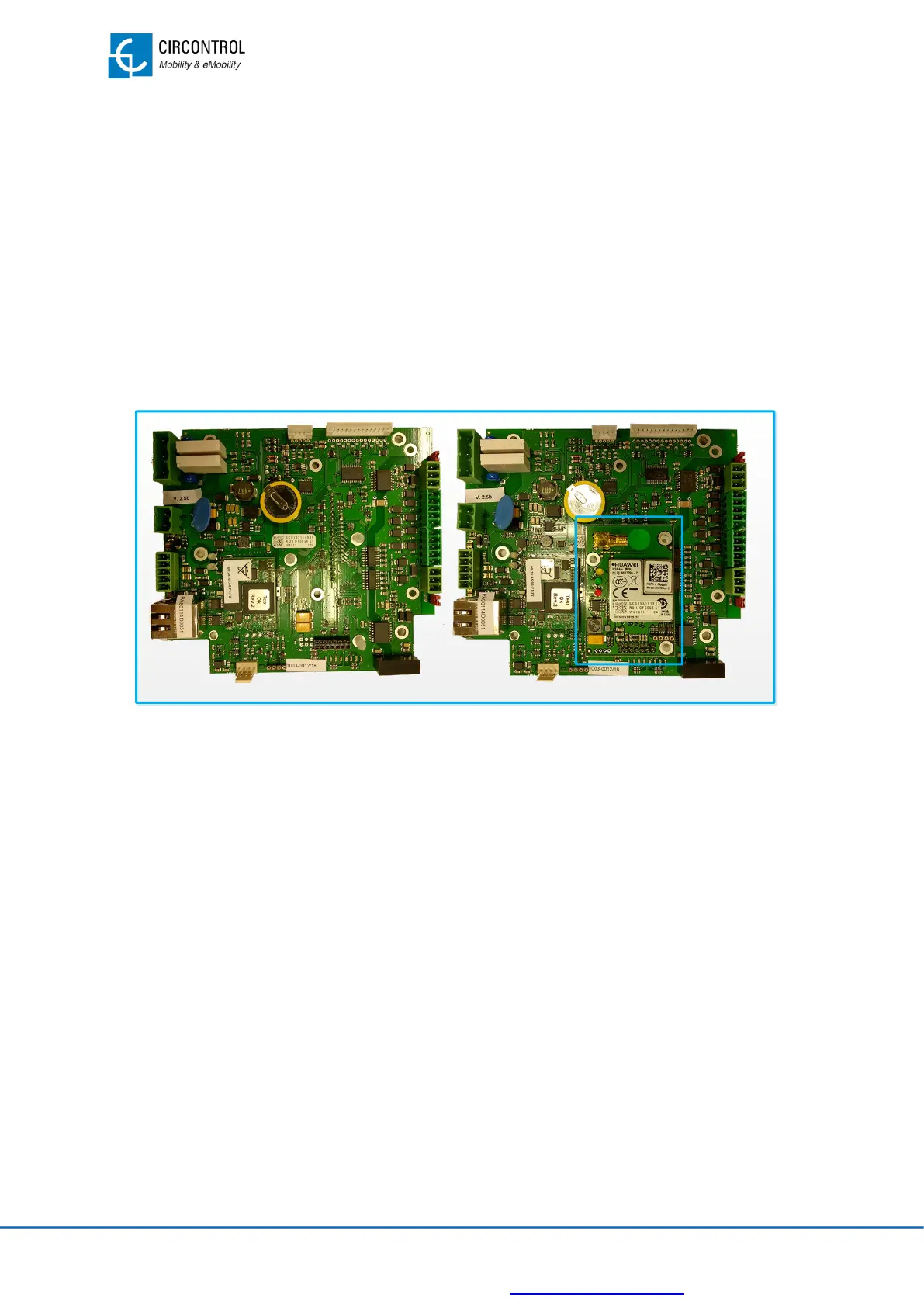

There are two different models of CCL1-MINI device:
• CCL1-MINI
• CCL1-MINI with integrated 3G/4G modem.
Embbeded Modem
The communication protocol of CCL1-MINI is RS-485, used for communications with
slave devices as RFID reader, energy meters or other devices using MODBUS RTU
protocol.
The ethernet port integrated on the device is used for communication between computer
and CCL1-MINI to extract the data stored.
