7.2 ENERGY METER (17)

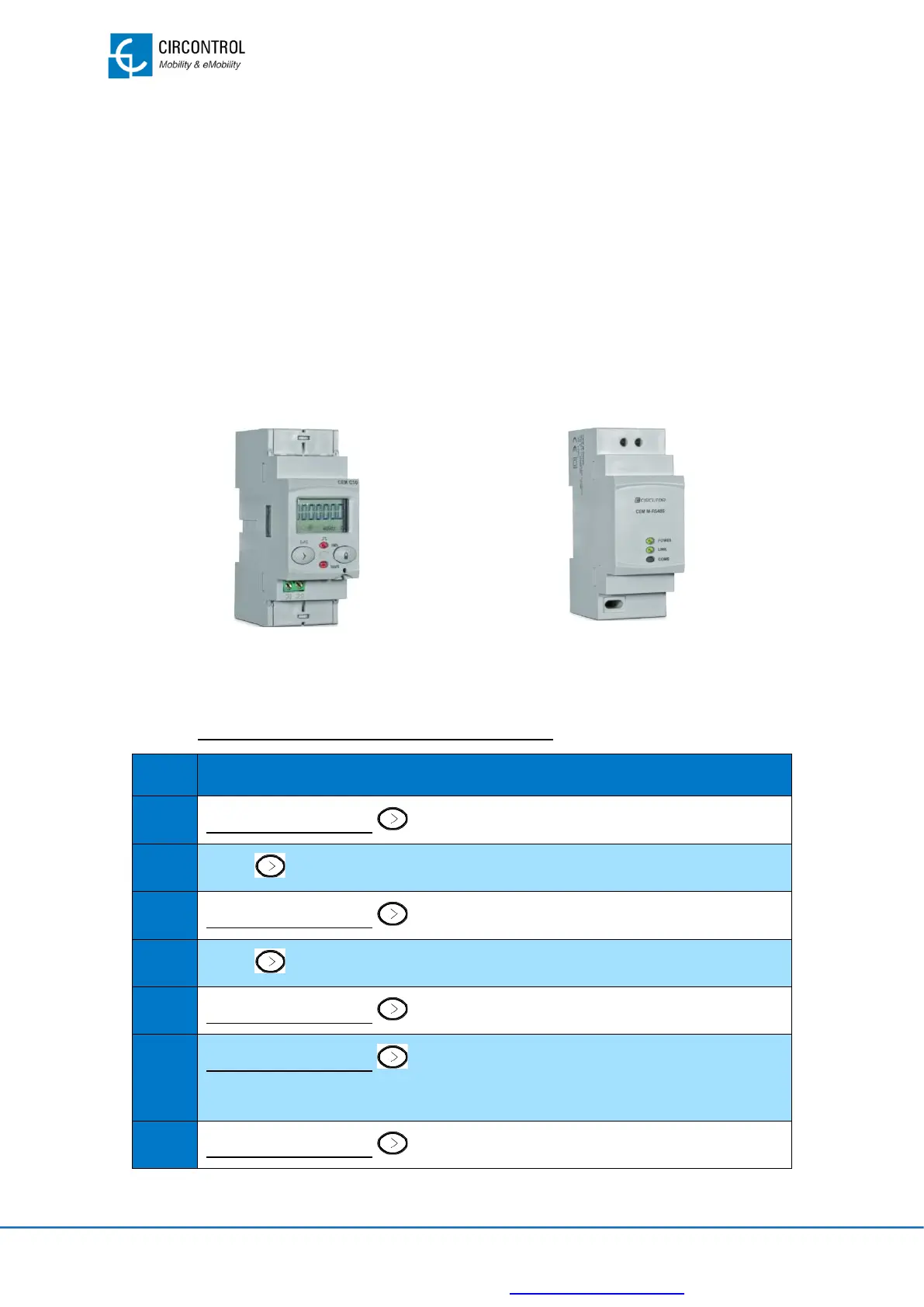

7.2.1 SINGLE-PHASE CEM-C10 – PHASE I
The CEM-C10 device measures, calculates and displays the main electrical parameters
on single-phase electrical wiring.
An external toroidal transformer is no needed to measure current parameters because it
is integrated in the same device.
The CEM-M-RS-485 device is a communication gateway between the CEM-C10 and the
local controller.
7.2.1.1 DEVICE CONFIGURATION PROCEDURE
STEP
ACTION
1
Press and hold button from CEM-C10 for at least 2 seconds.
2
Press several times until reach “SETUP”.
3
Press and hold button from CEM-C10 for at least 2 seconds.
4
Press two times to arrive to “ADDRESS”.
5
Press and hold button from CEM-C10 for at least 2 seconds to “0”00.
6
Press and hold button from CEM-C10 for at least 2 seconds.
The cursor moves from “0”00 to 0“0”0.
7
Press and hold button from CEM-C10 for at least 2 seconds.
CEM-C10
CEM-M-RS-485
