SERVICE MANUAL –Post eVolve Smart
9 - OPTIONAL DEVICES
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941 59
Web: www.circontrol.com – E-mail: circontrol@circontrol.com
Technical features
Supply voltage
230/400V
Maximum back-up fuse
125 A
Maximum discharge current
(8/20) (L-PE) – Imax
40 kA
Short circuit withstand - Isccr
25 kA
Nominal discharge current
(8/20) (L-PE) - In
20 kA
Response time (L-PE) – tA (L-PE)
25 ns
Voltage protection level (L-
PE) at In – Up (L-PE)
1,3 kV
Remote indication
Yes

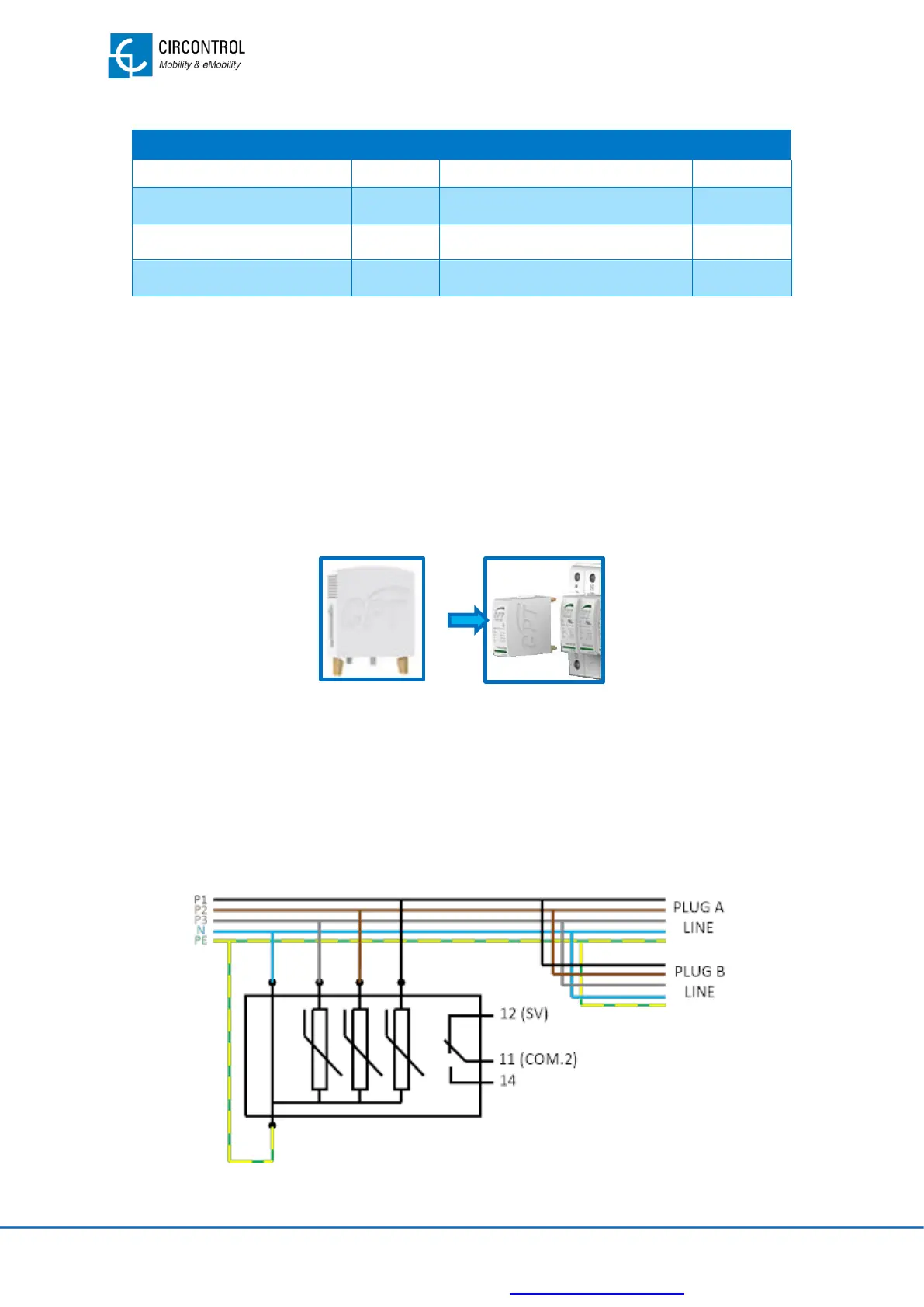

9.6.2 FUSE AS A SPAREPART
The fuses that are in the surge protection device can be replaced as a cartridge.
Fuse properties:
- Replaceable module
- Class 3
- Ph
- Rated current: 40 A (8/20)
- Rated voltage: 230 V
9.6.3 WIRING CONNECTION
The surge protections shall be wired in parallel to the main circuit in order to discharge
the induced voltage surge.
Following image shows a detailed schematic of the connections. Please, refer to “
TECHNICAL DATA” section for more details
