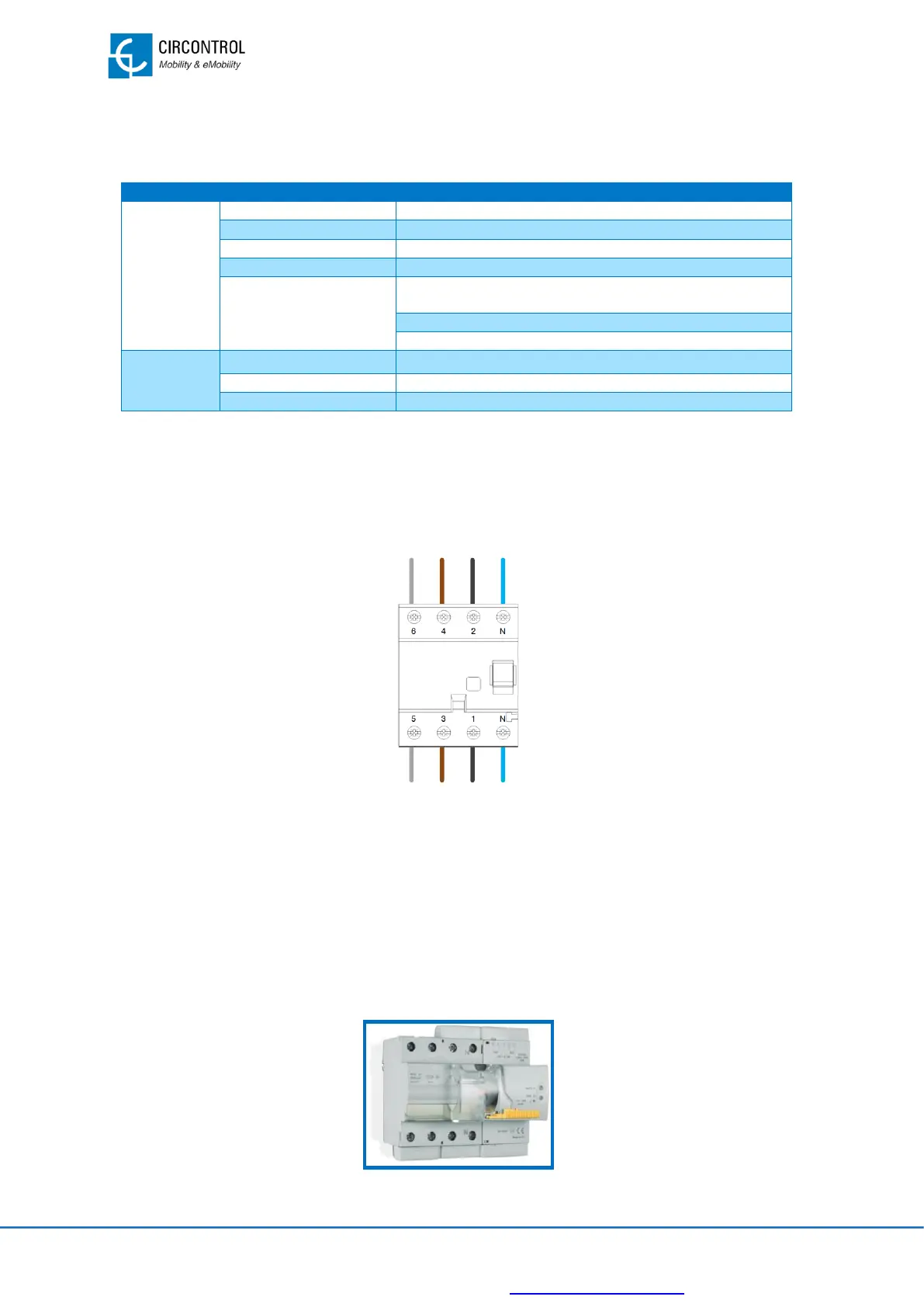

9.4.1 TECHNICAL CHARACTERISTICS
A table of technical specifications of the RCD type B is shown below:
RCD TYPE B
Residual
current
device
Type
B
Sensitivity
30 mA
Nominal current
40A
Num. poles
4
Protection against fault
currents
Sinusoidal alternating currents and pulsating residual
direct currents
Sinusoidal alternating currents, up to 1 kHz
Direct currents
Properties
Operating temperature
-25…+55 ºC
Dimensions
6,5 DIN modules
Weight
693g
9.4.2 WIRING CONNECTION
Following image shows a detailed schematic of the connections. Please, refer to “
TECHNICAL DATA” section for more details.
N
POWER SUPPLY
P3 P2 P1
N
P3 P2 P1
Q04.1 (MCB OF PLUG A/B)
9.5 RCD SELF-RECLOSING (19 + 20)
The RCD for each plug can be self-reclosing.
9.5.1 TYPE A
The RCD Type A of the Charge Point eVolve Smart can be self-reclosing by replacing
the default RCD Type A by a self-reclosing RCD Type A.
