7 CHARGE POINT SLAVE DEVICES
This section describes in detail how to setup and replace quickly any device that can be
found inside the Charge Point:
• MODE 3 (13)
• Energy meter (17)
• LCD DISPLAY (26)
• RFID READER (27)
7.1 MODE 3 CHARGE CONTROLLER (13)
Mode 3 DIN rail is the gateway of mode 3 communications and allows charging an
electrical vehicle as defined in IEC 61851-1.

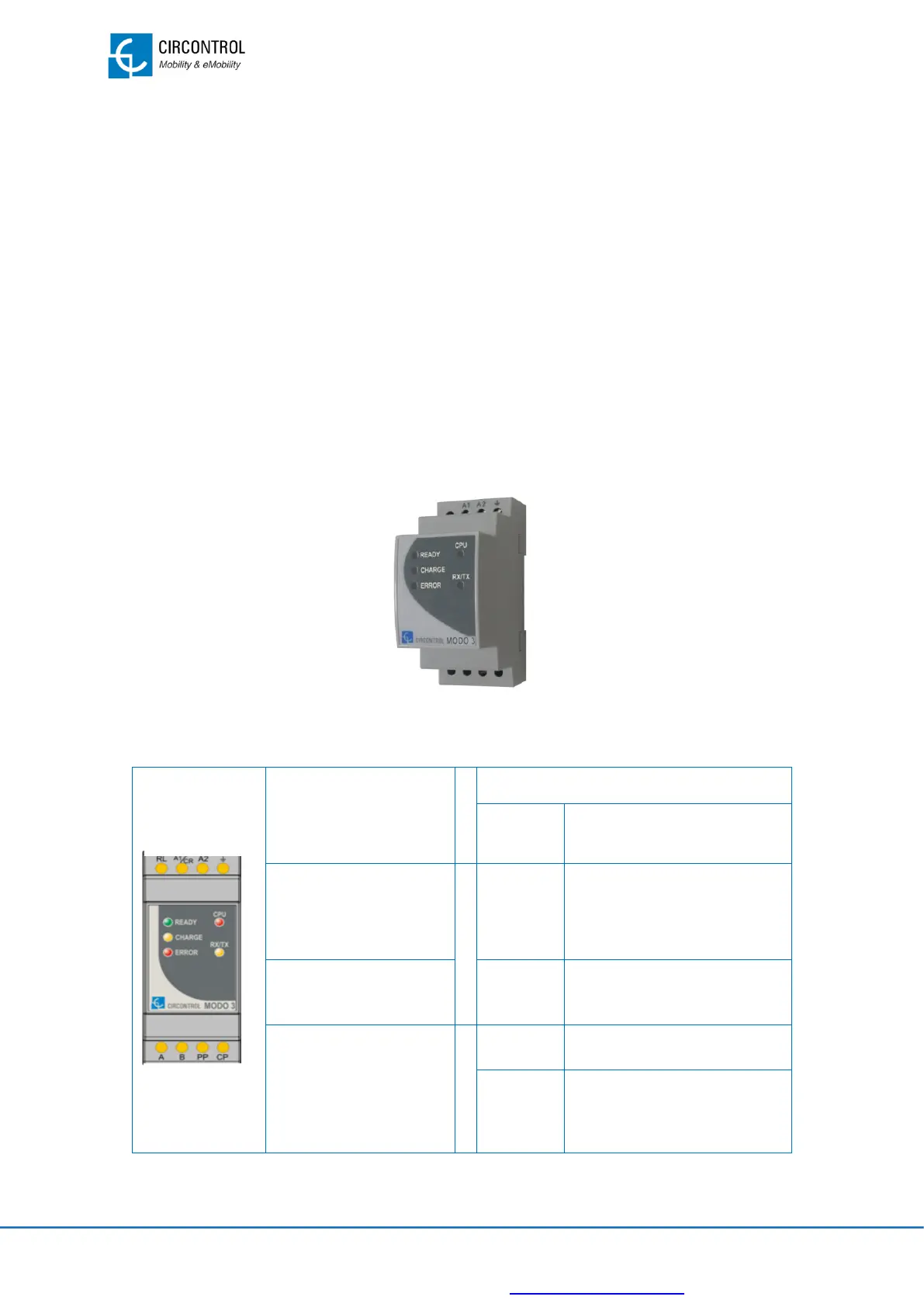

7.1.1 WIRING CONNECTION
BUS RS-485
1: Terminal (+)
2: Terminal (-)
LED INDICATORS
Ready
Electrical vehicle detected
VE connection
3: Proximity (PP)
4: Control Pilot (CP)
Charge
Power Contactor connected
and electric vehicle
charging
Contactor
5: Contactor coil
Error
Proximity error or E status
request
Power Supply
6: L1
7: Neutral
8: Ground
CPU
Device powered ON
RX/TX
RS-485 Communications
activity
